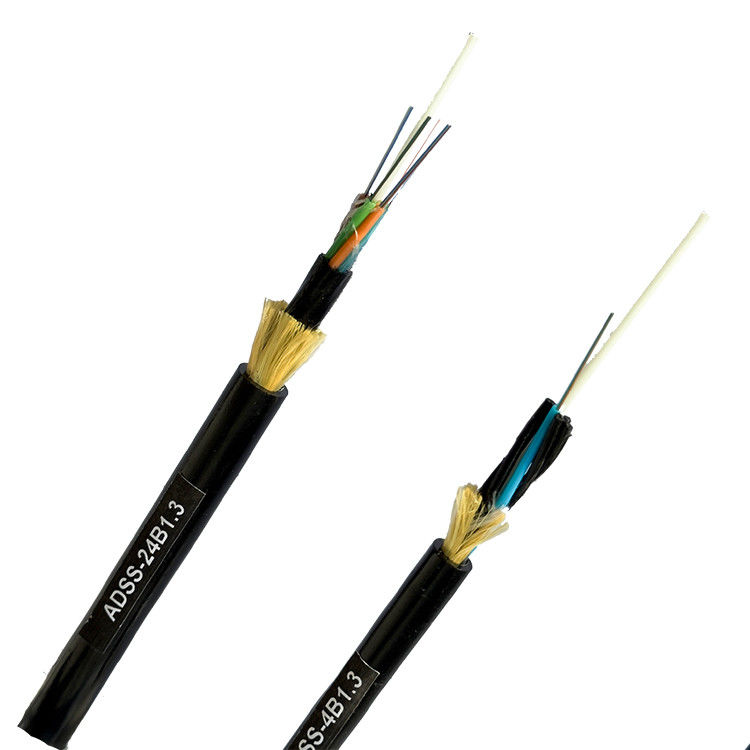

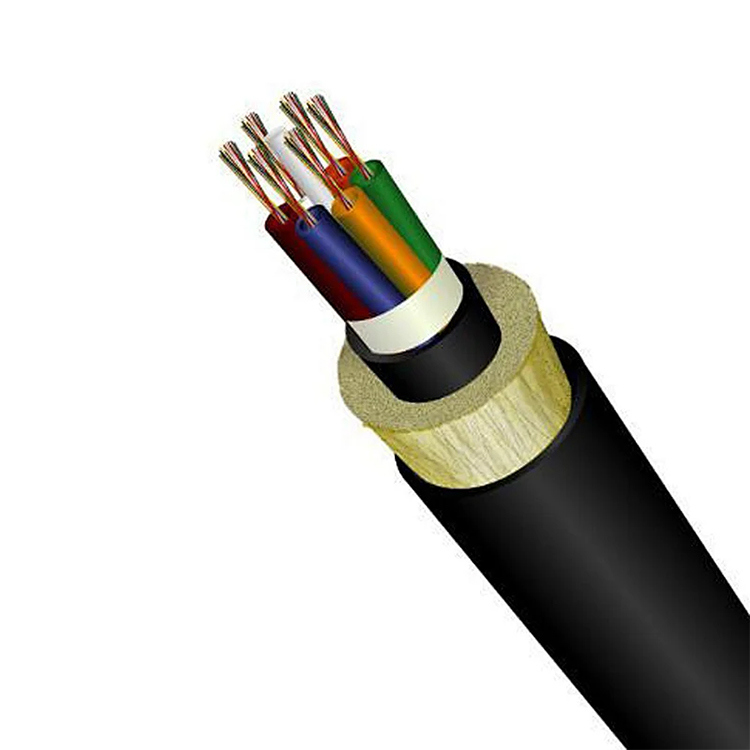

12 Core ADSS Fiber Optic Cable All-Dielectric with Single PE Jacket

Place of Origin	China
Brand Name	JQ
Certification	ISO
Model Number	ADSS
Minimum Order Quantity	2000M
Price	0.02 USD per Meter
Standard Packaging	Plywood Drum or Custimized
Delivery Time	3-10 days
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

12 Core ADSS Fiber Optic Cable-The Lightweight Single Jacket Solution

Product Overview

The 12 Core ADSS (All-Dielectric Self-Supporting) Cable is the industry standard for “last-mile” aerial connectivity and rural broadband expansion. Designed with a Single Jacket (SJ) construction, this cable is optimized for weight-sensitive utility poles and short-to-medium span lengths.

By eliminating metallic components, this 12-core cable is designed for environments where electromagnetic interference should be minimized, making it a safe choice for installation alongside high-voltage power distribution lines. Reinforced with premium Aramid Yarn, it provides the necessary tensile strength to maintain stability under wind and ice loads without the need for a messenger wire.

Performance Highlights

Optimized for 100m-150m Spans: Perfect for urban distribution and pole-to-pole distances typical in residential fiber rollouts.
Rapid Installation: The lightweight, small-diameter design reduces the mechanical load on poles and allows for faster deployment compared to heavy-armored cables.
All-Dielectric Safety: 100% non-metallic construction ensures no grounding is required, significantly reducing installation complexity and cost.
Reliable Moisture Protection: The central loose tube is filled with a specialized water-blocking jelly to protect the 12 fibers from long-term environmental degradation.
UV-Resistant HDPE Jacket: The outer sheath is formulated to withstand intense solar radiation and extreme temperature fluctuations.

Technical Specifications (12 Core)

Feature	Specification Details
Fiber Count	12 Cores
Fiber Type	G.652.D / G.657.A1 (Singlemode)
Cable Structure	Central Loose Tube (Single Jacket)
Strength Member	High-Modulus Aramid Yarn
Outer Jacket	High-Density Polyethylene (HDPE)
Cable Diameter	Approx. 8.5mm – 9.5mm
Standard Span	50m – 150m (Customizable)
Max Tensile Load	1000 N – 1500 N (Short Term)
Crush Resistance	1000 N / 100mm
Operating Temp	-40°C to +70°C

Key Application Scenarios

The 12 Core ADSS is a versatile “workhorse” for several network types:

FTTH Rural Broadband: The most cost-effective solution for bringing fiber to remote homes using existing power poles.
CCTV & Security Networks: Providing high-speed data backhaul for city-wide surveillance cameras mounted on utility infrastructure.
Campus & Enterprise Links: Connecting separate buildings within a facility via overhead lines.
Smart Grid Distribution: Linking sensors and automated switches on medium-voltage power lines.

Fiber Type	G652D
Fiber Count	12 Cores
Jacket Material	PE
Packing	2-4km/wooden Drum
Operating Temperature	-40°c +70°c
Span	100M-800M
Strength Member	FRP+Kevlar Aramid Yarn
Oem	YES
Structure	Stranded Loose Tube
