GYXTW 2–24 Core Armored Aerial/Duct Fiber Cable
2 4 6 8 16 24 Core Aerial Armored GYXTW Fiber Optic Cable Outdoor – 1km Price

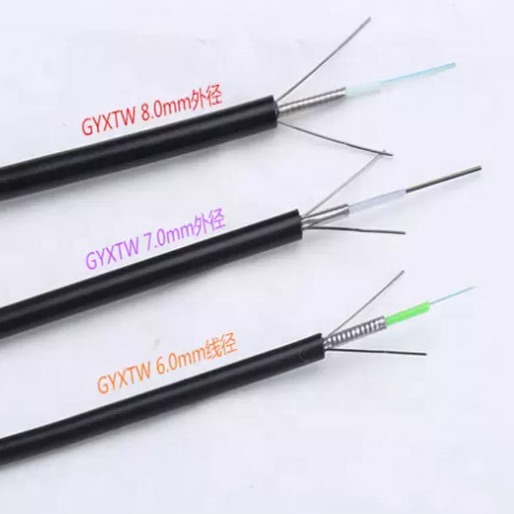

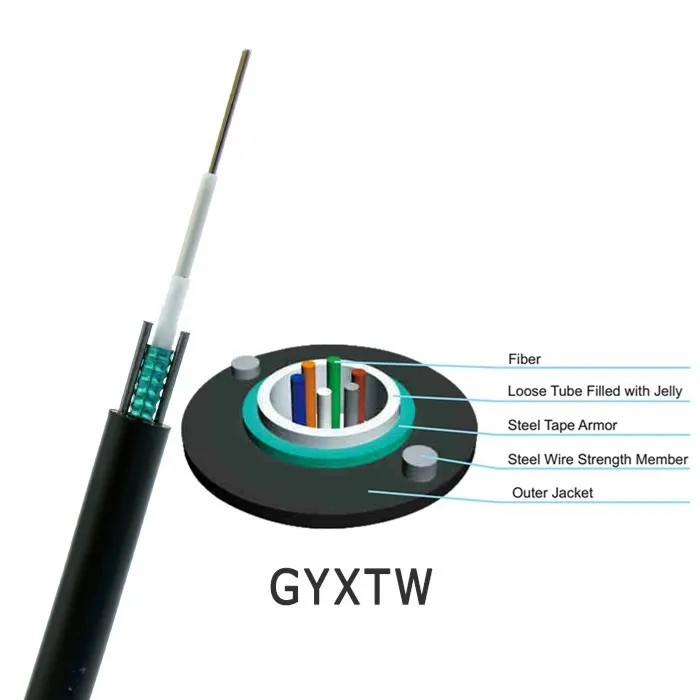

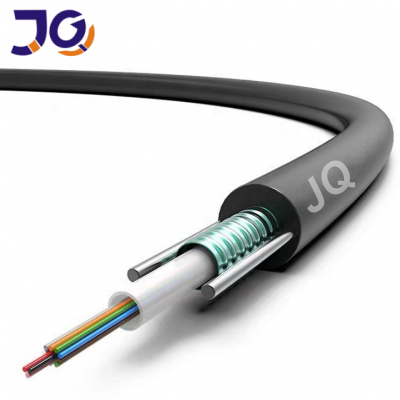

The GYXTW fiber optic cable features 250µm fibers housed in a high-modulus loose tube, filled with water-resistant gel for protection. A longitudinally applied steel tape (PSP) provides additional mechanical strength. Water-blocking materials are used between the steel strength members and the tube to enhance moisture resistance. Two parallel steel wires run along both sides for added tensile strength. The cable is finished with a durable PE outer jacket, making it ideal for outdoor aerial installations.
Product Features
- The loose tube offers excellent strength and resists temperature fluctuations.
- It provides high resistance to hydrolysis and ensures mechanical durability.
- Filled with a special gel, the tube effectively protects the optical fibers.
- The cable combines strong lateral pressure resistance with flexibility.
- Dual-layer chrome-plated PSP enhances the cable’s moisture barrier.
- Two parallel steel wires deliver strong tensile support.
- Compact design with lightweight structure ensures easy installation.
Optical Fibre Performance:
| Type | Attenuation(+20℃) | Bandwidth | Numerical aperture | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | ||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | — | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | — | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
Technical Performance
| Model | Fiber
count |
Tube count | Filling
rope count |
Weight (kg/km) |
Tension
Long/Short term |
| GYXS/GYXTW-2~12Xn | 2~12 | 82 | 600/1500 | 300/1000 | 10D/20D |
| GYXS/GYXTW-14~24Xn | 14~24 | 127 | |||
| GYXS/GYXTW-2~12Xn | 2~12 | 124 | 1000/3000 | ||
| GYXS/GYXTW-14~24Xn | 14~24 | 147 |
Environmental Conditions
- Storage and transportation temperature range: -40℃ to +70℃
Applications
- Suitable for outdoor duct and aerial (overhead) installations.
Packaging Information
- Available in 4km or 5km per reel
- Color box and OEM packaging supported
- 20-foot container holds up to 400km
- 40-foot container holds up to 800km
FAQ
- Are you a manufacturer?
Yes, we are a factory based in Guangzhou, China. You’re welcome to visit us anytime. - What is the minimum order quantity?
Our MOQ is 1KM. Trial orders for new projects are warmly supported. - Can I request a sample?
Of course! We offer free samples — you only cover the shipping cost. - What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal. - How long is the delivery time?
Typically 3–7 working days, depending on the order quantity. - Do you offer customization and logo printing?
Yes, OEM & ODM services are available. Feel free to reach out with your requirements.
Specifications
| Fiber Type | G652D, OM1, G657, OM4, OM5 |
| Oem | Available |
| Application | Aerial/duct/overhead |
| Number Of Conductors | 24 |
| Structure | Loose Tube Stranded |
| Operating Temperature | -40 ~ +60 C |
| Outsheath | PE / LSZH / OFNP |
| Sheath Color | Black |
| Test Standards | IEC60794-1 |
| Factory | Yes |
| Water Blocking System | Water Blocking Tape |
| Fiber Diameter | 9 Microns |
| Bend Radius | 20 Times Cable Diameter |
| Sheath Material | LSZH |
| Jacket | PE/PVC/LSZH |
| Fiber Per Tube | 4/6/8/12/F |
| Gallus | MDPE |
| Fibe Type | Single Mode And Multi Mode |
| Sample | Acceptable |
| Tube | Central Loose Tube |
| Rango De Temperatura | -40+70°C |
Basic Information
| Place of Origin | Guangzhou China |
| Brand Name | Jiqian/Customize |
| Certification | ISO9001 ROHS CE-EMC FCC SDOC |
| Model Number | GYXTW |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 2-4day |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100km per 2 day |
