2-24 Core GYXTW Central Tube Fiber Optic Cable with 24m Distance and ISO45001 Certification
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | GYXTW |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.068/M ≥5000m $0.064/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |

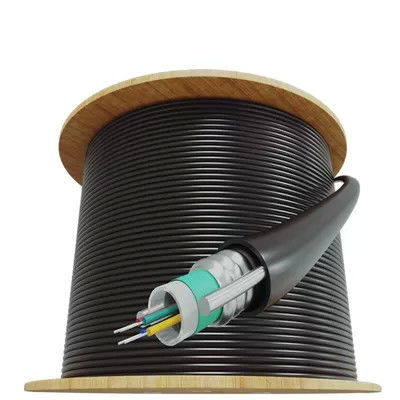

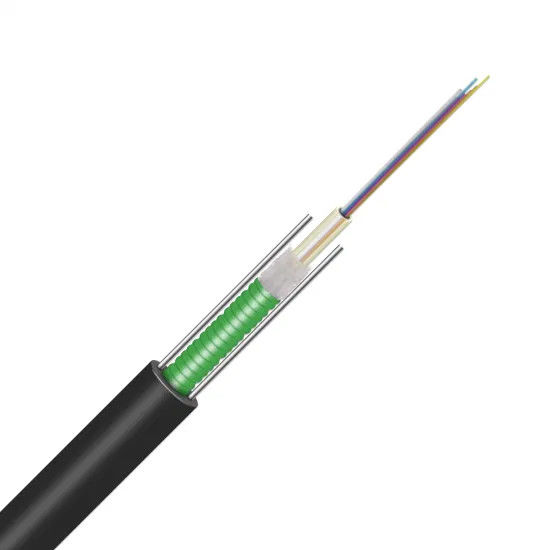

GYXTW (metal reinforcing member, steel-polyethylene bonded jacket with steel wire center bundle tube type fully filled outdoor fiber optic cable for communication), the structure of the cable is a loose tube placed in the center of the cable, the single-mode or multi-mode optical fiber into a high modulus plastic made of water-resistant compound filled loose tube. The outer part of the pine tube is filled with a water-blocking compound. The cable core is flanked by a polyethylene jacket with two parallel steel wires as reinforcements.
Product Features:
– Good mechanical properties and temperature characteristics
– The loose tube material itself has good hydrolysis resistance and high strength
– The tube is filled with special oil paste, which provides critical protection for optical fiber
– Good compression resistance and flexibility
– Double-sided plastic coated steel strip (PSP) improves the moisture permeability of the fiber optic cable
– Two parallel steel wires ensure the tensile strength of the cable
– Small diameter, light weight and easy to lay
MainTechnical Parameters:
- Cable Parameter
| Item | Specification | |
| Fiber Count | 1-24 | |
| Color coated fiber | OD | 0.25±0.015mm |
| Color | Blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, turquoise | |
| Loose Tube | OD | 1.8±0.05mm |
| Material | PBT | |
| Stiffener | OD | 0.7mm±0.1mm |
| Material | Steel wire | |
| Outer Sheath | OD | 8.0±0.3mm |
| Material | PE | |
| Color | Black | |
- Optical Characteristics
| Fiber Type | Attenuation (+20℃) | Band width | Numerical Aperture | Cable cutoff wavelength | ||||
| @850 nm | @1300 nm | @1310 nm | @1550 nm | @850 nm | @1300 nm | |||
| G.652 | — | — | ≤0.36dB/km | ≤0.22dB/km | — | — | — | ≤1260 nm |
| G.655 | — | — | ≤0.40dB/km | ≤0.23dB/km | — | — | — | ≤1450 nm |
| 50/125 µm | ≤3.3dB/km | ≤1.2dB/km | — | ≥500MHz·km | ≥500MHz·km | 0.200±0.015NA | — | |
| 625/125 µm | ≤3.5dB/km | ≤1.2dB/km | — | ≥200MHz·km | ≥500MHz·km | 0.275±0.015NA | — | |
| Package Detail | 2KM/Roll Or 3KM/Roll |
|---|---|
| Number Of Fiber | 2-24 |
| Delivery Time | 3-7 Days |
| Payment Terms | L/C, T/T, Western Union |
| Place Of Origin | Shandong ,China |
| Brand Name | JQ |
| Certification | ISO9001,ISO45001,ISO14001 |
| Model Number | GYTXW-36B1 |
