Quality 24 Core OPGW Optical Fibre Cable Aerial Overvoltage Composite Ground Wire SM tower networking construction factory

24 Core OPGW Optical Fibre Cable Aerial Overvoltage Composite Ground Wire SM tower networking construction

Brand Name	JQ
Model Number	OPGW-48B1-50 [58;11.5]
Minimum Order Quantity	2000M
Price	EXW ≥2000m $0.85/M ≥5000m $0.82/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 day
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

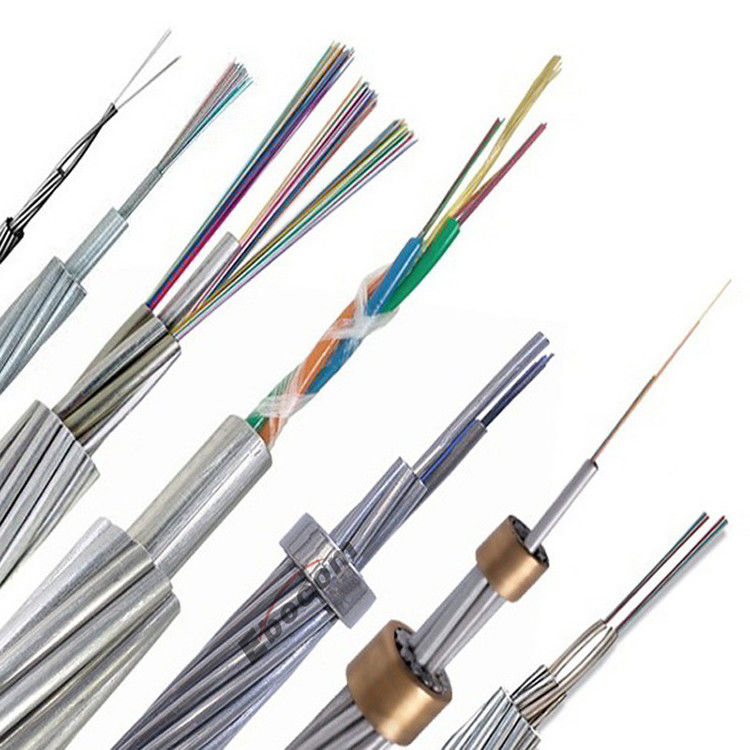

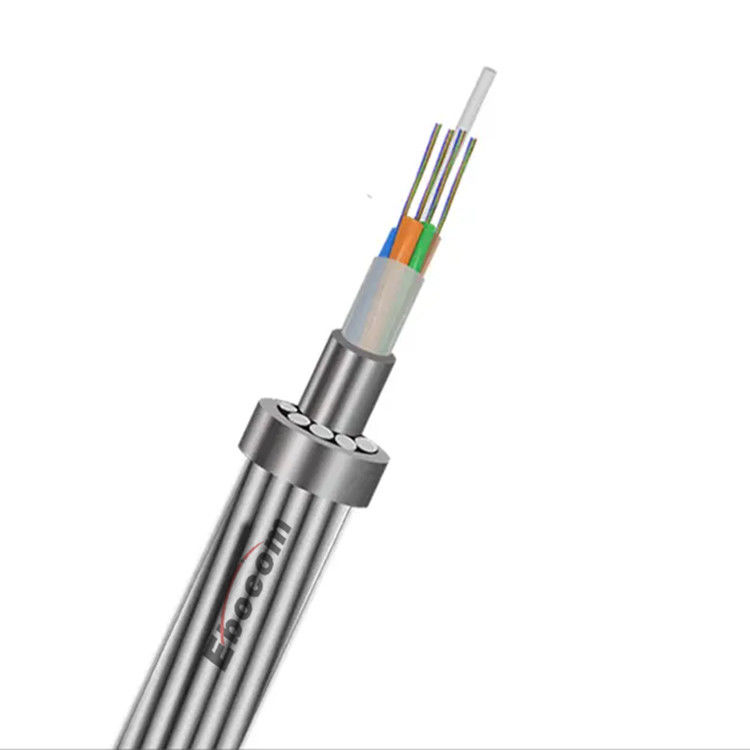

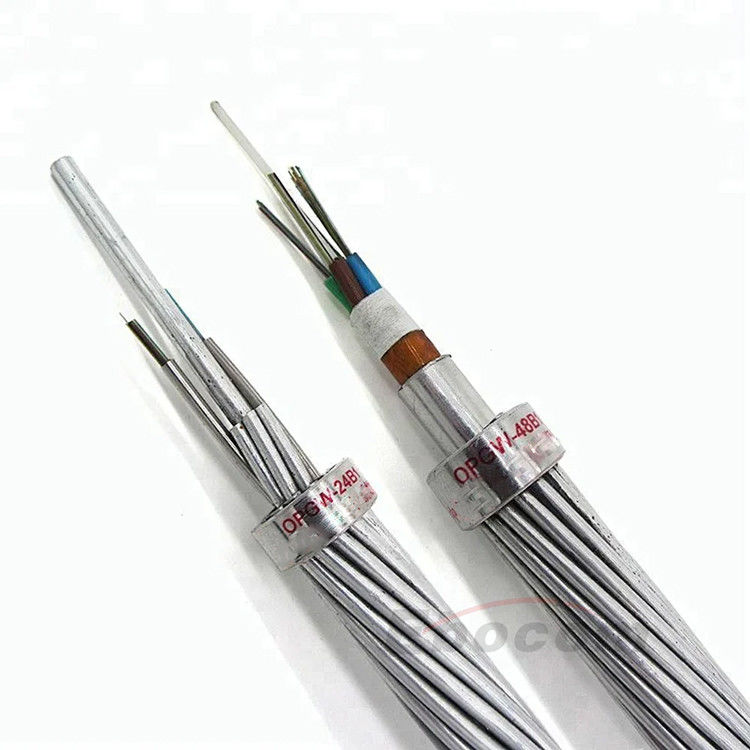

OPGW cables typically come in two configurations. Center-tube OPGW cables allow for maximum excess fiber length in the smallest steel pipe. The diameter of the stainless steel tube is larger than that of the ACSR wire and aluminum alloy wire. The central position of OPGW cable stranding structure is stainless steel pipe.

OPGW stranded cable can obtain two extra length; The diameter of the stainless steel tube is the same as that of the aluminum alloy wire.

Product characteristics:

Stainless steel tubes filled with hydrophobic gel provide fiber protection and support
Good tensile properties
Small diameter, light weight, low extra load on the tower
The appropriate fiber excess length of the optical unit is easy to make

Specification:

Overhead ground wire composite optical cable OPGW
Material	G652D fiber core,AS,stainless steel
Specifications	OPGW-24B1-100
Product skin	stainless steel tube + aluminum clad steel wire
Optical cable diameter	12.5 mm (tolerance subject to the confirmed datasheet)
Attenuation coefficient:	1310nm≤0.36dB/km；1550nm≤0.22dB/km
Execution standard	GB / T 7424-87, IEC 1232, DIN48200-T8 standard
Installation temperature	-10℃–+40℃
Operating temperature	-40℃–+60℃
UTS	66.7KN
RTS	63.4KN
Minimum bending radius	185mm during operation; Laying: 309mm
Voltage grade of used line	35kV and above
