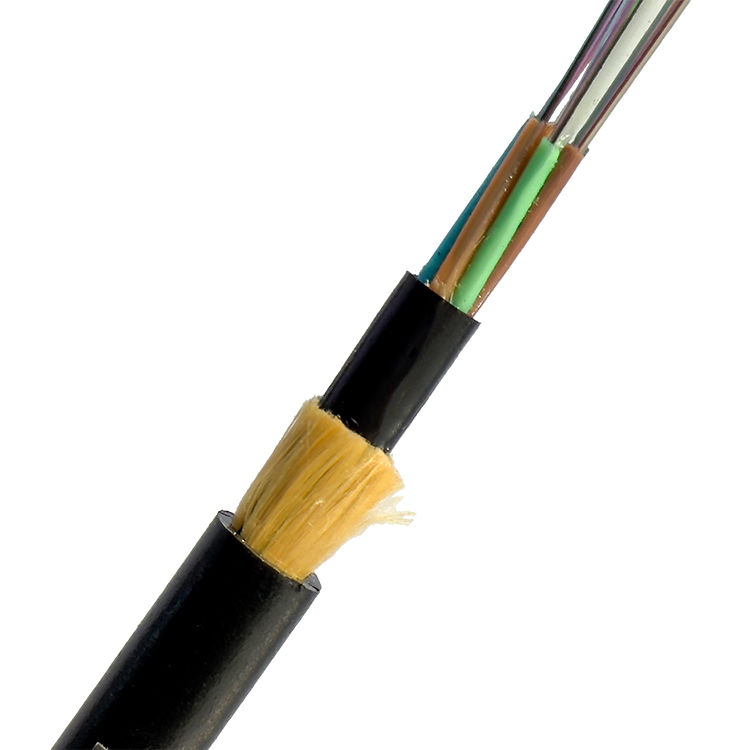

ADSS 24 Core Fiber Optic Cable Double Jacket All-Dielectric Self-Supporting Cable for 200m Span
| Place of Origin | China |
| Brand Name | JQ |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 2000M |
| Price | 0.02 USD per Meter |
| Standard Packaging | Plywood Drum or Custimized |
| Delivery Time | 3-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Description
The JQ ADSS 24 Core Double Jacket Fiber Optic Cable is an all-dielectric self-supporting (ADSS) design specially developed for medium-span aerial installations up to 200 meters.
This cable uses 100% pure aramid yarn (no polyester blend) as the main strength member, providing superior tensile strength, excellent sag performance, and long-term stability under harsh outdoor conditions.
With a double PE jacket structure, it offers enhanced protection against UV radiation, moisture, and mechanical stress, making it ideal for power line communication and outdoor telecom networks.
The outer diameter can be customized based on span length, installation conditions, and fiber count requirements.
JQ ensures every ADSS cable meets strict testing standards — from raw material inspection to final product testing — Designed service life is subject to installation, operating environment, maintenance and confirmed contract terms..
Key Features
-
24 Core Fiber Design: Supports high-capacity transmission for backbone and access networks.
-
Double Jacket Protection: Inner and outer PE sheaths provide excellent mechanical strength and UV resistance.
-
200m Span Capability: Stable and safe performance for medium-span aerial installations.
-
100% Aramid Yarn Strength Member: True aramid reinforcement (not mixed with polyester) for superior tensile performance.
-
All-Dielectric Structure: No metal, no grounding required, safe for installation along power lines.
-
Customizable Outer Diameter: Tailored to project needs for different span requirements.
-
Weatherproof & Durable: Resistant to lightning, temperature changes, and environmental stress.
Applications
-
Power transmission communication networks
-
Aerial fiber installations along utility poles
-
Medium-span outdoor telecommunication lines (up to 200m)
-
Smart grid and industrial communication networks
-
Rural broadband and FTTx projects
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | ITU-T G.652D / G.657A1 / G.657A2 Single Mode |
| Fiber Count | 24 cores |

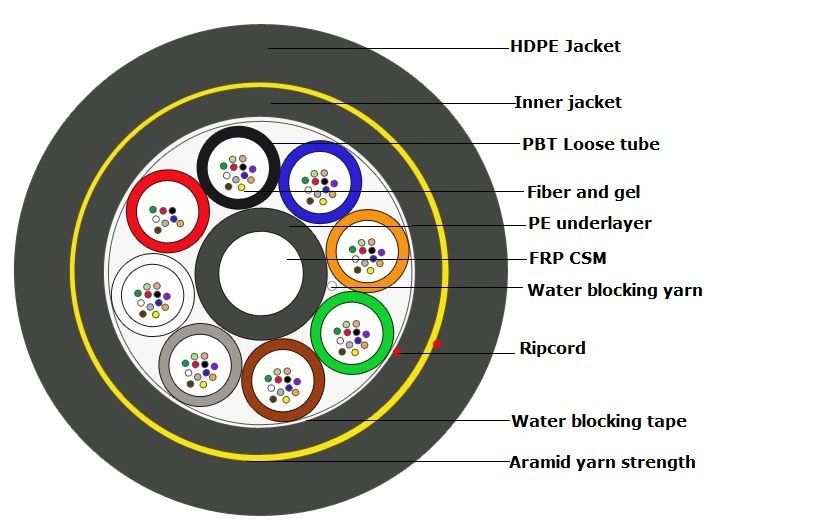

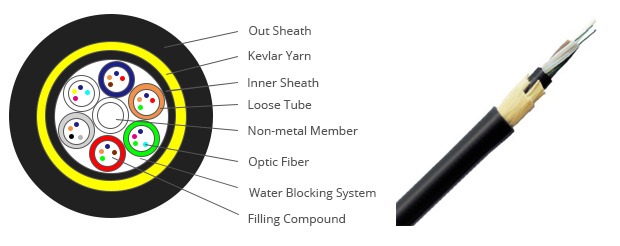

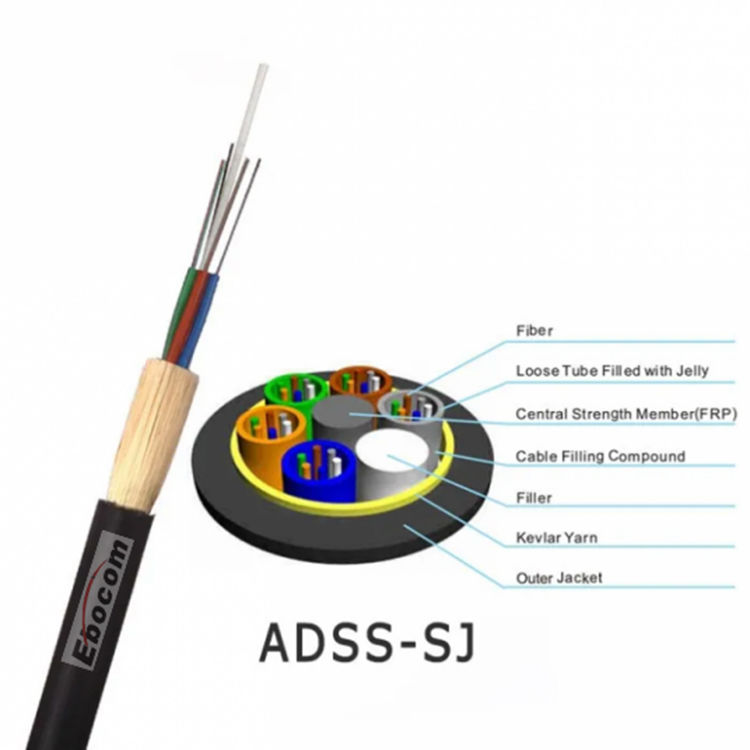

| Cable Structure | Stranded loose tube, all-dielectric design |
| Strength Member | 100% pure aramid yarn |
| Outer Diameter | Customizable (based on span requirement) |
| Jacket Structure | Double-layer PE (inner + outer) |
| Installation Span | Up to 200 meters |
| Temperature Range | -40°C to +70°C |
| Standards | IEC 60794 / ITU-T G.652D / G.657A |
| Fiber Type | G652D |
| Fiber Count | 24 Cores |
| Jacket Material | PE |
| Packing | 2-4km/wooden Drum |
| Operating Temperature | -40°c +70°c |
| Span | 100M |
| Strength Member | FRP+Kevlar Aramid Yarn |
| Oem | YES |
| Structure | Stranded Loose Tube |
