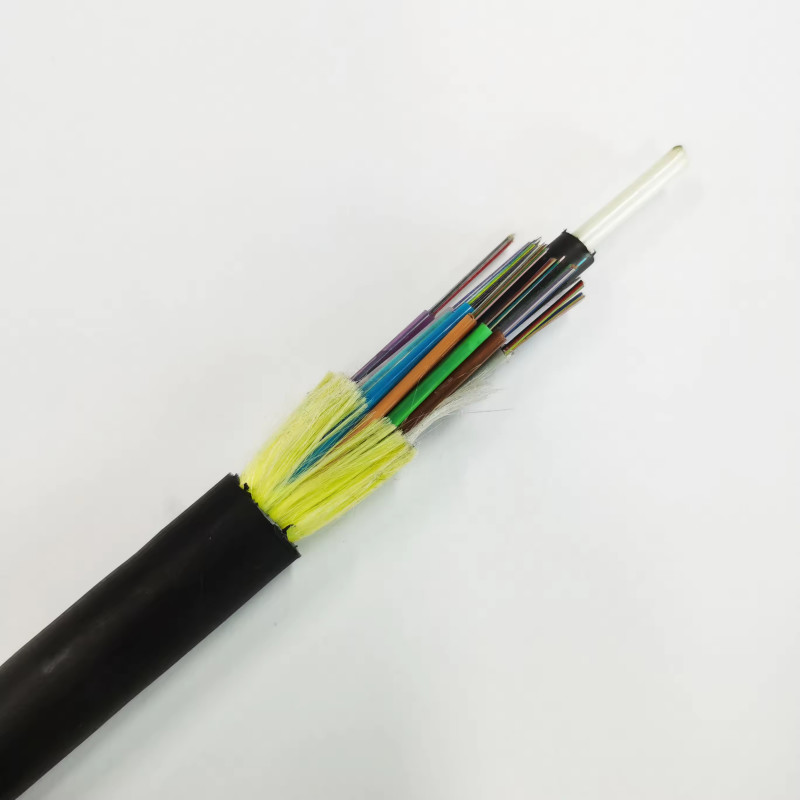

ADSS 96-Core Single-Jacket Self-Supporting Aerial Cable
ADSS Aerial Fiber Optic Cable Single Mode FRP Loose Tube Long Span Outdoor Communication Cable
Product Features

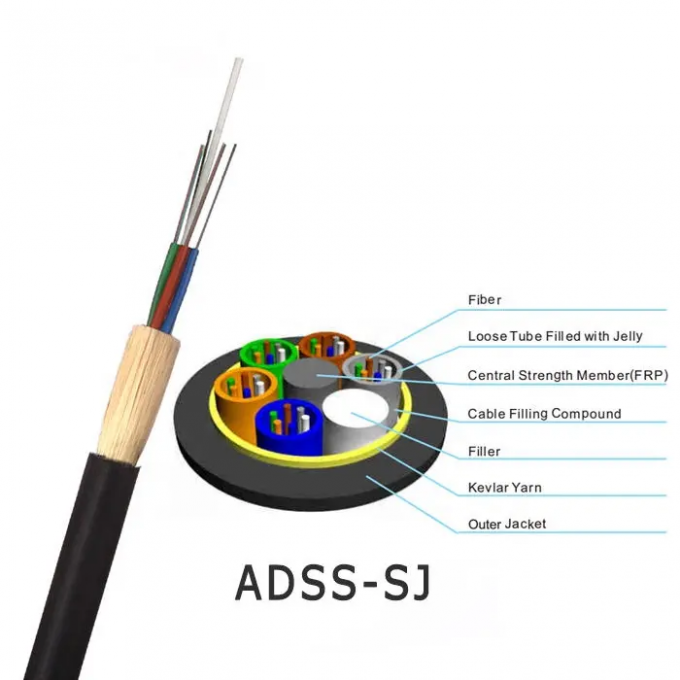

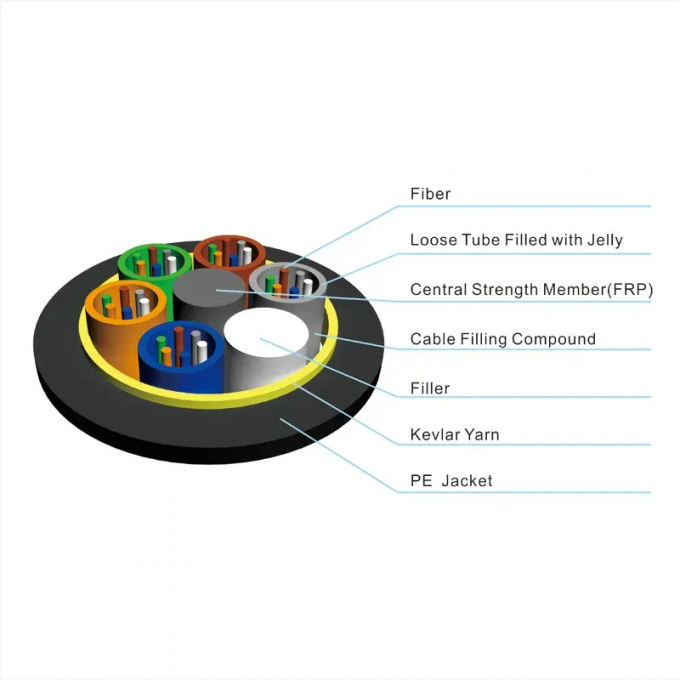

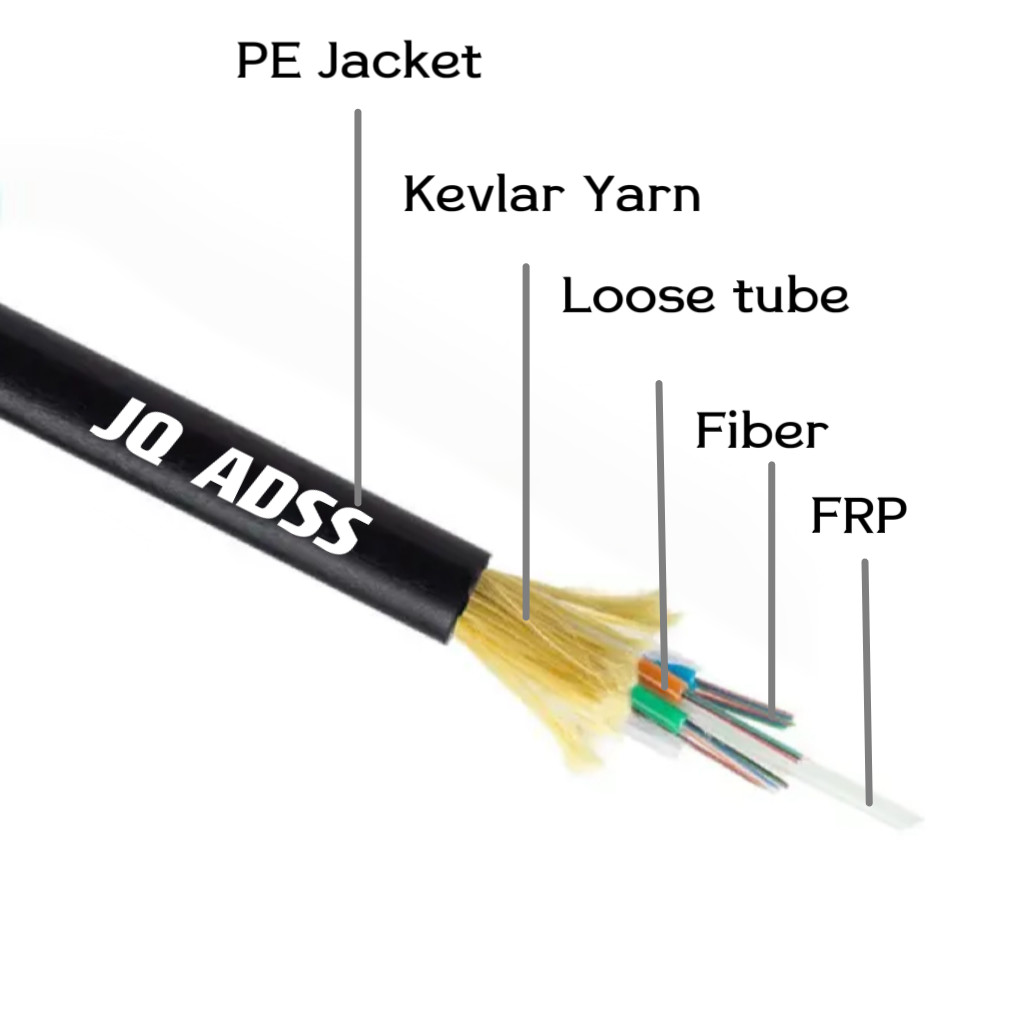

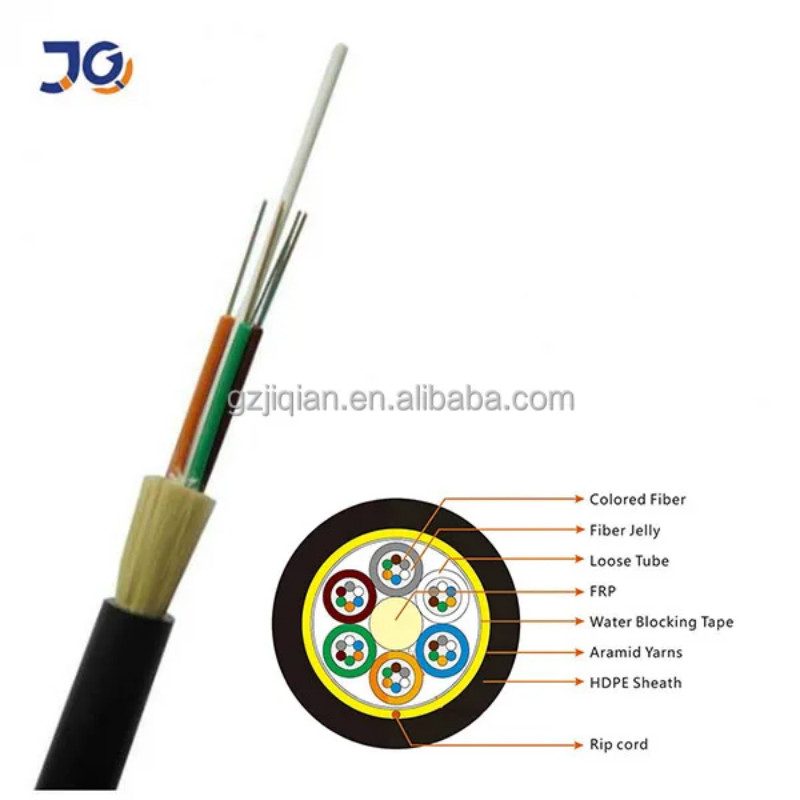

• Loose tube stranded structure with FRP central strength member
• Aramid yarn reinforcement for high tensile strength
• Lightweight and small diameter design reduces wind and ice load
• Water-resistant filling compound for reliable fiber protection
• PE or AT outer sheath for strong weather and UV resistance
Application Scenarios
• Self-supporting aerial telecom networks
• High-voltage power line communication systems
• Long-distance backbone and LAN networks
• Outdoor broadband and infrastructure projects
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 13 10nm | μm | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | um | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | μm | λcc≤1260 | |
| 9 | Attenuation(max.) | 1550nm | dB/km | ≤0.36 |
| 1310nm | dB/km | <0.22 | ||
FAQ
1. What is ADSS Fiber Optic Cable used for
ADSS cable is designed for aerial installation on power lines and communication networks without the need for metal support.
2. How many fiber cores are available
The cable typically supports 2 to 96 fiber cores depending on network capacity requirements.
3. Is ADSS cable suitable for outdoor environments
Yes it is designed with UV resistant and weatherproof materials for long term outdoor use.
4. What installation method does ADSS cable support
It is self supporting and can be installed directly on poles or towers without a messenger wire.
5. What fiber types are available
Common options include G652D and G657A1 single mode optical fibers.
Specifications
| Cable Diameter | 9.7mm、10mm |
| Jacket Color | Black,White,as Request |
| Operating Temperature | -40℃~+70℃ |
| Application | Overhead/Aerial ,Pipe/Duct Laying |
| Cable Length | 1km/2km/3km/4km/5km |
| Fiber Count | 2-144 CORES |
| Storage Temperature | -40℃~+85℃ |
| Span | 50/100/200/300/400m |
| Highlight | 96 core ADSS fiber optic cable , all dielectric self supporting aerial cable , outdoor single jacket optical cable |
Basic Information
| Place of Origin | Guangzhou China |
| Brand Name | JQ/OEM/Customize |
| Certification | ROHS/ISO/CE/FCC |
| Model Number | ADSS-4C/12FC/24C/48C/96C/144C |
Payment & Shipping Terms
| Packaging Details | Wooden package |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union,Alipay |
| Supply Ability | 4500KM Per Month |
