ASU 12 Core Fiber Optic Cable 80m Span

Place of Origin	China
Brand Name	JQ
Certification	ISO
Model Number	ASU
Minimum Order Quantity	2000 meter
Price	USD 0.08~0.1, Meter
Standard Packaging	Bag, Carton or Custimized
Delivery Time	7-10 days
Payment Terms	T/T,L/C,Western Union,
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

.pd-container {
font-family: ‘Segoe UI’, Tahoma, Geneva, Verdana, sans-serif;
color: #333;
line-height: 1.5;
max-width: 100%;
}

.pd-heading {
font-size: 24px !important;
font-weight: 600;
color: #1a365d;
margin-bottom: 20px;
padding-bottom: 8px;
border-bottom: 2px solid #e2e8f0;
}

.pd-subheading {
font-size: 18px !important;
font-weight: 600;
color: #2d3748;
margin: 25px 0 15px 0;
}

.pd-content {
font-size: 14px !important;
margin-bottom: 16px;
}

.pd-feature-list {
font-size: 14px !important;
margin: 15px 0;
padding-left: 20px;
}

.pd-feature-list li {
margin-bottom: 8px;
}

.pd-specs-table {
width: 100%;
border-collapse: collapse;
margin: 20px 0;
font-size: 14px !important;
}

.pd-specs-table th {
background-color: #f7fafc;
border: 1px solid #e2e8f0;
padding: 12px;
text-align: left;
font-weight: 600;
color: #2d3748;
}

.pd-specs-table td {
border: 1px solid #e2e8f0;
padding: 12px;
}

.pd-image {
max-width: 100%;
height: auto;
margin: 20px 0;
border-radius: 4px;
box-shadow: 0 2px 4px rgba(0,0,0,0.1);
}

.pd-highlight {
background-color: #ebf8ff;
border-left: 4px solid #4299e1;
padding: 16px;
margin: 20px 0;
font-size: 14px !important;
}

@media (max-width: 768px) {
.pd-specs-table {
font-size: 13px !important;
}

.pd-specs-table th,
.pd-specs-table td {
padding: 8px;
}
}

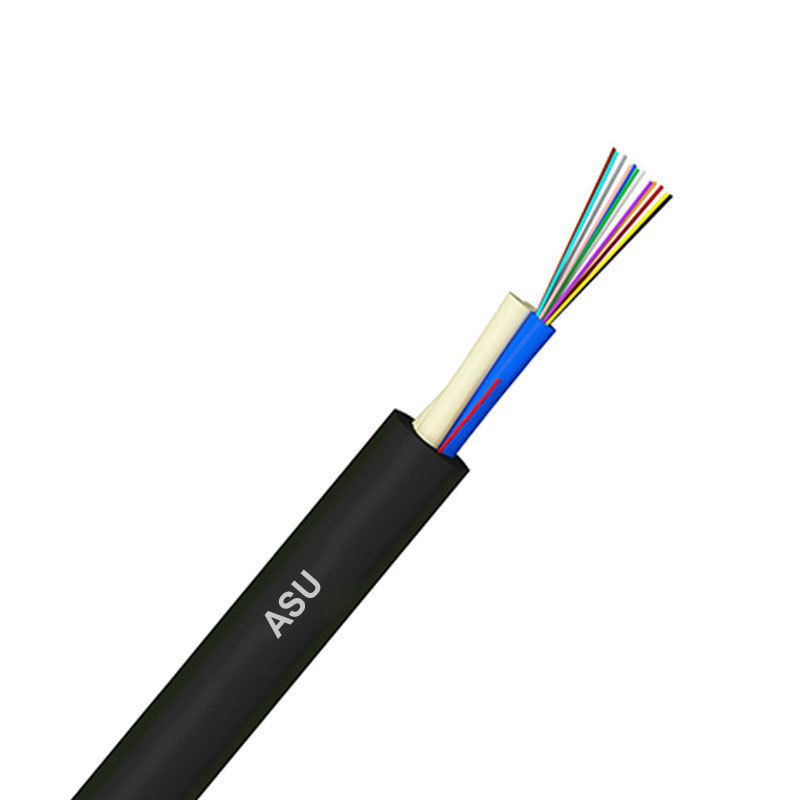

ASU 12 Core Fiber Optic Cable 80m Span

Product Overview

The ASU 12 Core Fiber Optic Cable (80m Span) is a compact, ultra-lightweight, and completely non-metallic self-supporting aerial cable engineered specifically for medium-short span outdoor broadband networks. Built around a unicore (single loose tube) structure, it houses 12 single-mode G.652.D fiber cores inside a jelly-filled central chamber, providing reliable water-blocking protection and stable optical performance.

Specifically calibrated for an 80-meter aerial span, this ASU cable is reinforced with two parallel, high-tensile Fiber Reinforced Plastic (FRP) rods embedded directly within its UV-resistant polyethylene (PE) jacket. Its 100% dielectric composition ensures total immunity to lightning strikes and high-voltage electrical tracking, making it an ideal, cost-effective solution for aerial pole-to-pole deployments without the need for additional messenger wires.

Primary Application Scenarios

FTTH Rural & Suburban Aerial Backbones: Connecting distribution points across 80-meter pole gaps in residential and semi-rural FTTH rollout projects.
Power Line Co-location: Safely hung on high-voltage power distribution poles and light poles without risk of electrical induction, grounding issues, or lightning damage.
Campus & Industrial Aerial Interconnects: Overhead data links bridging adjacent factory buildings, office complexes, or educational facilities.
Outdoor CCTV & Smart City Surveillance: Overhead signal links powering smart city traffic sensors, surveillance cameras, and Wi-Fi access points.

Technical Specifications

Cable Feature	Technical Specification Details
Cable Model	ASU 12 Core 80M Span Fiber Optic Cable
Fiber Count	12 Cores
Fiber Type	Singlemode G.652.D (Low Attenuation)

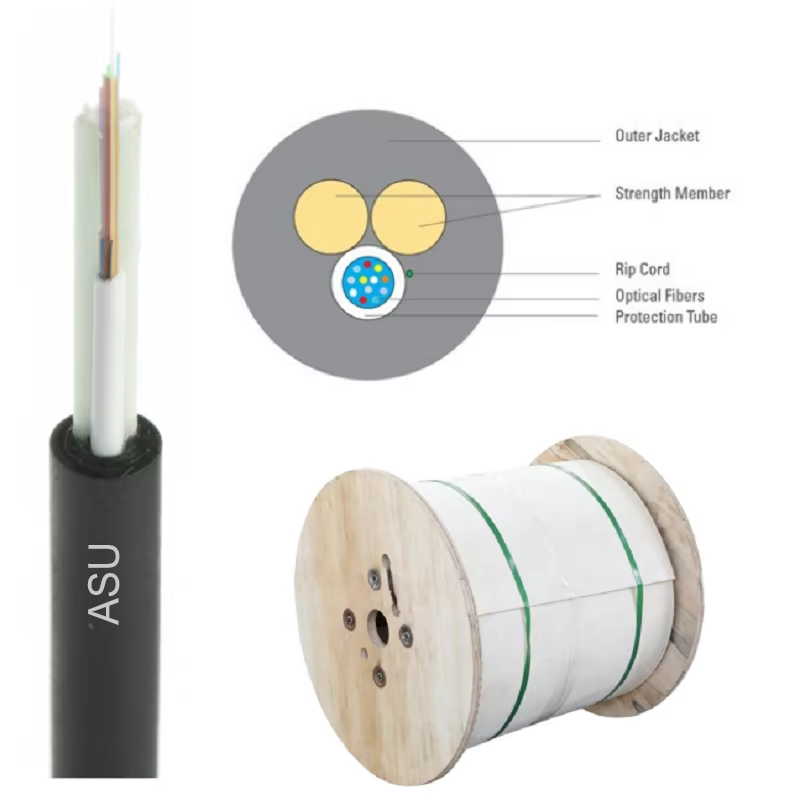

Structure	Unicore / Central Loose Tube (Jelly-Filled)
Target Aerial Span	80 Meters (Under standard wind/ice load conditions)
Strength Member	Customized Dual Parallel FRP (Fiber Reinforced Plastic) Rods
Jacket Material	High-Density Polyethylene (HDPE) / UV-Resistant
Cable Outer Diameter	Approx. 6.8mm – 7.5mm
Max Tensile Strength	Short term: 1500 N \| Long term: 600 N
Crush Resistance	Short term: 1000 N/100mm \| Long term: 300 N/100mm
Operating Temperature	-40°C to +70°C

Key Performance Advantages

Engineered for 80m Spans: Thickened parallel FRP rods provide the exact tensile strength needed to maintain low sag across 80-meter gaps under severe wind and temperature shifts.
100% Dielectric & Lightning-Proof: Fully non-metallic construction eliminates grounding procedures and protects the network against lightning strikes and high-voltage interference.
Compact Unicore Construction: Small outer profile minimizes wind load resistance and reduces weight pressure on utility poles.
Fast & Cost-Efficient Installation: Self-supporting design allows workers to string the cable directly between poles, eliminating extra steel lashing wires and reducing installation time and labor costs.

ASU 12 Core Fiber Optic Cable 80m Span

Precision FRP Span Calibration: We precisely adjust the FRP rod dimensions and outer jacket formulation to meet your specific regional weather conditions and span requirements.

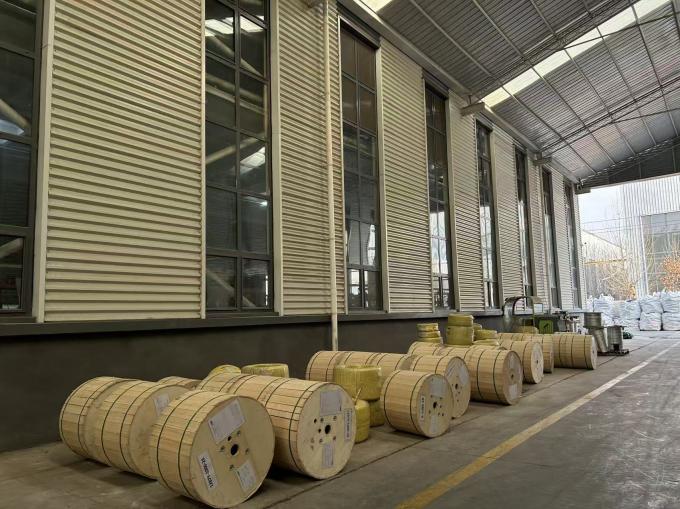

Rigid Quality Assurance: Every production batch of 12-core ASU cable undergoes rigorous tensile pulling, crush, and thermal cycling tests in our internal laboratory before being loaded on export reels.

Strength Member	2*FRP
Package	3km/4km/5km Per Drum
Fiber Type	Single-mode
Cable Structure	Single Loose Tube Non Armor
Package Length	2KM/3KM/5KM Or As Your Request
Jacket	Single Jacket
Fiber Model	G.652 Or On Your Request
Life Expectancy	Over 30 Years
