Double jacket ADSS 12 Core All Dielectric Fiber Optic Cable Black PE Sheath Aramid yarn for Aerial and Pole to Pole Use

Place of Origin	Shandong
Brand Name	JQ
Certification	ISO
Model Number	ADSS
Minimum Order Quantity	3KM
Price	USD0.1-0.2
Delivery Time	5-8
Payment Terms	L/C, D/A, D/P, T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

Product Title:

12 Core Double Jacket ADSS All Dielectric Self Supporting Fiber Optic Cable – Black PE Sheath, Aramid Yarn Reinforced

Product Description:

Overview
This 12-core Double Jacket ADSS (All Dielectric Self Supporting) fiber optic cable is designed for aerial installations in high-voltage environments. Featuring a black PE outer sheath and reinforced with aramid yarn strength members, it ensures excellent mechanical strength, UV resistance, and electrical insulation. The double jacket structure offers enhanced protection against environmental and electrical stresses, making it ideal for power line communication networks.

Key Features

Double Jacket Protection: Outer PE sheath combined with an inner protective jacket for superior durability and weather resistance.
All Dielectric Design: Non-metallic construction, safe for installation near high-voltage power lines without grounding.
Aramid Yarn Reinforcement: Provides high tensile strength and long span capability subject to sag-tension calculation, wind/ice load, installation conditions and technical confirmation by JQ.
Black PE Sheath: UV resistant, waterproof, and suitable for outdoor aerial deployment.
Low Optical Attenuation: Gel-filled loose tubes protect fibers and ensure stable signal transmission.

Applications

High voltage transmission line communication
Long-span aerial installations in rural and urban areas
ISP backbone and power utility communication
Railway and highway communication networks

Technical Specifications

Parameter	Specification
Fiber Count	12 cores
Fiber Type	G.652D
Cable Structure	Double jacket, gel-filled loose tube

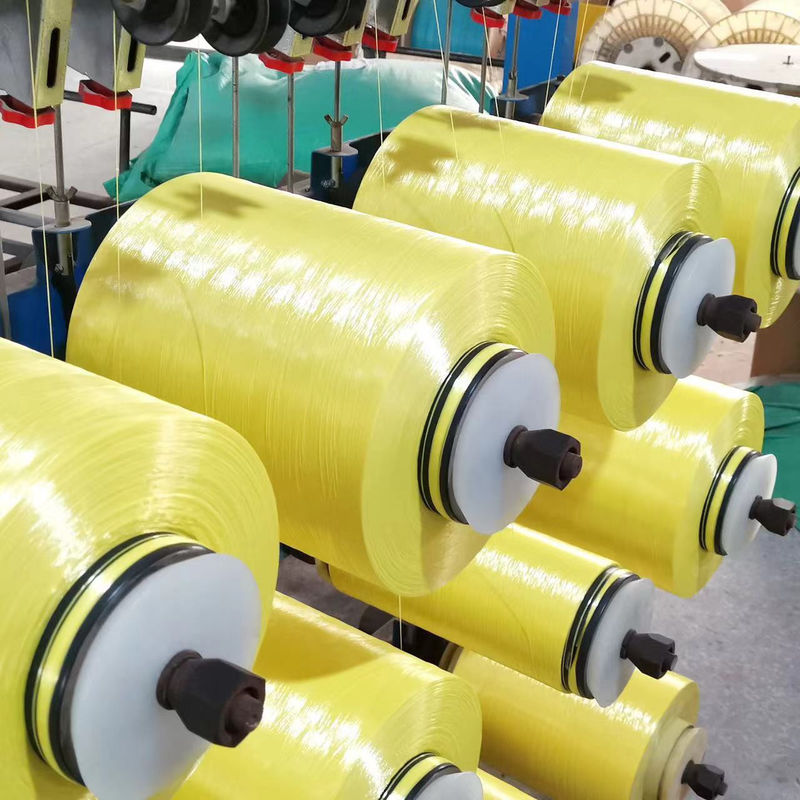

Strength Member	Aramid yarn
Outer Sheath	Black PE
Max Span Length	Long-span ADSS designs are available subject to project-specific sag-tension calculation, wind/ice loading, installation conditions and approved technical datasheet.
Operating Temperature	-40°C to +70°C
Tensile Strength	1000–15000 N (customizable)
Installation	Aerial, pole-to-pole
Standards	ISO

Why Choose Us

Over 15 years of experience manufacturing ADSS cables
Strict quality control with comprehensive testing
Customizable specifications to meet project needs
Fast delivery and global export experience

Packing & Delivery

Export standard wooden or iron-wooden drums
Length per reel: 2km–6km (customized available)
Shipping options: Sea, air, or courier

Application	Aerial Communication
Sheath Material	PE/AT
Packing	Wooden /Carton Drum
Product Name	DJ ADSS
Certification	ISO
Core	12 Cores
Strength Member	Aramid Yarn FRP
