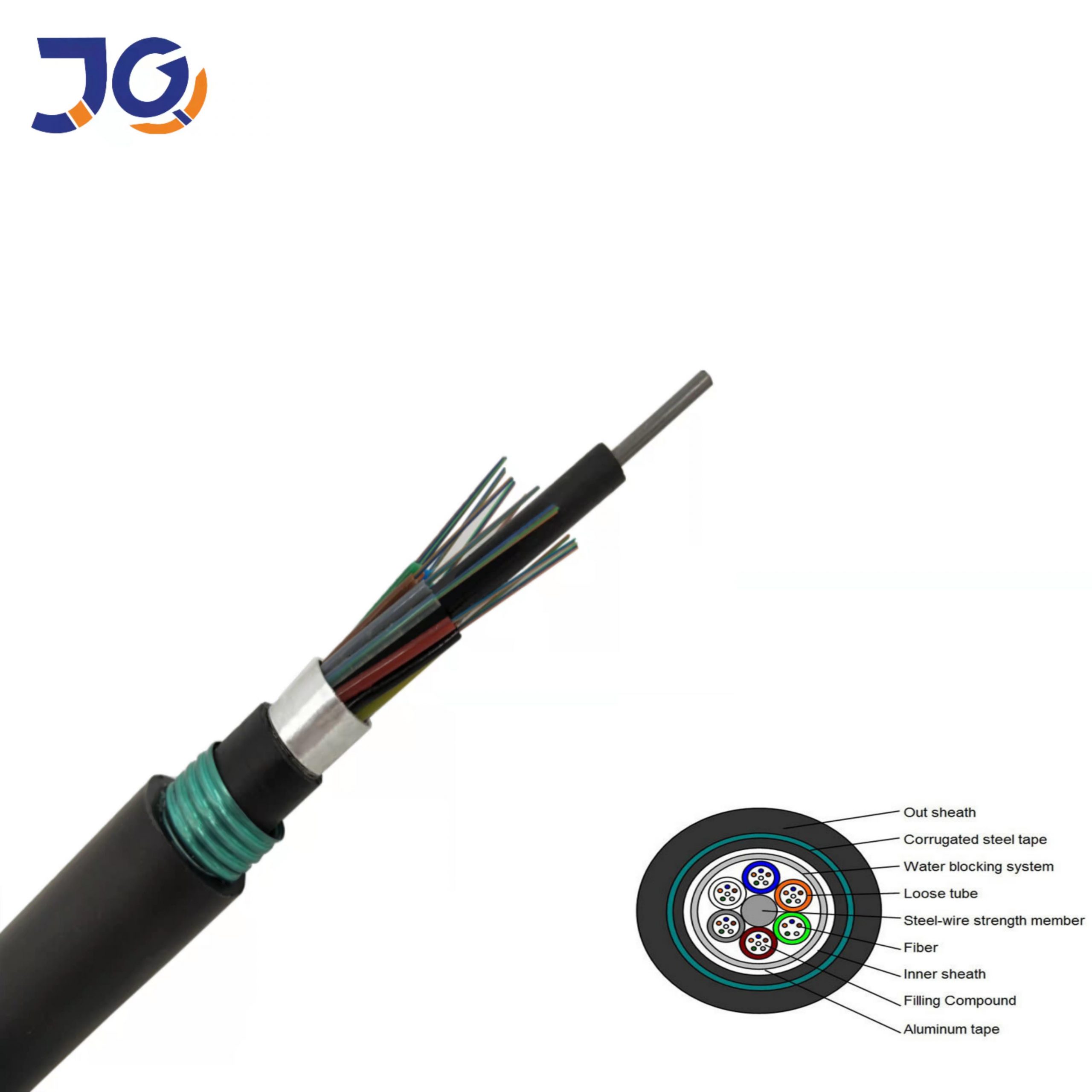

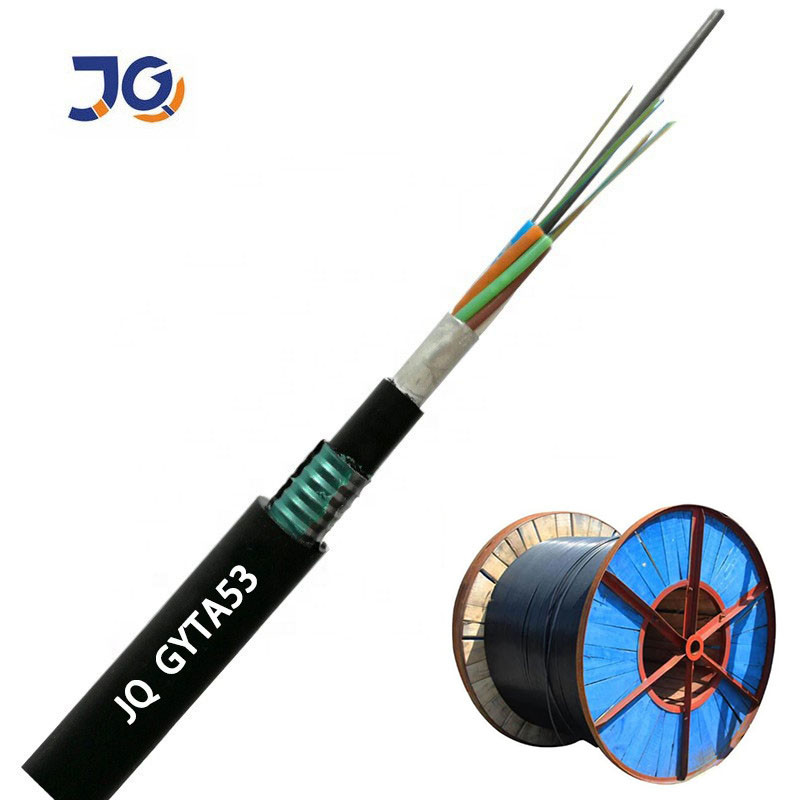

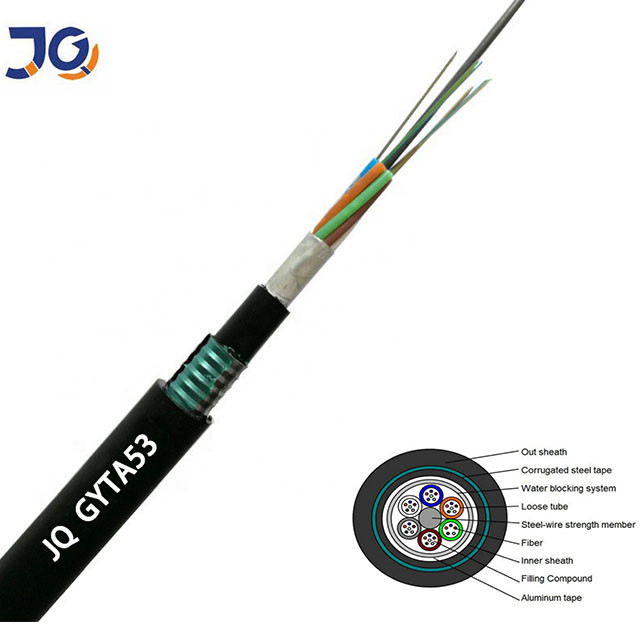

GYTA53 Double-Sheath Armored Fiber Cable, 4–144 Cores
-
Double sheath double armoured underground directly buried GYTA53 4 8 12 24 48 96 144 core fiber optic cable
Fiber Optic G652D
-
Item Unit Specification Fiber Type G.652D Mode field diameter 1310nm μm 9.2±0.4 1550nm μm 10.4±0.8 Cladding diameter μm 125.0±1 Cladding non-circularity % ≤1.0 Core/cladding concentricity error μm ≤0.5 Coating diameter μm 245±5 Coating non-Circularity % ≤6.0 Coating/cladding concentricity error μm ≤12.0 Cable cut-off wavelength nm ≤1260 Attenuation Coefficient 1310nm dB/km ≤0.36 1550nm dB/km ≤0.22 Proof stress level kpsi ≥100 Cable performance:
Item Parameters Fiber Count 48 Fiber in loose tube 12/tube Colored coated fiber Dimension 250µm±15µm Color Blue,Orange,Green,Brown, Gray,White,Red,Black,Yellow, Purple,Pink,Aqua
Loose tube Dimension 2.0mm Material PBT Color Blue,Orange,Green,Brown Filler Material PE Color natural Central Strength Member Dimension 1.6 Material Steel wire Armoured Material Corrugated steel tape/Aluminium tape Inner jacket material MDPE thickness 0.9MM Outer jacket Material HDPE Color Black thickness 1.7mm - Company profile:
- Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa - Exhibition
- Certification:
- FAQ:
- 1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.5.What is your warranty period?
25-30 years for outdoor fiber optic cable6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE7.What is your delivery time?
Usually 5-7 working days8.What is your payment way?
T/T, L/C, Western Union9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.Welcome to visit our factory
Contact me at +8618998347595 to get free sample
Specifications
| Place Of Origin | Guangzhou,China |
| Brand Name | Jiqian |
| Model Numer | GYTA53 |
| OEM | Available |
| Sheath Material | HDPE |
| Factory | Yes |
| Fiber Count | 4-288 Cores |
| Certification | CE/ROHS/FCC/ISO9001 |
| Application | Underground Directly Buried |
| Highlight | Underground 12 Core Fiber Optic Cable , Double Sheath Fiber Optic Cable , Double Armoured Fiber Optic Cable |
Basic Information
| Place of Origin | China |
| Model Number | GYTA53 |
Payment & Shipping Terms
| Packaging Details | 2/3km |
| Delivery Time | 3-5 days |
| Payment Terms | L/C, T/T, Western Union,Alipay |
| Supply Ability | 6000 per month |
