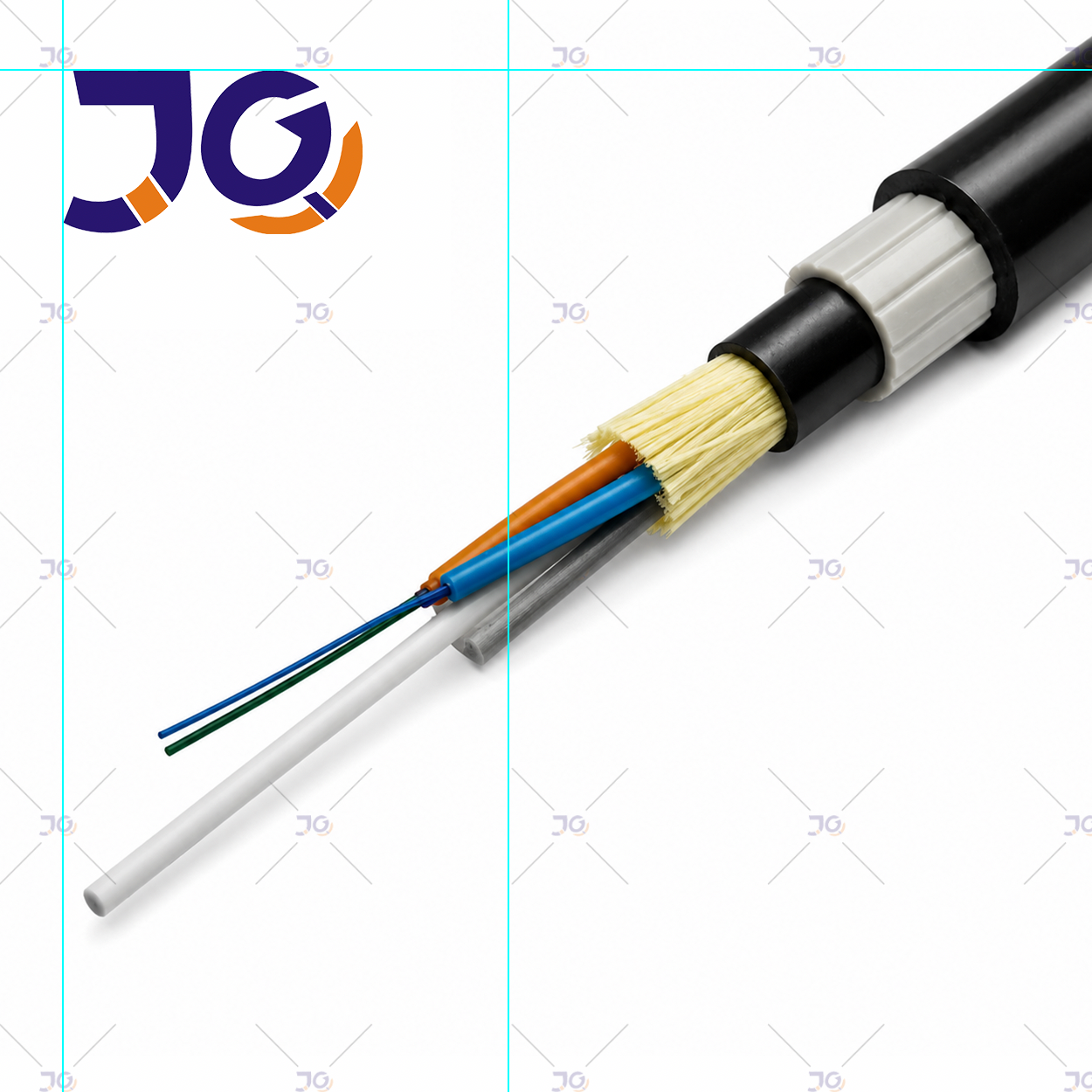

Flat FRP Armored Anti-Rodent ADSS Fiber Optic Cable 2-144core
The fibers are positioned in PBT loose tube filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member(FRP) to form the cable core. Water Blocking yarn and water blocking tape used in the cable core to prevent water penetration. Then Aramid Yarn & Flat FRP armored to reinforce . Finally, PE or AT outer jacket is extruded.
Fibers: up to 144 core
Fiber type: Single-mode G652.D
Central Strength Member: FRP
Aditional Strength Member1: Kevlar Aramid Yarn
Aditional Strength Member2: Flat FRP
Outer Jacket: MDPE/ HDPE
Waterproof: Water-blocking Yarn & Tape
Span customized: 80/100/120/150/200/300m etc.

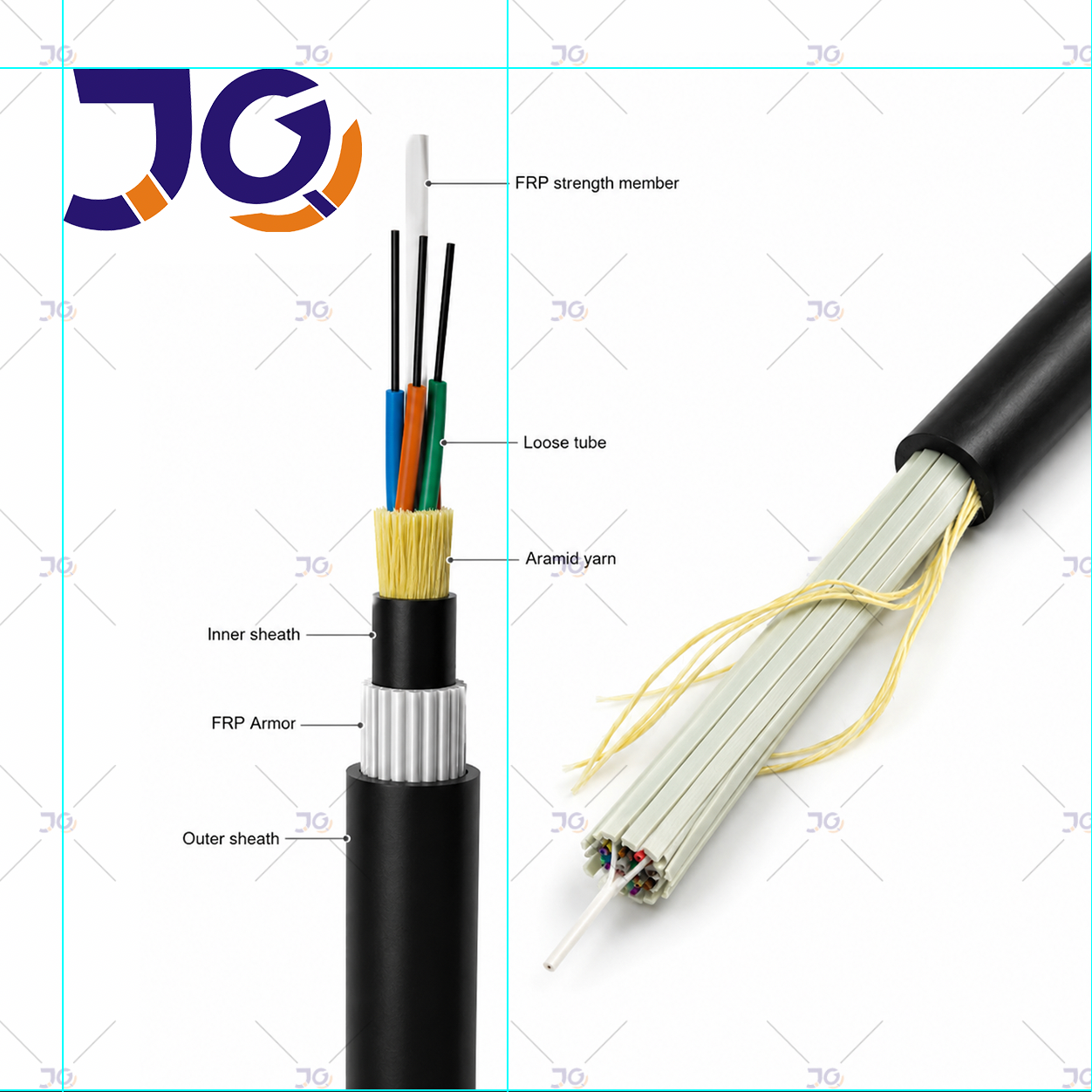

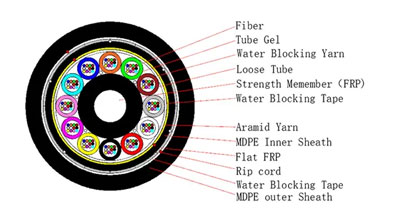

Structure Design:
Main Features:
• It can be installed without power off.
• Easy to install with light weight and small diameter
• Large span length (up to 1000 meters) suitable for different requirements
• Good mechanical and environmental performance
• Flat FRP armored for better anti-rodent function
Cable Technical Parameter:
Double Jacket (Span 150m for reference):
| Fibers | OD of Cable (mm) |
Cable weight (kg/km) |
Min bending radius(mm) | Tensile (N) | Crush (N/100mm) | Temperature (ºC) | |||
| Static | Dynamic | Short-term | Long-term | Short-term | Long-term | ||||
| 12 | 13.5 | 165 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | Storage/Operation: -40ºC~+70ºC |
| 24 | 13.5 | 165 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | |
| 36 | 13.5 | 165 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | |
| 48 | 14.8 | 187 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | |
| 72 | 14.8 | 187 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | |
| 96 | 15.4 | 208 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | |
| 144 | 18.2 | 278 | 10D | 20D | 5000 | 2500 | 3000 | 1000 | |
| Note: “D” means cable diameter | |||||||||
Tripe Jacket (Span 300m for reference):
| Item | Value | |||
| Span | 300 M | |||
| Fiber Count | 12 | 24 | 48 | 144 |
| PBT Tube | 1 | 2 | 4 | 12 |
| Fiber Count/ Tube | 12 | 12 | 12 | 12 |
| Filler | 6 | 5 | 3 | 0 |
| OD of Tube/mm | 2.0±0.1 | 2.0±0.1 | 2.0±0.1 | 1.9±0.1 |
| Thickness of Tube/mm | 0.30±0.05 | 0.30±0.05 | 0.30±0.05 | 0.30±0.05 |
| Central Strength FRP | 2.8 | 2.8 | 2.8 | 2.8 |
| Coated FRP | – | – | – | 5.6 |
| Water Blocking Material | Water Blocking Yarn+Water Blocking Tape | |||
| Rip cord | Polyester yarn*2 | |||
| Water Blocking Material | Water Blocking Yarn+Water Blocking Tape | |||
| Inner Sheath | Nominal Thickness 1.0mm HDPE | |||
| Peripheral Strength Member | Aramid Yarn | |||
| Rip cord | Polyester yarn*2 | |||
| Middle Sheath | Nominal Thickness 1.0mm HDPE | |||
| Armor | Flat FRP 3.0*1.0mm | Flat FRP 3.0*1.0mm |
||
| Water Blocking Material | Water Blocking Yarn+Water Blocking Tape | |||
| Rip cord | Polyester yarn*2-Red | |||
| Outer Sheath | Nominal Thickness 2.0mm HDPE | Nominal Thickness 2.0mm HDPE | Nominal Thickness 2.0mm HDPE | Nominal Thickness 2.0mm HDPE |
| OD of Cable/mm | 17.8±0.3 | 17.8±0.3 | 17.8±0.3 | 20.5±0.3 |
| Weight | 294kg/km | 294kg/km | 297kg/km | 392kg/km |
Note:
1.Flooding jelly compound default
2.The relevant technical parameters can be adjusted according to the customers’ demands;
3.The block water way can be adjusted according to the customers’ demands;
4.The design flame resistance,anti-rodent,termite resistant cable according to the customers’demands.
