GYFTY 72-Core G652D All-Dielectric Outdoor Duct Fiber Optic Cable
JQ GYFTY 72-core all-dielectric outdoor duct fiber cable with stranded loose tubes, non-metallic FRP strength member and water-blocked PE construction.
72-Core All-Dielectric Outdoor Duct Fiber Cable

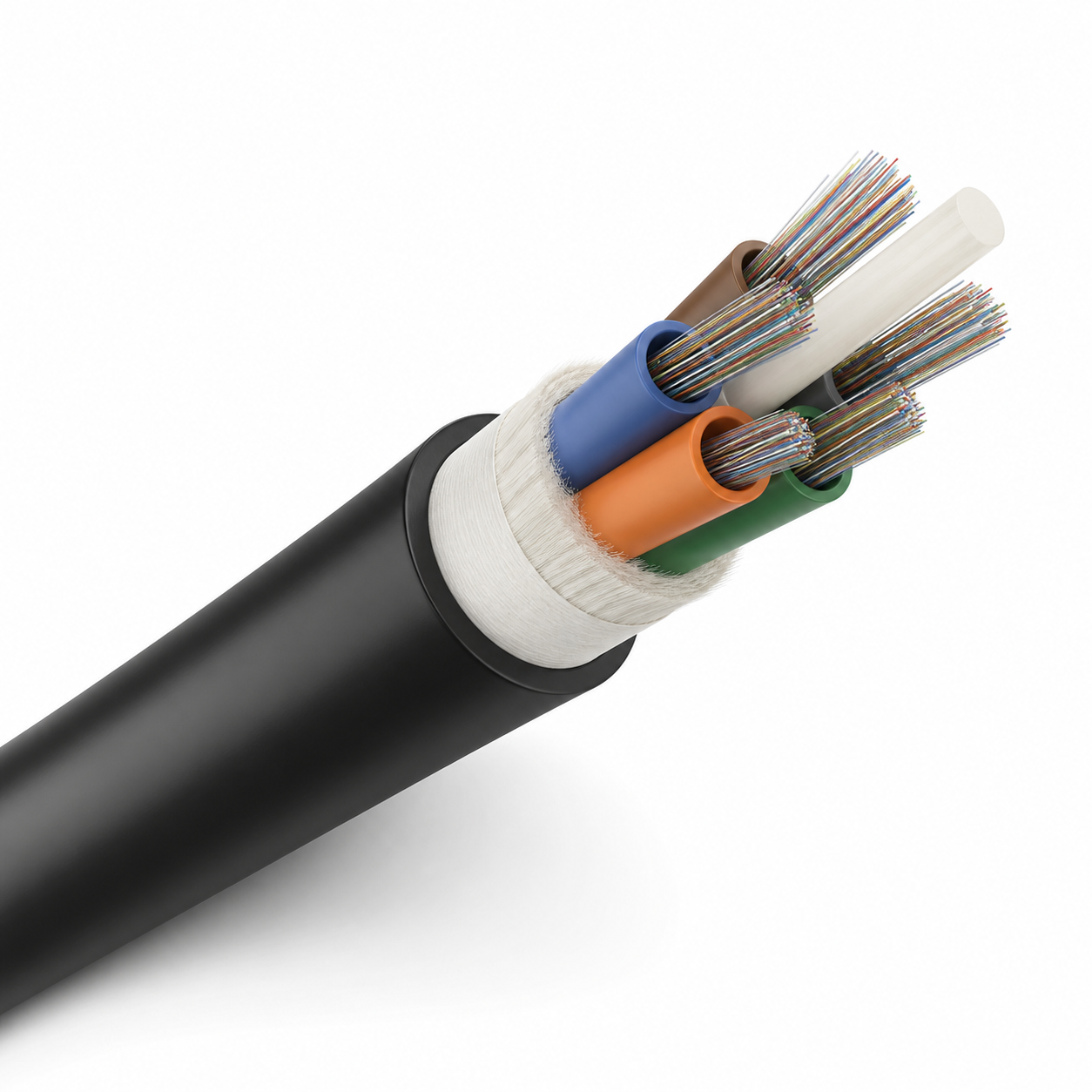

JQ GYFTY is a non-metallic stranded loose-tube fiber optic cable for outdoor duct and conduit networks. The all-dielectric design uses an FRP central strength member and water-blocking materials, making the cable suitable for routes where electrical isolation, lightning resistance and low induced current are important.
Fiber count, loose-tube layout, cable diameter, pulling tension and drum length can be customized for telecom operators, contractors and distribution projects.
Key Features
- 72-core G652D single-mode fiber
- Completely non-metallic construction
- FRP central strength member
- Stranded loose tubes with water-blocked cable core
- Black UV-resistant PE outer sheath
- Suitable for duct and conduit pulling
Typical Technical Data
| Model | GYFTY |
|---|---|
| Fiber Count | 72 cores |
| Fiber Type | G652D; G657A available |
| Central Member | FRP |
| Core | Stranded loose tube, water blocked |
| Outer Sheath | UV-resistant PE |
| Installation | Outdoor duct and conduit |
Applications
- Metro and long-haul duct networks
- Industrial and power communication routes
- Lightning-prone or electrically sensitive locations
Request a Factory Quote
Send the fiber count, installation duct size, pulling distance, cable length and destination for technical confirmation and pricing.
| Model | GYFTY |
|---|---|
| Fiber | 72 × G652D |
| Structure | Stranded loose tube |
| Strength Member | FRP |
| Metal Content | None |
| Jacket | Black PE |
| Use | Outdoor duct and conduit |
