GYTA33 Steel Wire Armored Fiber Optic Cable for Underwater Use
Submarine Optical Fiber Cable GYTA33
GYTA33 is a double armored loose tube fiber optic cable designed for direct burial and underwater installation. Full cross-section water-blocking structure ensures excellent moisture resistance. Loose tubes filled with special jelly protect fibers from stress. Phosphate steel central strength member offers high modulus and corrosion resistance. Double-layer corrugated aluminum tape with steel wire armor provides superior tensile, crush, and impact performance, suitable for harsh submarine and underground environments.
Application
Suitable for direct burial installation and underwater laying.
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| item | value |
| Model Number | GYTA33 |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum Tape armor |
| Color | Black or as your need |
| Application | Direct burial, underground,sea |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information
Product Construction

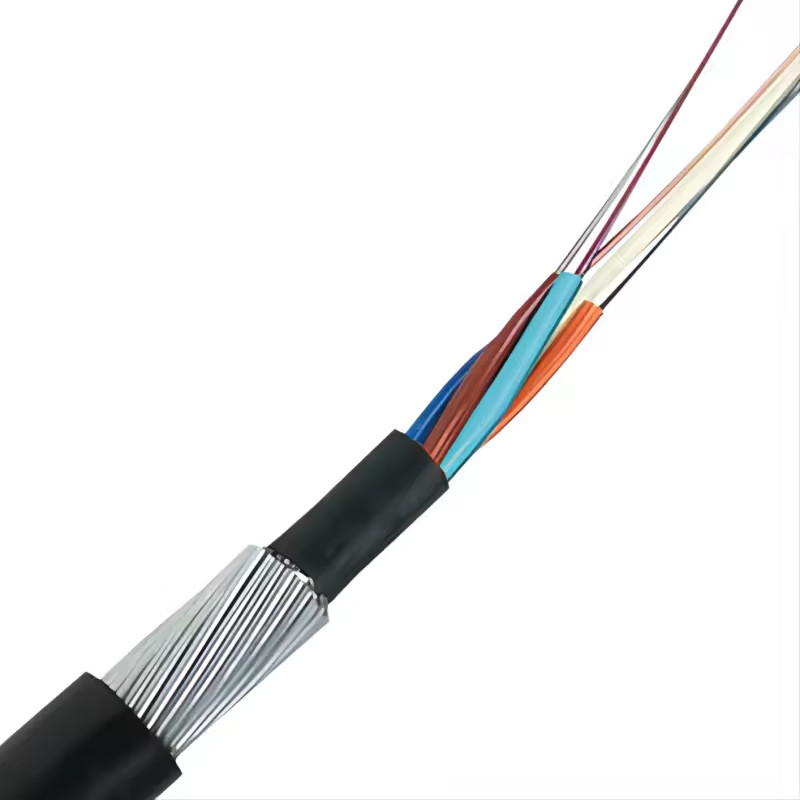

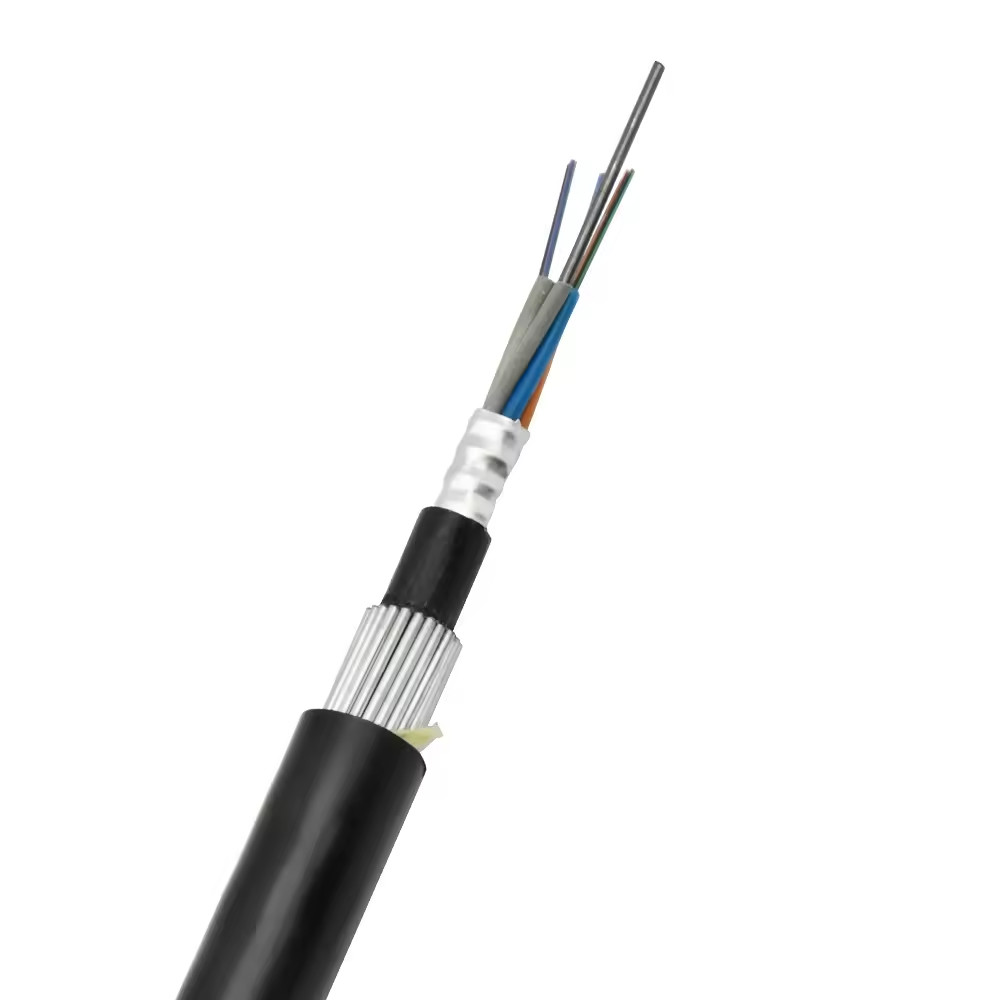

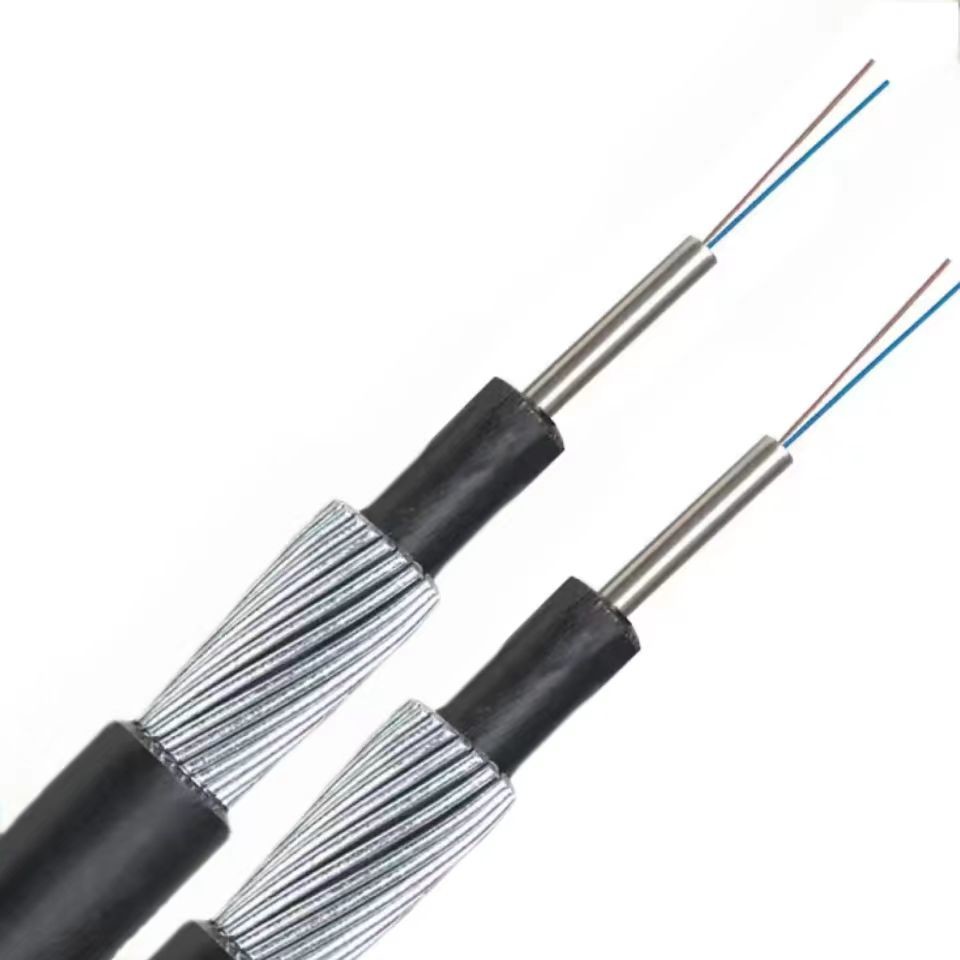

Cable Picture
Packing
1/2/3/4km or customized length export wooden drum
professional, environmentally friendly, convenient and efficient packaging services will be provided.
We Support OEM and Customize products.
Welcome to your inquiry! Welcome to visit our facotry!
Contact me at +86 18122384553 to get free sample.
Specifications
| Fiber Type | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4 |
| Jacket | PE,MDPE,LSZH,PVC,HDPE |
| Fiber Count | 4-72 Cores |
| Product Name | Stranded Loose Tube Armored Cable |
| Installation | Aerial & Duct |
| Oem | Available |
| Name | Underground Directly Buried Armored Cable |
| Cable Type | Double Jacket Double Armored |
| Highlight | underground submarine fiber optic cable , armoured loose tube fiber cable , direct burial underwater fiber optic |
Basic Information
| Place of Origin | Guangzhou,China |
| Brand Name | JQ/OEM/Customize |
| Certification | ISO9001 ROHS CE FCC SDOC |
| Model Number | GYTA33 |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 4500KM Per Month |
