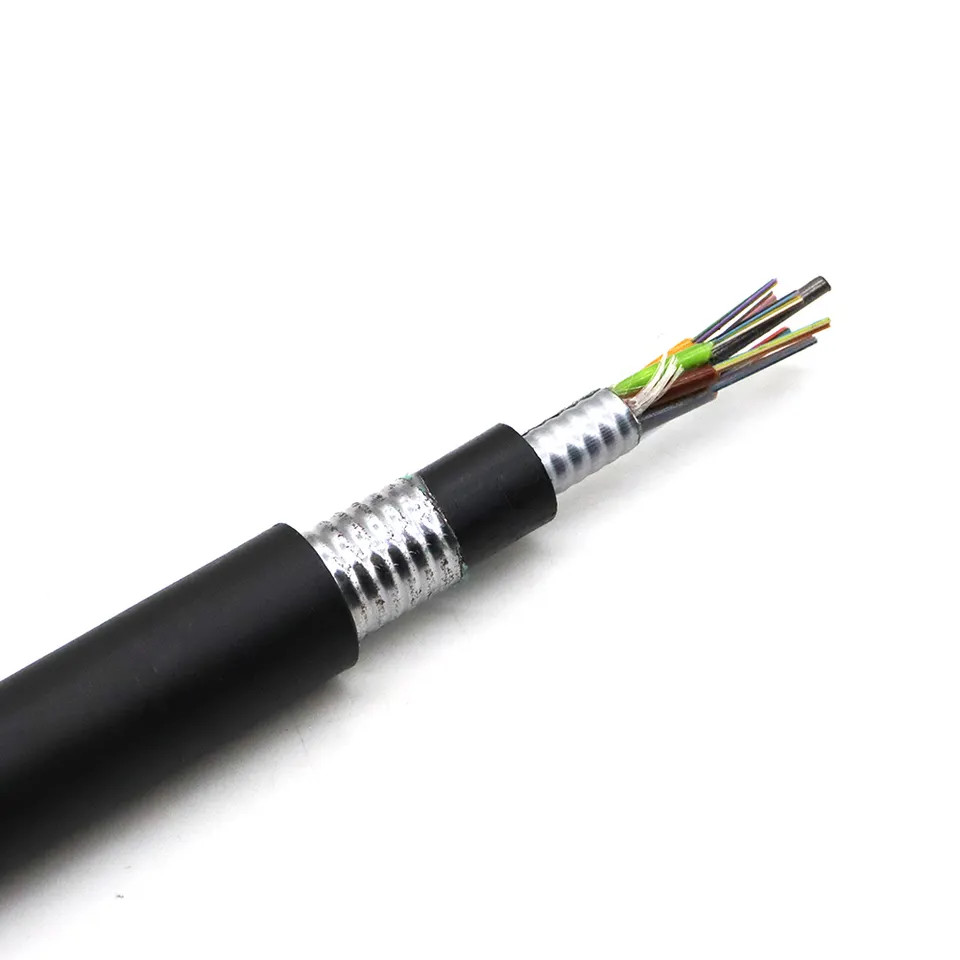

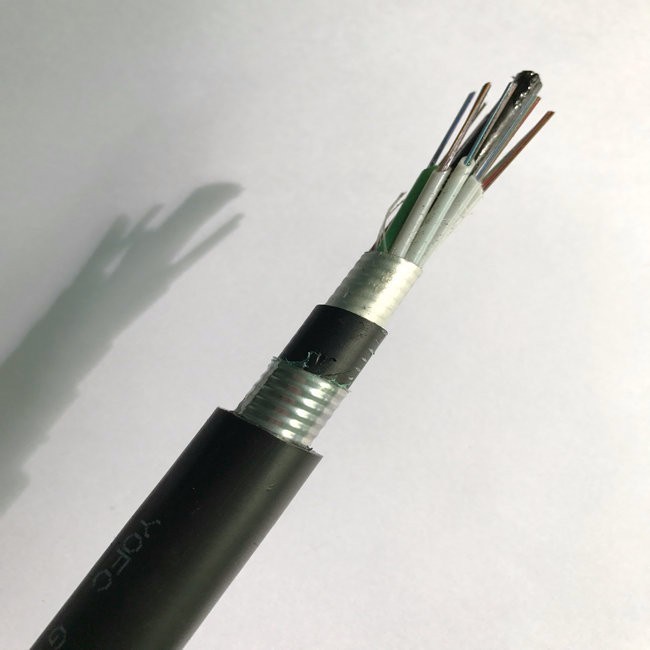

GYTA53/GYFTY53 96 Core Double-Sheath Armored Fiber Cable
Double Jacket Stranded Armoured Steel Wire Member outdoor Fiber Optic Cable GYTY53/GYTA53The UArmored Loose Tube Double Jacket/Double Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today’s most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Application:
1. Direct burial
2. Underground
3. Backbone Internet

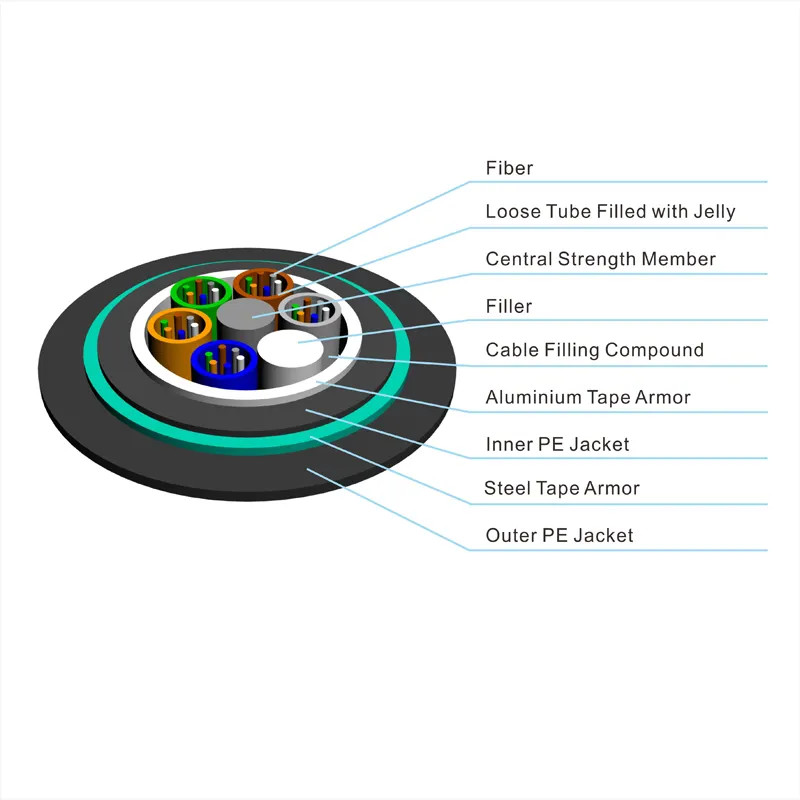

Cable performance:
Item |
Parameters |
|
Loose tube |
Material |
PBT |
Color |
All colors display |
|
Filler |
Material |
PE |
Color |
Black |
|
CSM |
Material |
FRP |
Inner jacket |
Material |
MDPE |
Color |
Black |
|
Outer armoured |
Material |
Plastic coated steel strip |
Outer jacket |
Material |
MDPE |
Color |
Black |
|
Min. bending radius |
Static |
12.5 times cable diameter |
Dynamic |
25 times cable diameter |
|
Repeating bending |
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
Tensile performance |
Short term |
1500N |
Crush |
Short term |
3000N/100mm |
Torsion |
Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. |
|
Dimensions of cable constructions:
Fiber count |
Structure |
Fibers per tube |
Loose tube diameter(mm) |
diameter/pad diameter(mm) |
Thickness ofInner jacket(mm) |
Thickness ofouter jacket(mm) |
Cable diameter(mm) |
Cable weight(kg/km) |
12 |
1+6 |
6 |
1.8 ±0.1 |
2.2 /2.2 |
0.9±0.1 |
1.6±0.1 |
12.4 ±0.5 |
138 |
24 |
1+6 |
6 |
1.8 ±0.1 |
2.2 /2.2 |
0.9±0.1 |
1.6±0.1 |
12.4 ±0.5 |
140 |
48 |
1+6 |
12 |
2.0±0.1 |
2.3 /2.3 |
0.9±0.1 |
1.6±0.1 |
12.9 ±0.5 |
152 |
96 |
1+8 |
12 |
2.0±0.1 |
2.6/3.5 |
0.9±0.1 |
1.6±0.1 |
14.1 ±0.5 |
182 |
144 |
1+12 |
12 |
2.0±0.1 |
3.0 /6.3 |
0.9±0.1 |
1.6±0.1 |
16.9 ±0.5 |
256 |

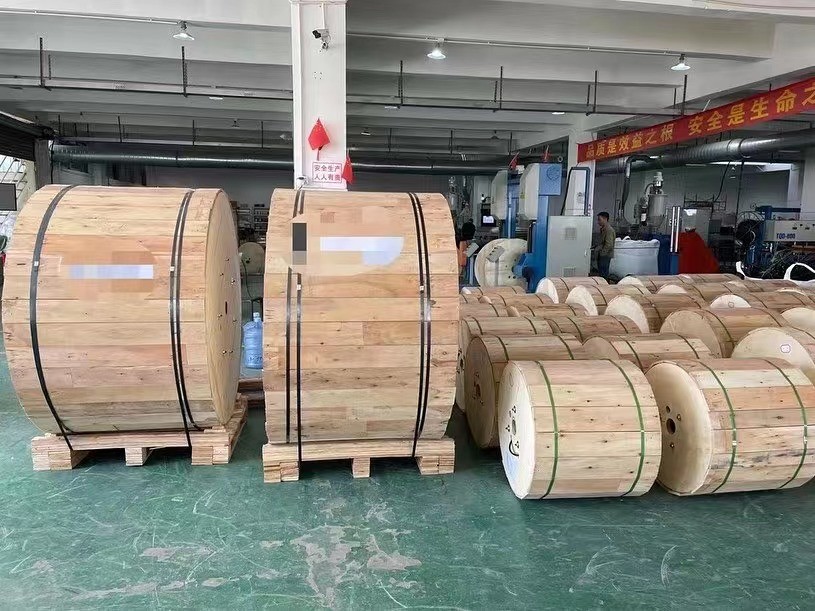

Packing details:
Cable type |
Drum |
||||
Height(mm) |
Width(mm) |
Inner diameter(mm) |
Length(km) |
Drum type |
|
GYFTY53-12 |
950 |
760 |
400 |
2 |
Wooden drum |
GYFTY53-24 |
950 |
760 |
400 |
2 |
Wooden drum |
GYFTY53-48 |
1000 |
760 |
400 |
2 |
Wooden drum |
GYFTY53-96 |
1150 |
760 |
450 |
2 |
Wooden drum |
GYFTY53-144 |
1300 |
760 |
500 |
2 |
Wooden drum |
COMPANY PROFILE
Guangzhou Jiqian fiber optical cable co., LTD is a professional manufacturer of fiber optic cable,it provide a wide range of outdoor/indoor fiber optic cable,ftth drop cable,fiber patch cord with ISO9001/FCC/ROHS/CE International certifications,it’s located in Guangzhou city,China We OEM or design any structure of fiber optic cable for you.
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
Specifications
| Fiber Type | G657A1/A2/G652D/G657A1/G657A2 |
| Oem | Available |
| Application | Direct Bury |
| Number Of Conductors | 48 96 72 96 |
| Structure | Stranded Loose Tube |
| Operating Temperature | -40 ~ +60 C |
| Cable Diameter | 9.6mm |
| Highlight | Gyfty53 Underground Fiber Optic Cable , G657A1 Underground Fiber Optic Cable , 9.6mm Gyfty53 waterproof fiber optic cable |
Basic Information
| Place of Origin | CHINA |
| Brand Name | jiqian |
| Certification | ISO 9001 CE LOHS |
| Model Number | GYFTY53/GYTA53 |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 2-4day |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100km per 2 day |
