GYTS53 144-Core G652D Double-Steel-Tape Direct-Buried Fiber Cable
JQ GYTS53 144-core direct-buried fiber optic cable with double steel-tape armour, dual PE jackets and water-blocked loose tubes for high-crush underground routes.
144-Core Heavy-Duty Underground Fiber Optic Cable

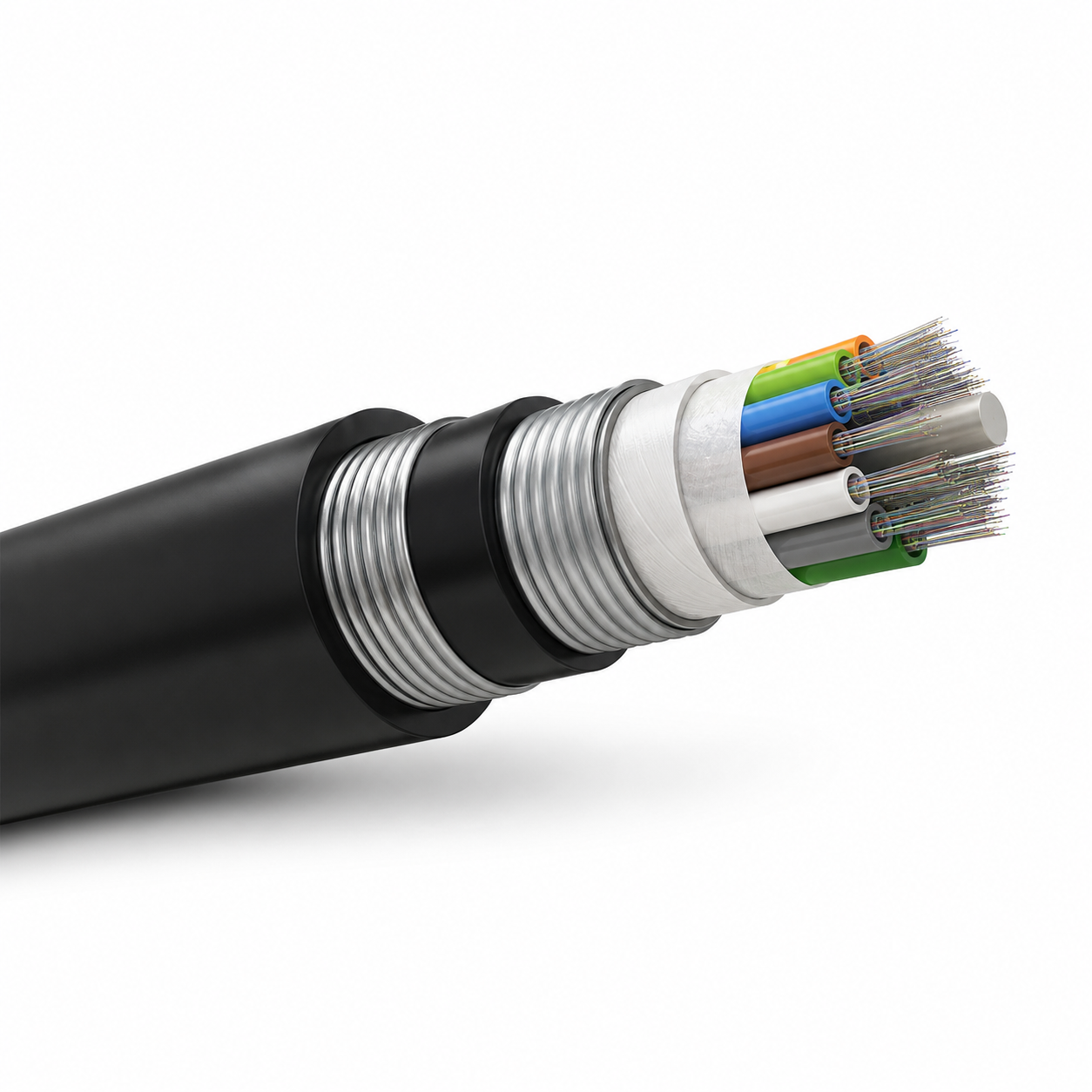

JQ GYTS53 is designed for direct-buried backbone routes requiring high crush resistance and reliable moisture protection. The stranded loose-tube core is protected by an inner PE jacket, double steel-tape armour and a durable outer PE sheath.
The high-fiber-count construction supports metro, carrier and industrial networks. Armour configuration, cable diameter, tensile performance and drum length are available for project customization.
Key Features
- 144-core G652D single-mode fiber
- Double steel-tape armoured protection
- Dual PE jackets for underground durability
- Water-blocked stranded loose-tube cable core
- High crush and rodent resistance
- Factory supply for direct-buried projects
Typical Technical Data
| Model | GYTS53 |
|---|---|
| Fiber Count | 144 cores |
| Fiber Type | ITU-T G652D |
| Armour | Double corrugated steel tape |
| Jackets | Inner PE plus outer PE |
| Water Blocking | Filled loose tubes and blocked cable core |
| Installation | Direct buried / underground |
Applications
- Carrier and metro backbone networks
- Underground telecom corridors
- Industrial, railway and utility communication
Request a Project Quote
Provide route length, burial method, soil conditions, fiber count, required drum length and destination for a tailored cable design.
| Model | GYTS53 |
|---|---|
| Fiber | 144 × G652D |
| Core | Stranded loose tube |
| Armour | Double steel tape |
| Jacket | Double PE sheath |
| Use | Direct buried underground networks |
