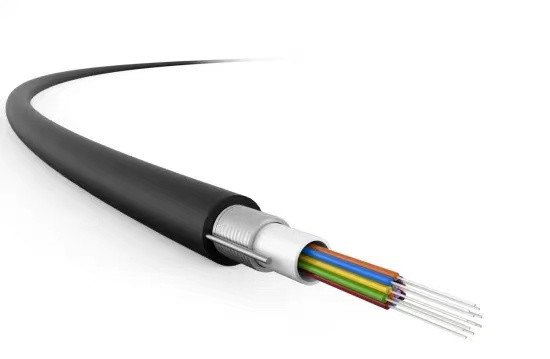

GYXTW Armored Single-Mode Fiber Cable for Aerial and Duct Use
✅ Product Features / Characteristics

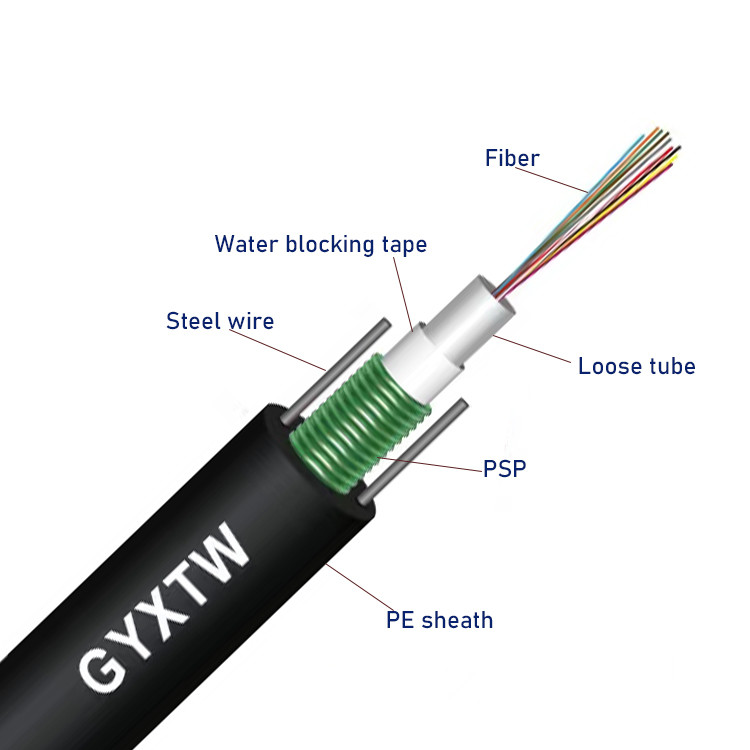

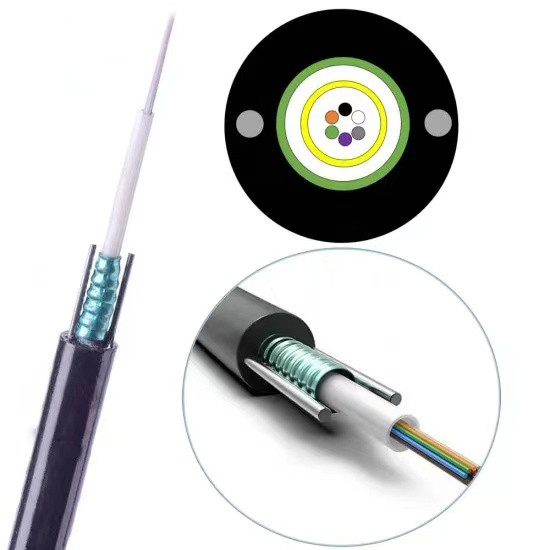

- Steel Wire Strength Member:Parallel steel wire provides excellent tensile strength and extra protection to the optical fibers.
- Tube and Tape Armored Structure:Central loose tube safeguards the fibers, while the tape-armored layer increases resistance to impact and crushing.
- High Mechanical & Environmental Reliability:Engineered to deliver stable performance under harsh outdoor conditions.
- Compact & Lightweight Design:Easy to handle, transport, and install, reducing labor and installation costs.
- Quick and Simple Installation:Designed for fast deployment in aerial and duct installation projects.
✅ Operating Temperature
- -40°C to +60°C
Suitable for a wide range of climate conditions, ensuring long-term stability and reliability.
✅ Application
- Designed for outdoor fiber optic distribution systems.
- Ideal for aerial installation (self-supporting or with messenger wire) and pipeline/duct installation.
- Applicable for long-distance communication networks, FTTx projects, backbone transmission, and LAN/WAN systems.
PRODUCT SPECIFICATIONS
| Item | Parameters | |
| Fiber Count | 12 | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Orange,Green,Brown,Gray,White,Red,Black,Yellow,Purple,Pink,Aqua | |
| Loose tube | Dimension | 2.2mm±0.1mm |
| Material | PBT | |
| Color | nature | |
| Filler | MATERIAL | none |
| color | none | |
| Strength Member | Dimension | 0.7mm±0.05mm |
| material | Phosphating steel wire | |
| Armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | PE |
| color | black | |
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2: What is your MOQ?
A2: The MOQ for fiber optic cables is 1 km.
Q3: Which fiber brands do you use?
A3: Corning, YOFC, FiberHome, and other trusted brands.
Q4: Do you accept small orders?
A4: Yes, small orders are welcome. We support new and trial projects.
Q5: What is the delivery time?
A5: 5–7 days after order confirmation, depending on quantity.
Q6: Can you provide customized products or logos?
A6: Yes, OEM and customized logos are available.
Q7: What are your payment terms?
A7: T/T, L/C, or Western Union. 30% deposit, 70% before shipment.
Specifications
| Fiber Count | 2-24Core |
| Strength Member | Steel Strand |
| OEM | Yes |
| Armored | Yes |
| Factory | Yes |
| Construction | Stranded Loose Tube |
| No Of Core | 24 Pairs |
| Sheath | HDPE/LSZH/MDPE/PE |
| Highlight | armored single mode fiber optic cable , aerial duct fiber optic cable , outdoor armored fiber cable |
Basic Information
| Place of Origin | Guangdong,China |
| Brand Name | Jiqian/Customize |
| Certification | CE/ISO9001/RoHS/FCC |
| Model Number | GYXTW |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 3-5 days, it depends on your quantity |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 60000KM/month |
