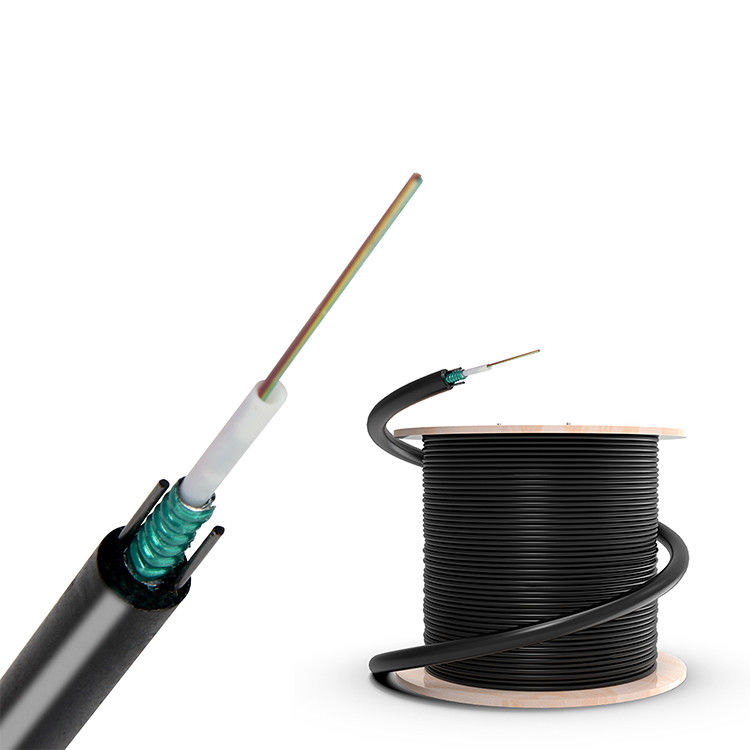

Low loss GYXTW Optical Fiber Cable 12 24 core G652D for aerial and duct laying
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO |
| Model Number | gyxtw |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.066/M ≥5000m $0.064/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Description:
This type of cable is suitable for outdoor use in piping and overhead applications. Center tube type construction, we offer GYXTW from 2 to 12 core fiber. There are single mode and multi-mode types to choose from.
Features:
- Good tensile strength and compressive strength.
- Patience.
- Good moisture, water resistance, flexibility.
- Double wire as reinforcement provides excellent strain performance.
Applications:
- Suitable for network access.
- LAN network.
- Overhead and pipeline applications.
- Metropolitan Area Network.

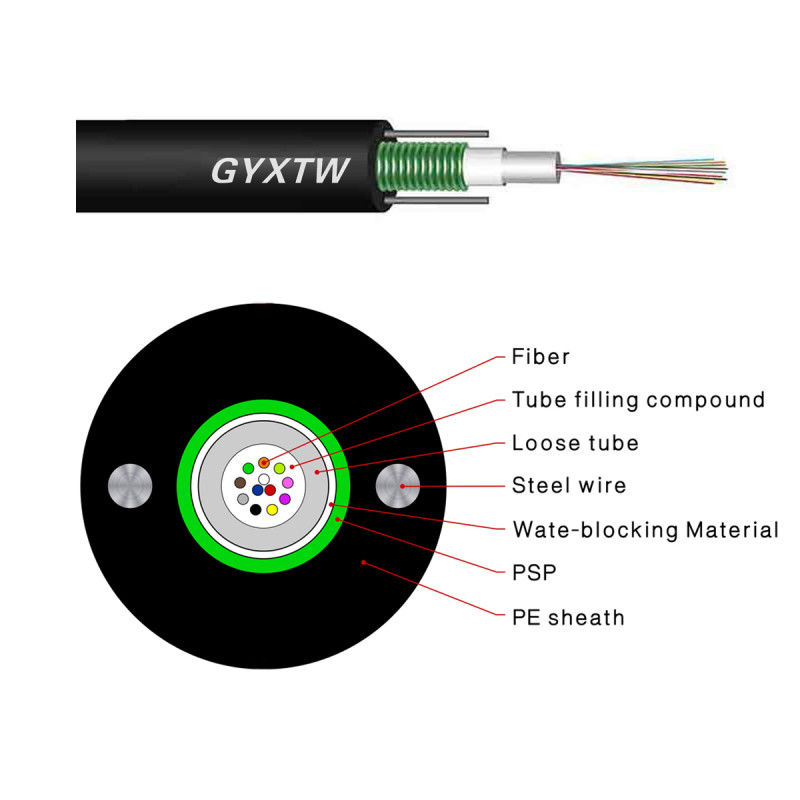

Structure and Technical Specifications:
| Fiber Count | 2-8 | 10-12 | 14-24 | |
| Diameter of steel wire(mm) | 1.0 | |||
| Diameter of Loose tube(mm) | 2.0 | 2.4 | 2.8 | |
| Diameter of Cable(mm) | 8.1 | 8.3 | 8.7 | |
| Gross weight(Kg/Km) | 74 | 75 | 87 | |
| Min. bending radius | Static 10xD Dynamic 20xD | |||
| Max. tensile force, N | Short term/ Long term 1500N/600N | |||
| Max Crush Resistance(N/100mm) | Short term/ Long term 1000N/300N | |||
| Allowable Temperatures | operation | -40°C – +60°C | ||
| storage | -50°C – +70°C | |||
| install. | -20°C – +50°C | |||
| Cable Model | GYXTW Fiber Optic Cable |
|---|---|
| Sheath Material | PE |
| Applications | Direct Burial |
| Transport Package | Wooden Drum |
| Trademark | OEM |
| Fibre Count | 2-24 Core |
