OPGW Optical Fiber Cable SM 24 Core Power System High Voltage ground wire communication construction
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO9001 |
| Model Number | OPGW |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.74/M ≥5000m $0.71/M |
| Standard Packaging | 1. Iron-wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-10 day |
| Payment Terms | T/T, L/C |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |

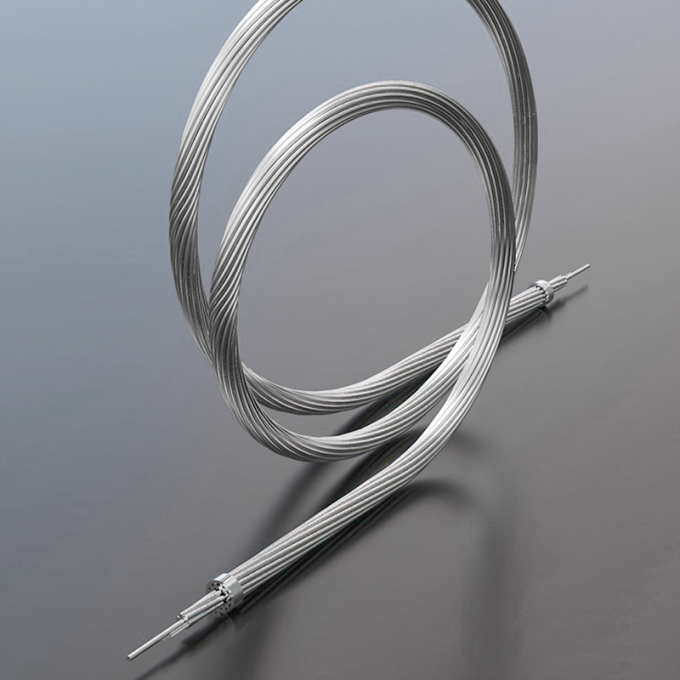

OPGW Optical Fiber Cable SM 24 Core

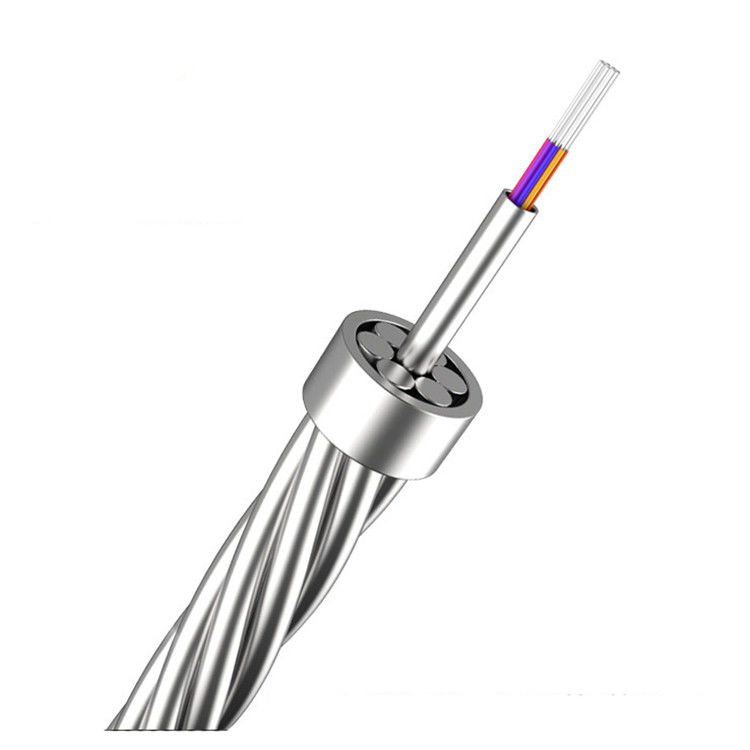

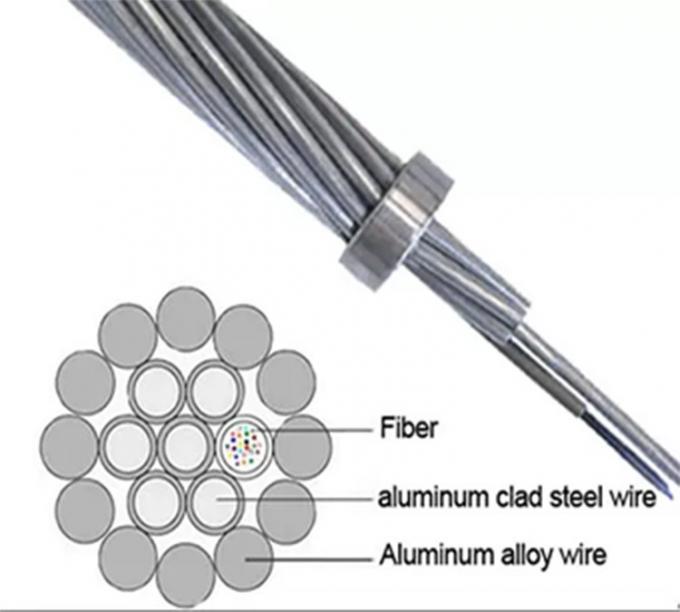

A central stainless steel tube (which contains the optical fiber inside) is surrounded by single or double layers of aluminum-clad steel (ACS) or mixed ACS and aluminum alloy wires. The design of aluminized stainless steel tube increases the cross-section of aluminum to achieve better fault current and lightning strike resistance. It is suitable for transmission lines requiring small diameter and large fault current.
Fiber Optic Cable OPGW Features:
1). The diameter of the OPGW optical cable is small, the additional load on the tower is small, and the tensile strength is high.
2). Excellent stranding technology makes the fiber have a good excess length and allows the fiber to move freely in the tube. It keeps the fiber optics stress-free when the cable is subjected to tension.
3). The optical fiber is protected by a stainless steel tube.
Fiber Optic Cable OPGW Application:
— Adapt to the replacement of aging ground wires and new high-voltage ground wire structures.
— Applied to lines requiring lightning protection and conduction of short-circuit current.
Technical Data:
| Item | Unit | Technical Parameter |
| Fiber Type | / | G.652 |
| Fiber attenuation | 1310nm(dB/km) | ≤0.35 |
| 1550nm(dB/km) | ≤0.21 | |
| Coefficient of linear Expansion | ×10-6/ºC | 13.9 |
| DC-Resistance (At 20 ºC) | Ω/km | 0.52 |
| Short current ( 1s ,40ºC~200ºC) | kA | 6.5 |
| Short current capacity ( 1s ,50ºC~200ºC) |
kA².S | 126.8 |
| Max allowed temperature | ºC | Up to 200°C, short-circuit design value subject to confirmed design/test conditions |
| Maximum allowable tension (40% RTS) | kN | 43.92 |
| Everyday stress | kN | 21.96 |
| Minimum allowable bending radius | Operating:mm | 228 |
| Installation:mm | 300 | |
| Storage and installation temperature | Storage ºC | -40 ~ +80 |
| Installation ºC | -10 ~ +50 |

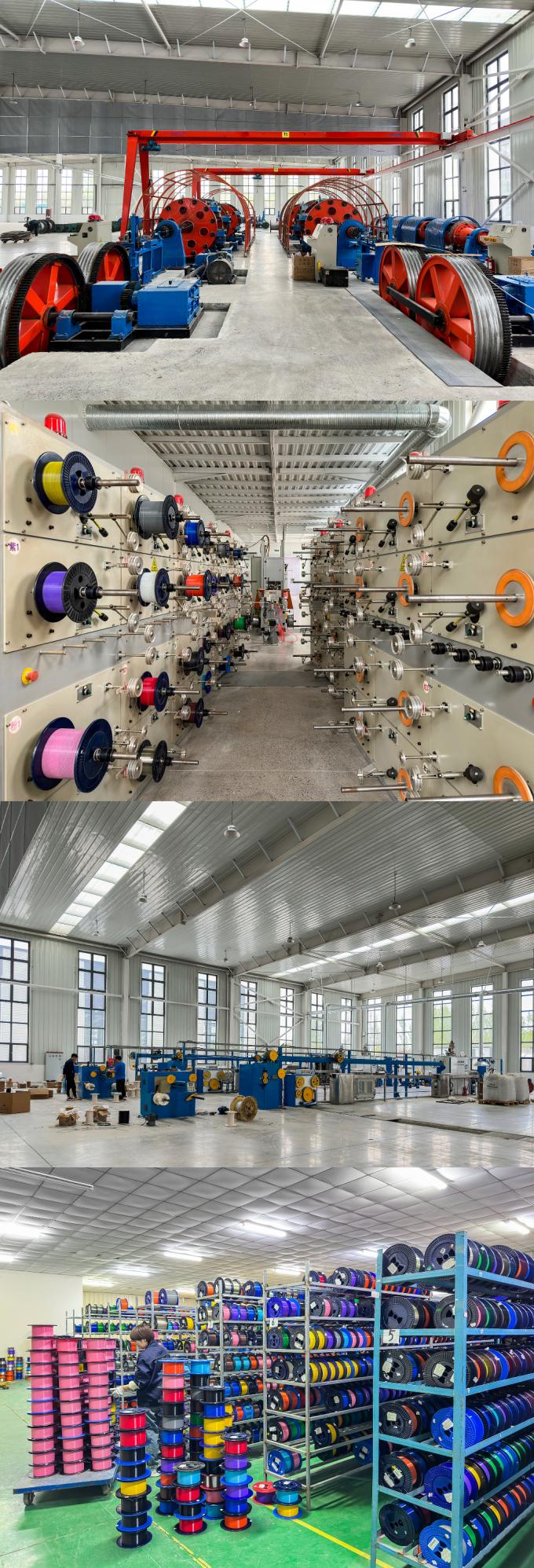

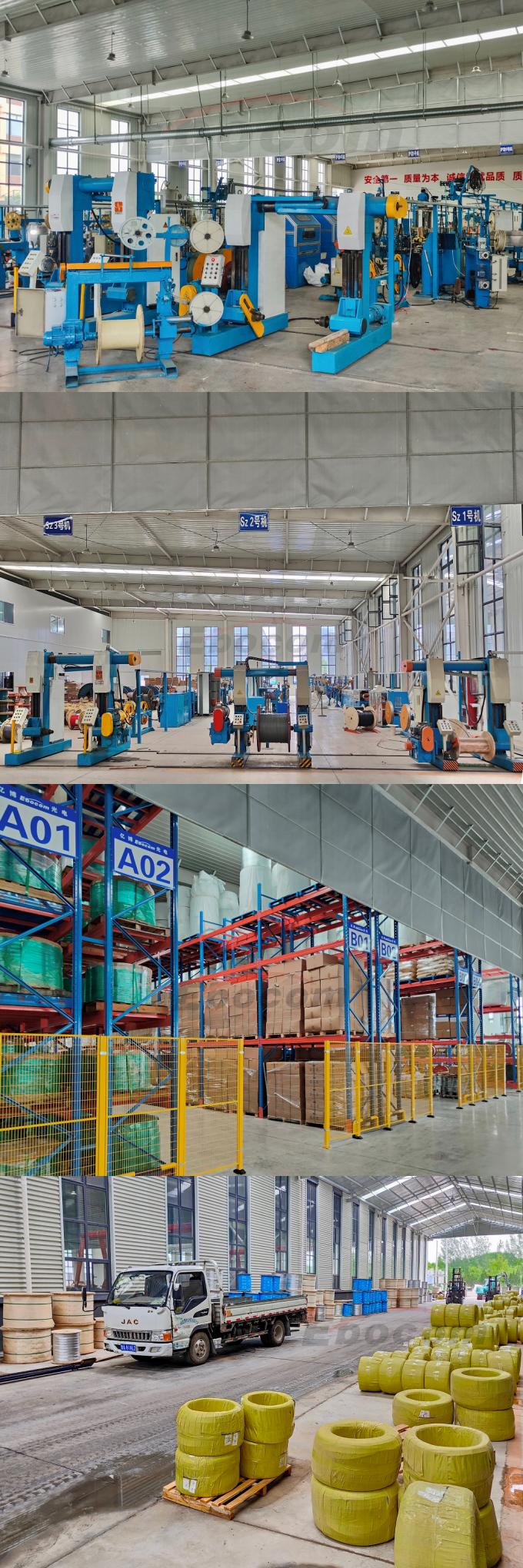

Factory Show:
| Cable Model | OPGW Cable |
|---|---|
| Fiber Mode | Single Mode Or Multi Mode |
| BRAND | JQ |
| Material | Acs |

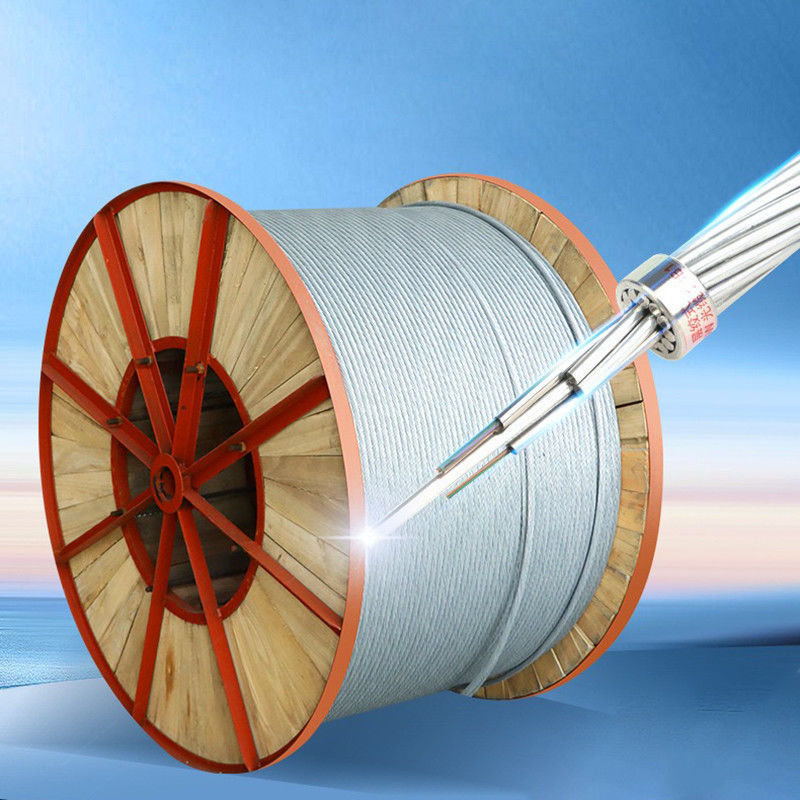

| Transport Package | Steel Drum Or Wooden Drum |
| Installation | Aerial Transmission Tower |
| Product | Opgw Fiber Optic Cable |
| Fiber Count | 2-96 Fibers |
| Structure | Stranded Or Central Unitube |
| Fiber Color | Blue,Orange,Brown,Aqua,Grey |
| Length | 2km/reel， Customize |
| Fiber Type | Single Mode |
