GYFTY/GYTY 144-Core Multimode Loose-Tube Outdoor Cable

GYFTY/GYTY 144-Core Multimode Loose-Tube Outdoor Cable

Single Mode/Multi Mode GYFTY/GYTY Outdoor 144 Core Fiber Optic Cable

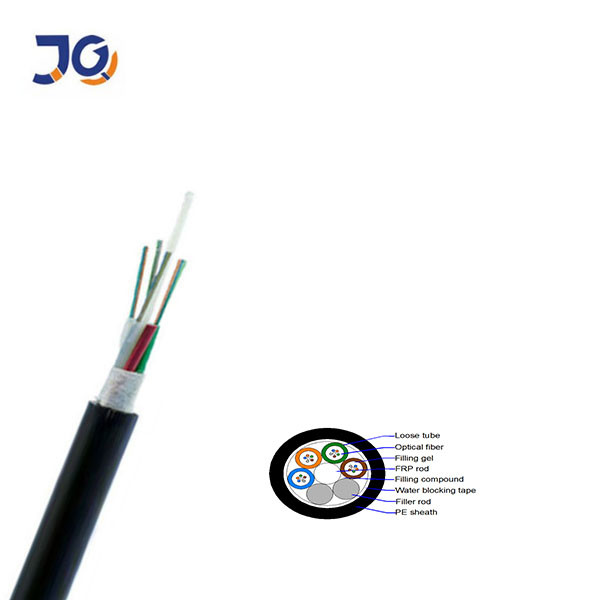

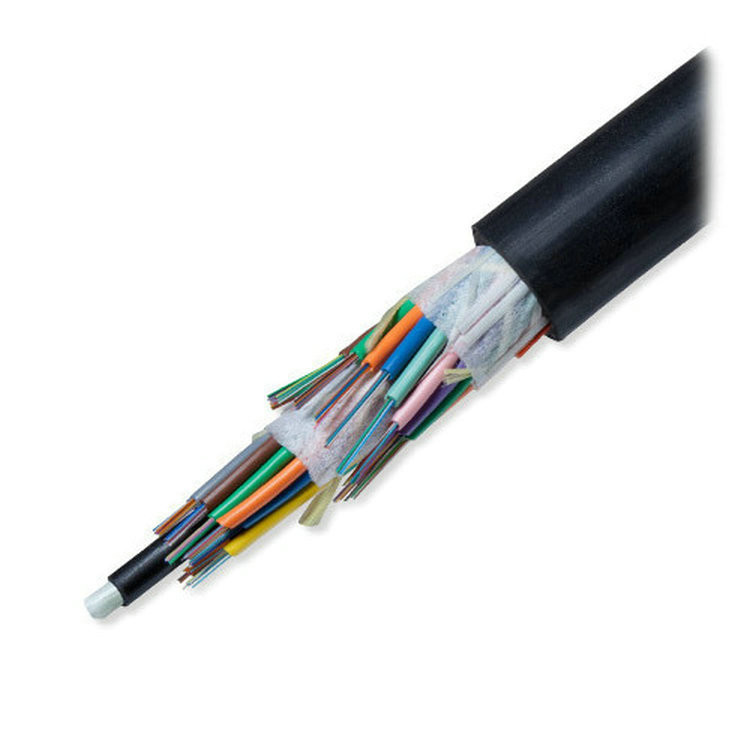

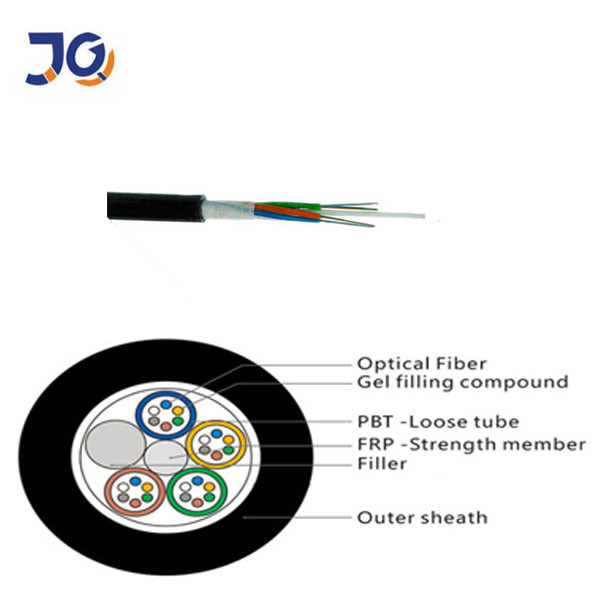

The 250µm fibers are housed in loose tubes made of high-strength plastic, filled with a water-resistant compound. A central Fiber Reinforced Plastic (FRP) rod serves as the non-metallic strength member. The tubes and fillers are stranded around the core to form a compact, circular structure. This is wrapped with a thin polyethylene (PE) inner sheath and filled with jelly to block moisture. A water-blocking layer is applied around the core for extra protection, followed by a corrugated steel tape armor and a durable PE outer sheath.

Features

Compact diameter, lightweight, and flexible design
Reliable water-blocking structure
FRP central strength member for durability
Strong resistance to electromagnetic interference
Jelly-filled loose tubes with PP fillers
Water-blocking tape with robust PE sheath

Applications

GYFTY fiber optic cable is designed for use in high-voltage environments, power transmission systems, and areas prone to lightning or strong electromagnetic interference. With its non-metallic strength member, it offers excellent performance without the need for additional support. This makes GYFTY cables a preferred choice for installations in regions with challenging electrical conditions.

Optical Characteristics

G.652D	50/125um	625/125μm
Attenuation	@850nm	≤3.0dB/km	≤3.0dB/km
(+20°C)	@1300nm	≤1.0dB/km	≤1.0dB/km
@1310nm	≤0.36dB/km
@1550nm	≤0.22dB/km
Bandwidth(ClassA)	@850nm	2500MHzkm	2200MHz:km
@1300nm	21000MHz-km	2600MHzkm
NumericalAperture	0.200+0.015NA	0.275+0.015NA
CableCut- offWavelengthλcc	≤1260nm

CableParameters

Items		Specifications
Fiber Count		144 fibers
Colored Coating Fiber	Dimension	250μm+15μm
Colored Coating Fiber	Color	Blue,Orange,Green,Brown,Gray,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Natural
Strength Member	Diameter	2.0mm±0.2mm
Strength Member	Material	FRP or steel wire
Outer Jacket	Dimension	14.7mm±0.2mm
	Material	PE
	Color	Black

FAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, and you’re welcome to visit us.

2. How do you ensure product quality?
Every fiber is tested before delivery. Free samples can be provided for quality evaluation after price confirmation.

3. Do you accept small orders?
Yes, small orders are supported. We understand that business often starts with small quantities and welcome new projects.

4. What is your delivery time?
Typically 3–7 working days, depending on the order size. We will arrange shipment as soon as payment is confirmed.

5. Do you offer OEM service?
Yes, OEM is available. We can print your logo on the product and customize based on your ideas.

Specifications

Features	Light Weight & Reduced-Diameter
Fiber Count	2-288 Cores
Fiber Type	Single Mode/Multi Mode
Jacket	PE,MDPE,LSZH,PVC,HDPE
Color	Customized
Product Name	Outdoor Fiber Optic Cable
Model Number	GYFTY
Length	2km Or Customized Length
Structure	Strand Loose Tube
Installation	Aerial & Duct
Number Of Conductors	≥ 10
Fiber Grade	G.652D, G.657A1, G.657A2, G.657B3
Number Of Cores	1-12 Cores
Diameter	9.3mm
Material Of Jacket	Black Polyethylene(PE)
Operation Temp	-20℃~ +70℃
Temperature	-20 To 70°C
Outer Jacket Material	Shockproof Material
Fibers	48core
Armored	Double Armored
Fiber Counts	4-144cores
Fiber Count	2/4/6/8/12/24/48/72/96/144
Strength Member	Central Steel Wire
Wavelength	1310nm/1550nm
Highlight	outdoor fiber optic cable 144 core , GYFTY loose tube telecom cable , multi mode outdoor fiber optic
