Outdoor Armored GYXTW Optic Fiber Cable Single Mode 2-24 Core G652D duct construction

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO TLC
Model Number	gyxtw
Minimum Order Quantity	2000M
Price	EXW ≥2000m $0.088/M ≥5000m $0.084/M

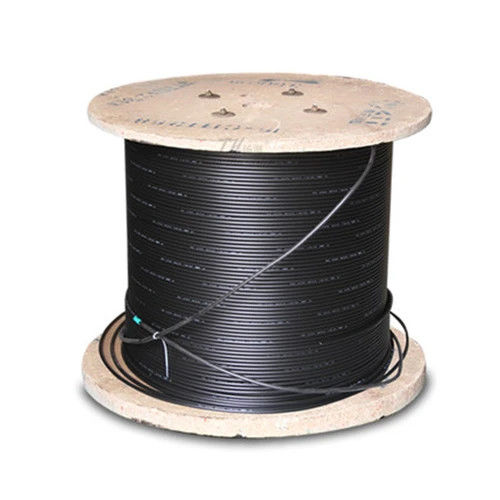

Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 days
Payment Terms	D/P, T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

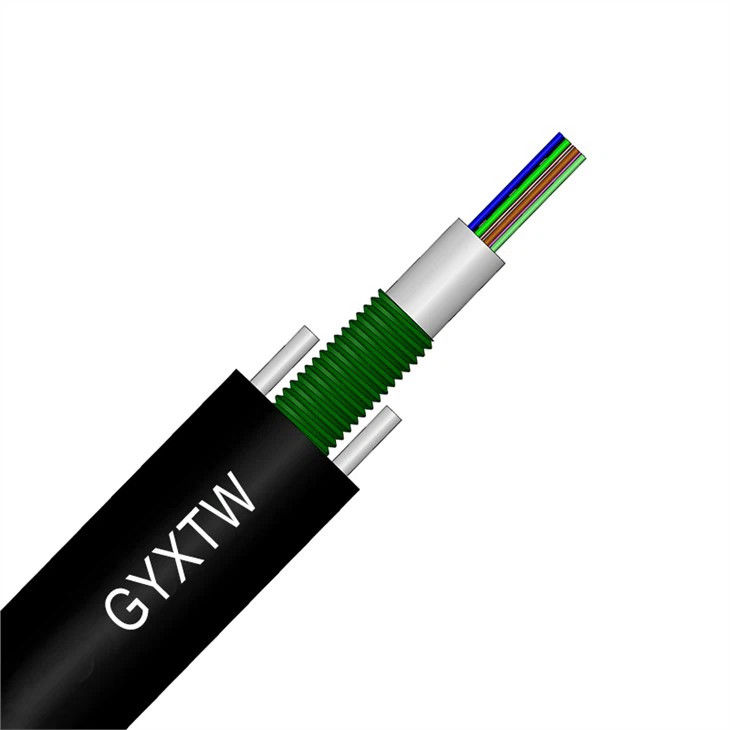

Armored single tube single-sheathed/single-armored optical cable, the optical fiber is placed in a loose buffer tube. The cable core is protected by corrugated steel tape armouring and covered with a black polyethylene sheath. Two embedded steel wires provide the required tension.

Product structure:

Fiber: 2-24 fiber

Single loose tube gel filling

Armouring: corrugated steel tape

Reinforcement: embedded steel wire

Jacket: black UV and moisture resistant polyethylene (PE).

Features:

The single tube gel-filled structure provides superior fiber protection.

CST armor protects cables from rodent attacks and mechanical damage.

The embedded wire provides ideal tensile and compressive strength.

Compact and easy to install.

UV and moisture-proof design

Application field:

Installed in the pipe, buried directly.

Fiber to the home.

Optical Characteristics:

Fiber Type		G.652	G.655	50/125^m	62.5/125^m
Attenuation (+20X)	850 nm			<3.0 dB/km	<3.3 dB/km
	1300 nm			<1.0 dB/km	<1.0 dB/km
	1310 nm	<0.36 dB/km	<0.40 dB/km
	1550 nm	<0.22 dB/km	<0.23 dB/km
Bandwidth	850 nm			>500 MHz-km	>200 Mhz-km
Bandwidth	1300 nm			>500 MHz-km	>500 Mhz-km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength cc		<1260 nm	<1450 nm

Cable Model	GYXTW
Core	2-24
Brand	JQ
Sheath Material	PE
Fiber Type	G652D, Om1 Om2 Om3 Om4 9/125 50/125 62.5/125
Armored	Corrugated Steel Tape/Aluminium Tape
Strength Member	Two Parallel Steels
