Outdoor Duct GYXTW Cable 2-24 Cores G652D SM PE jacket Centroltube Aerial connecting for long distance communication

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO TLC
Model Number	GYXTW
Minimum Order Quantity	2000M
Price	EXW ≥2000m $0.086/M ≥5000m $0.084/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 days
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

Product description:

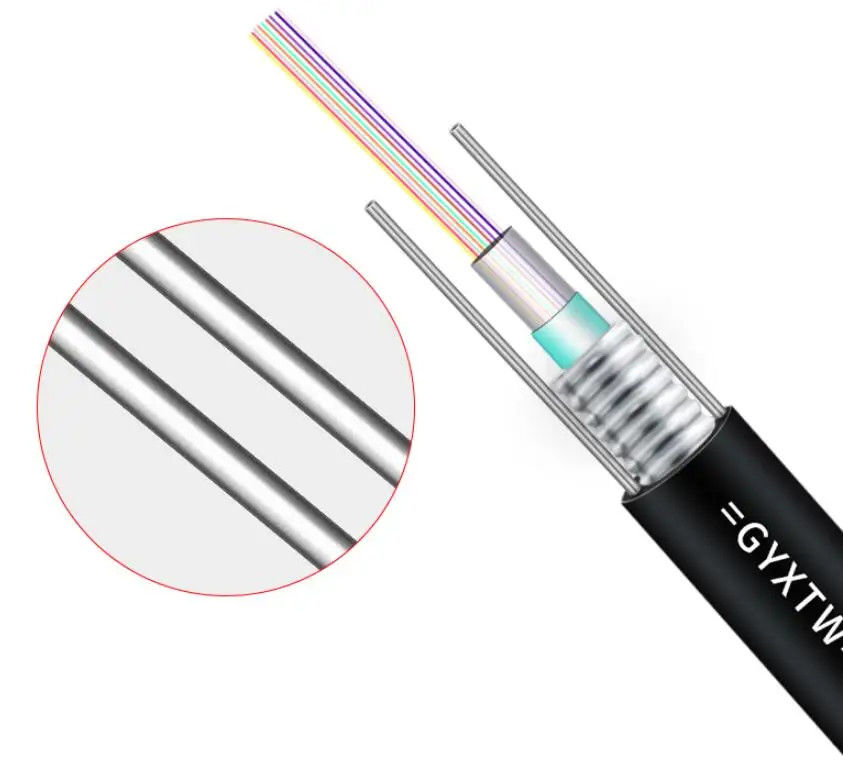

The fibers are placed in PBT loose tubes. The tube is filled with a waterproof filling compound. The tube body is covered with PSP lengthwise. A water-blocking material is applied between the PSP and the loose sleeve to keep the cable compact and waterproof. Two parallel steel wires are placed on either side of the strip. The cable is equipped with a PE sheath. Small core number optical fiber communication applications. (Max. 24 cores)

Features:

Steel-wire parallel member and steel tape armored for fiber protection
Excellent mechanical and environmental performance
Compact and lightweight structure
Convenient installation and simple operation

Application:

Outdoor distribution
Suitable for aerial and pipeline installation
Used for long-distance and local area network communication

Specifications
Cable type	Central tube
Fiber type	SM/MM
Strengthen Member	Paralleled steel wire 0.8mm
Cores	Up to 12
Sheath Material	Single PE
Armor	Corrugated steel tape
Operating Temperature	-40ºC~70ºC
Loose tube	PBT

Cable Diameter	8.1mm to 9.8mm
Crush Resistance(Short term)	1000N
Crush Resistance(Long term)	300N
Bending Radius Dynamic(mm)	20D
Bending Radius static(mm)	10D
Tensile strength(short term)	1500N
Tensile strength(long term)	600N

Cable Model	GYXTW Fiber Optic Cable
Core	2-24 Fibers
Material Of Jacket	PE Flame Retardant PE/Anti-Rodent PE

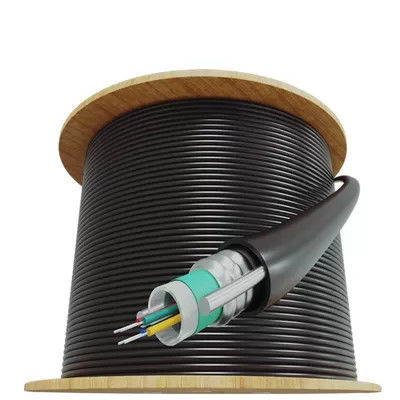

Transport Package	Wooden Drum
Trademark	OEM
Origin	China
