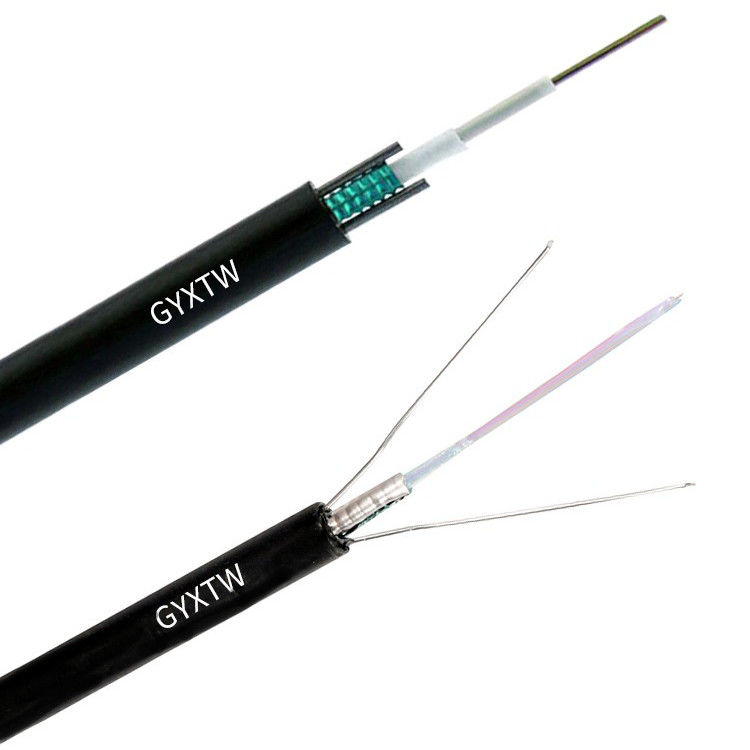

PE Jacket GYXTW Outdoor Fiber Optic Cable Single Mode Central Loose Tube Armored Cable for Aerial Duct Installations
| Place of Origin | China |
| Brand Name | JQ |
| Certification | ISO |
| Model Number | GYXTW |
| Minimum Order Quantity | 2000M |
| Price | 0.02 USD per Meter |
| Standard Packaging | Plywood Drum or Custimized |
| Delivery Time | 3-10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Description
The GYXTW 4 Core Fiber Optic Cable is an outdoor-rated single-mode cable built for durability and high-speed data transmission. It features a central loose tube filled with water-blocking jelly to ensure moisture resistance, along with two parallel steel wires for tensile strength. The corrugated steel tape armor enhances mechanical protection, making this cable ideal for direct outdoor installation, including aerial suspension and conduit laying.
Perfect for long-distance communication, fiber to the home (FTTH), and backbone network systems, this cable ensures consistent performance in a wide range of environments.
Key Benefits
-
Central Loose Tube with 4 Single Mode Fibers (G652D / G657A)
-
Corrugated Steel Tape Armored for Mechanical Protection
-
Two Parallel Steel Strength Members for Added Stability
-
UV-Resistant Polyethylene Outer Sheath
-
Water-blocking Design for Outdoor Use
-
Excellent Performance in Aerial and Pipeline Installations
-
Low Signal Attenuation, Long Transmission Distance
-
Meets IEC, RoHS, and ISO Quality Standards
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Count | 4 cores (Single Mode – G652D or G657A1/A2) |

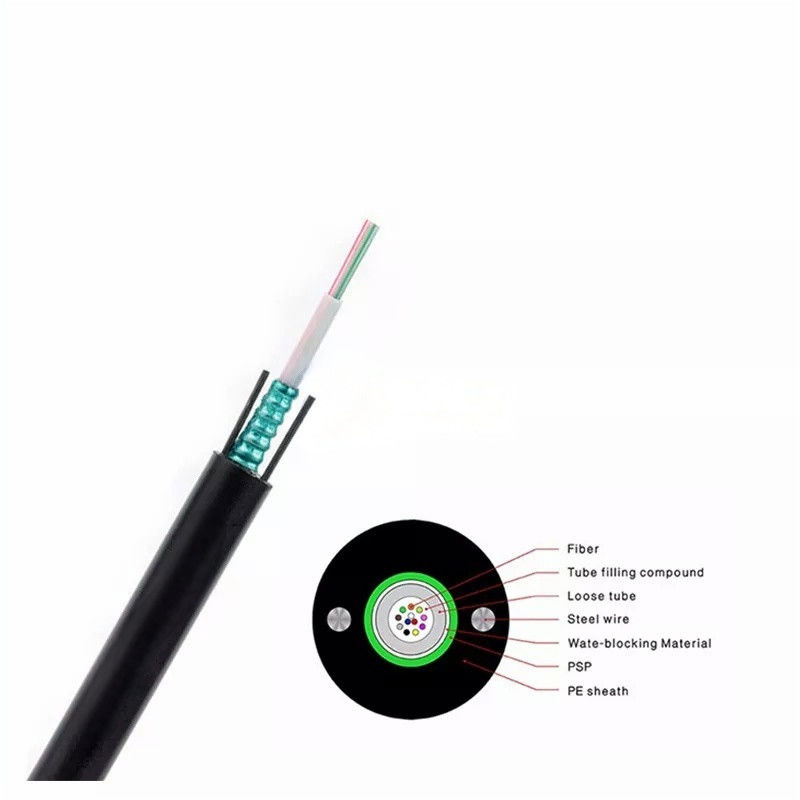

| Cable Structure | Central loose tube, jelly-filled |
| Strength Member | Two parallel steel wires |
| Armor Type | Corrugated steel tape |
| Outer Sheath | Black UV-resistant PE |
| Outer Diameter | Approx. 7.0 mm |
| Operating Temp. | -40°C ~ +70°C |
| Installation Method | Aerial / Duct / Pipeline |
| Application Areas | FTTH, FTTx, LAN, Backbone Transmission |
| Application | Telecommunication,FTTH FTTB FTTX Network,Aerial/Duct |
| Fiber Type | G652D |
| Fiber Count | 4 Cores |
| Jacket Material | PE |
| Packing | 2-4km/wooden Drum |
| Strength Member | Steel Wire/ Steel Tape |
| Oem | Accpet |
