Strong tensile resistance ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color

Strong tensile resistance ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO
Model Number	ADSS -8B1.3
Minimum Order Quantity	2000M
Price	≥2000m $0.14/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

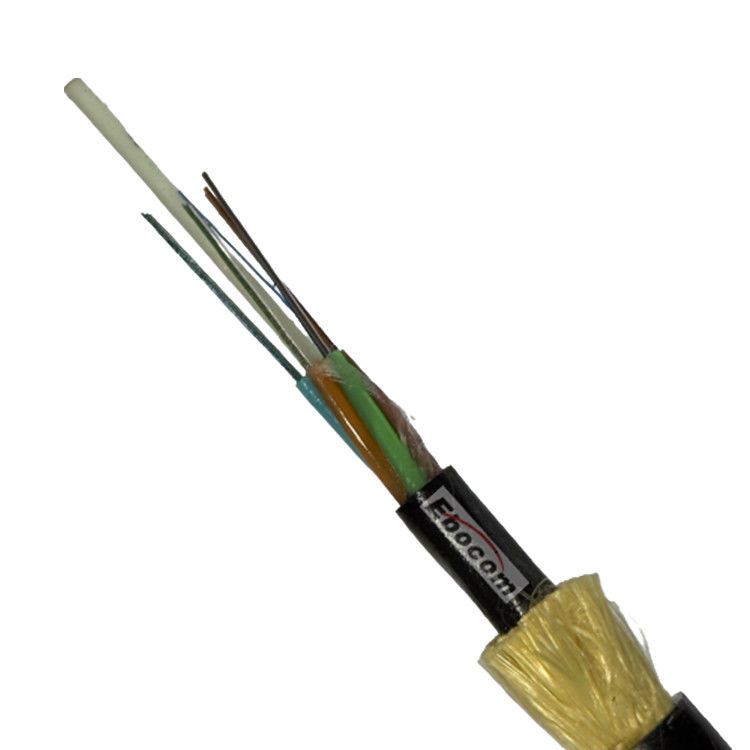

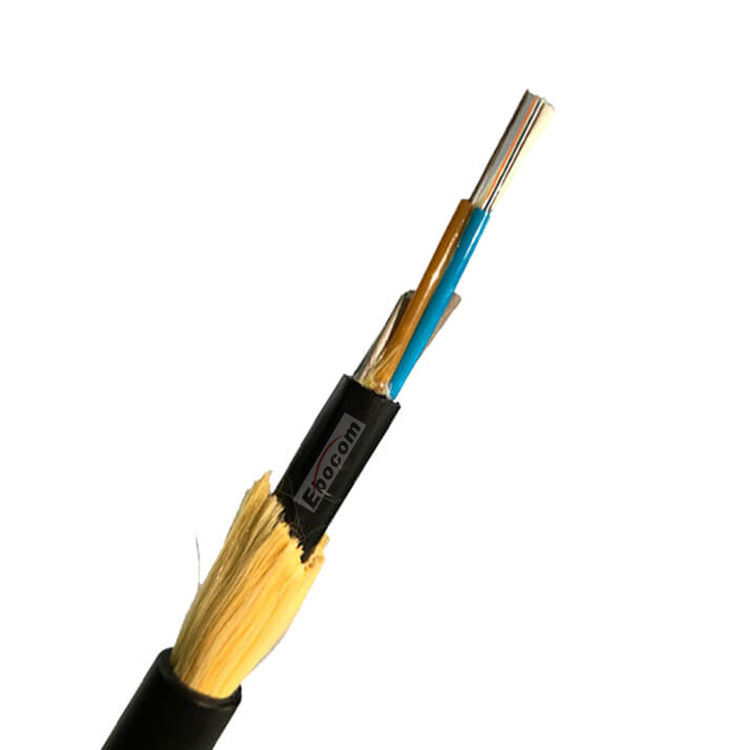

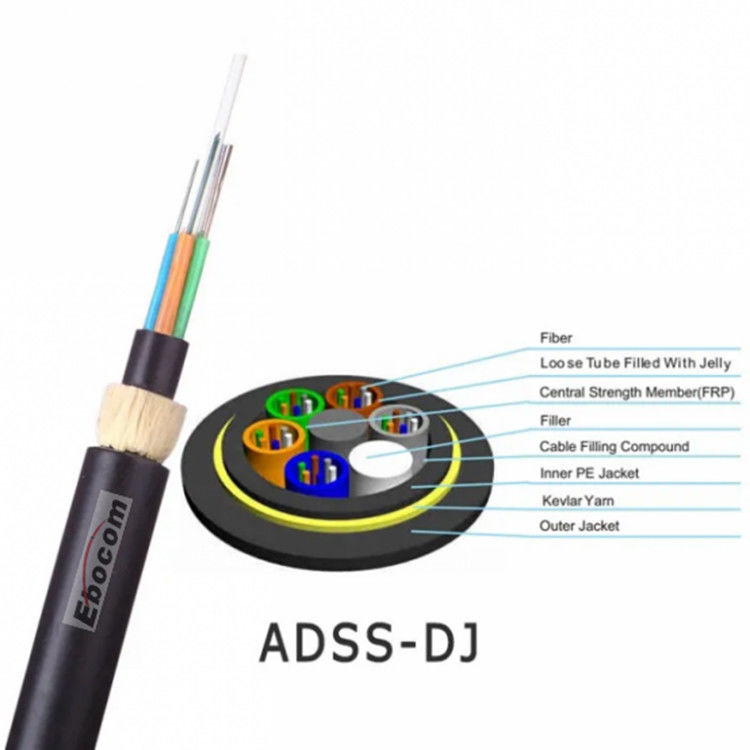

ADSS (single sheath) is constructed with a 250μm optical fiber sheathed in a loose bushing (PBT) filled with a waterproof compound.

The center of the cable core is a fiber reinforced composite (FRP) non-metallic center reinforcement core.

The core is twisted into a compact and rounded core around the center reinforcement core, the gaps inside the core are filled with water barrier filler, a layer of water barrier tape is extruded outside the core, and aramid yarn is evenly wrapped around the core covered with water barrier tape, and then a polyethylene (PE) sheath is extruded to form the cable.

Strong tensile Resistance ADSS Fiber Optical Cable 8 core span 100 200 300 single Sheath PE Jacket Black color

Main Features:

Small cable diameter, very light weight, long-span availability is subject to sag-tension calculation, wind/ice load, installation conditions and technical confirmation by JQ, and low additional load on the tower;
High tensile strength, which can exceed 90KN;
Non-metallic structure, good insulation, lightning protection;
Construction without power failure, and power line failure does not affect the normal transmission of overhead fiber optic cable;
Single-mode, multi-mode fiber and integrated fiber optic cable design;
Full dielectric cable structure for installation and maintenance;
Wide temperature range, low coefficient of linear expansion, to meet the requirements of harsh environments

Structure & Technical Specifications:

Fiber parameter(G.652D)
Item		Unit	G.652D
MFD		μm	8.6～9.5±7
Cladding Diameter		μm	125±1
Cladding Non-circularity		%	S1
Diameter of coating layer		μm	245±10
Attenuation Coefficient	@1310nm	dB/km	≤0.36
Attenuation Coefficient	@1550nm	dB/km	≤0.22
Dispersion	1280~1330nm	ps/nm/km	≤0.35
Dispersion	1550nm	ps/nm/km	≤0.18
Zero dispersion wavelength		nm	1300～1322
Partial positive mode dispersion coefficient		ps/ √km	≤0.2

The company always adheres to the business philosophy of “scientific and technological innovation, integrity-based”, and has established a complete product quality control system. With good reputation, high -quality products, excellent service and a number of enterprises to establish a long-term cooperative relationship.
We are factory direct , can provide the high quality optical cable with competitive price. Welcome to be our distributor, contact us for a best price.

FOCUS ON QUALITY

development of reliable quality. All employees strictly

follow the principle of quality first and strive to

provide the highest quality products and services

has always used advanced management methods to

ensure that the entire service process is flexible and

effective.

quality, environmental and safety assurance systems

to design, produce and supply our full range of

optical fiber, optical cable and optical fiber

communication system products. The entire product

environment and safety management systems.

Recommend Products:

Model	ADSS
Place Of Origin	Shandong, China
Brand	JQ
Fiber Count	8/24/36/48/60/96/144/288
Loose Tube Material	PP/PBT
Applications	Aerial/Duct/Direct Burial
Packaging	Wooden Roll
Color Of Jacket	Black
Fiber Type	G652D
Jacket Material	PE/pvc
