ASU 80 12-Core Two-FRP Aerial FTTH Fiber Cable
Two FRP Aerial 12 Core ASU 80 Drop Fiber Optic Cable GYFFY Outdoor FTTH Cable Factory Price

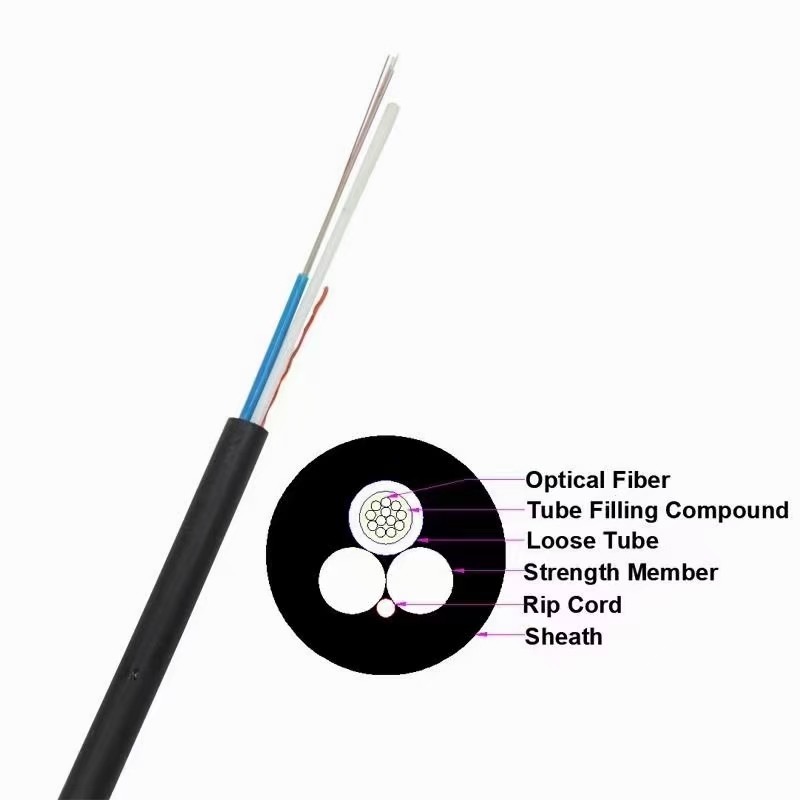

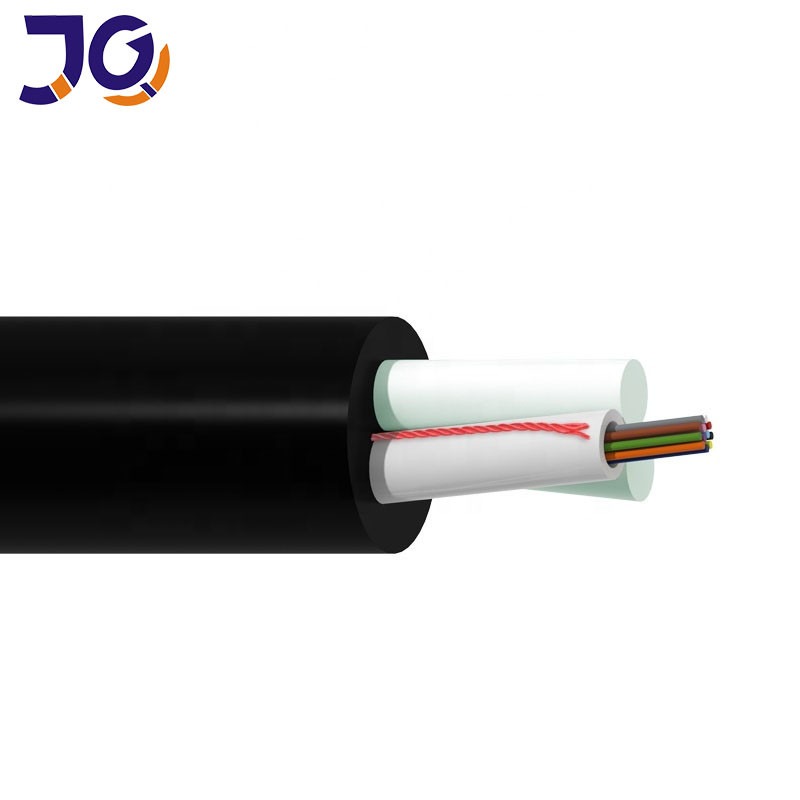

ASU cable uses a stranded loose-tube design. The 250μm fibers are housed in high-modulus PBT tubes, which are stranded around a central FRP non-metallic strength member to form a compact core. The core is filled with water-blocking compound and protected with a thin PE sheath.
Features
-
Compact structure and lightweight design
- Dual FRP strength members for enhanced tensile performance
- Optional gel-filled or gel-free structure for reliable waterproofing
- Cost-effective with high fiber density
- Suitable for short-span aerial installation and duct laying
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical parameter
| Cable Core | Unit | 2F | 4F | 6F | 8F | 10F | 12F |
| No. Of Tubes | 1 | 1 | 1 | 1 | 1 | 1 | |
| No. Of fibers | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Fiber Counts in tube | core | 2 | 4 | 6 | 8 | 10 | 12 |
| Cable Diameter | mm | 6.6±0.5 | 6.8±0.5 | ||||
| Cable Weight | Kg/km | 40±10 | 45±10 | ||||
| Allowable tensile Strength | N | Span=80,1.5*P | |||||
| Allowable crush resistance | N | 1000N | |||||
| Operation temperature | ℃ | -20℃ to +65℃ | |||||
FAQ
1. Are you a trading company or manufacturer?
We are a professional manufacturer with over 10 years of experience in fiber optic cable, drop cable, and patch cord production. Our factory is located in Guangzhou, and you are always welcome to visit.
2. How is the product quality ensured?
Every fiber is fully tested before shipment. After price confirmation, free samples can be provided for quality checking.
3. Do you accept small orders?
Yes, small orders are welcome. We support new projects and understand that many businesses start with small quantities.
4. What is the delivery time?
Generally 3–7 working days, depending on the order quantity. We will arrange shipment as soon as your payment is received.
5. Do you offer OEM service?
Yes, OEM is available. We can print your logo and customize according to your requirements.
Specifications
| Fiber Count | 12 24 Core |
| Type | Aerial |
| Span Length | 80m Or 100m |
| Fiber Model | G652D, G657A1, G657A2 |
| Sheath | PE/LSZH/PVC/MDPE/HDPE |
| Strength Member | FRP/KFRP |
| Sheath Color | Black Or Customize |
| Fiber Brand | YOFC/Fiber Home/Fujikura/Corning |
| Highlight | FRP aerial fiber optic cable , 12 core ASU 80 drop cable , outdoor FTTH cable with warranty |
Basic Information
| Place of Origin | Guangzhou,China |
| Brand Name | JQ/OEM/Customize |
| Certification | ISO9001 ROHS CE-EMC FCC SDOC |
| Model Number | ASU Cable/GYFFY |
Payment & Shipping Terms

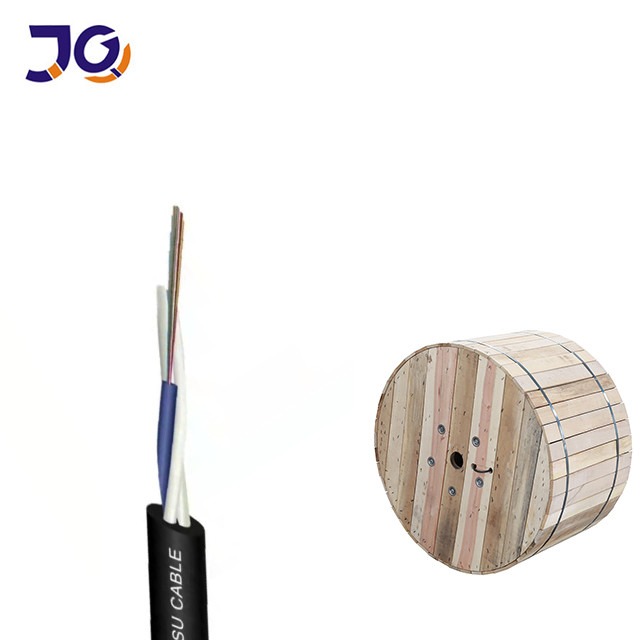

| Packaging Details | wooden drum |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 4500KM Per Month |
