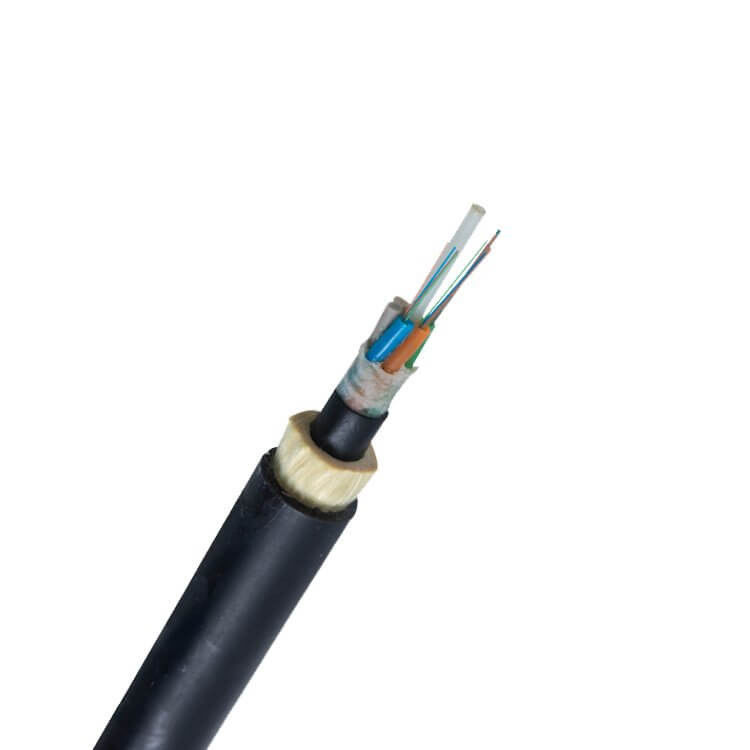

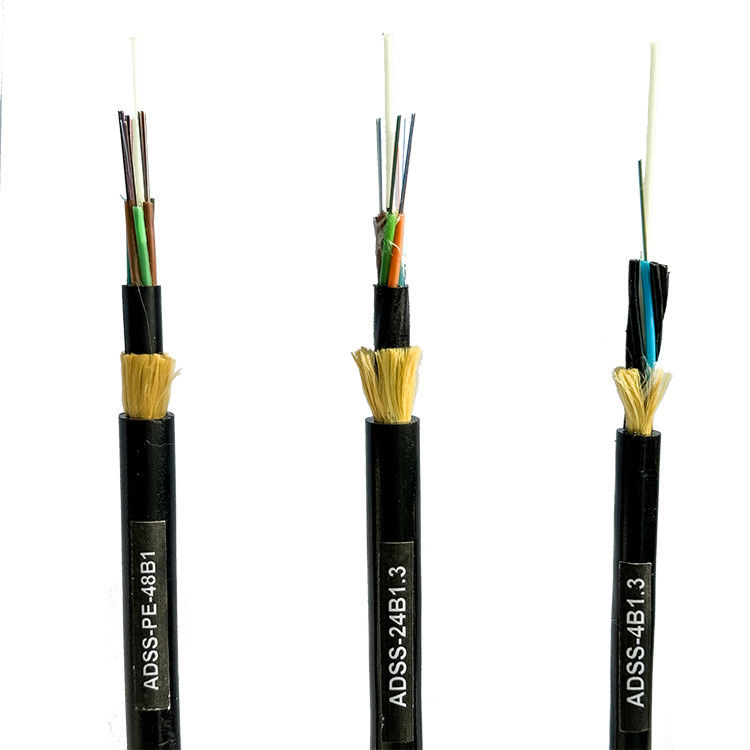

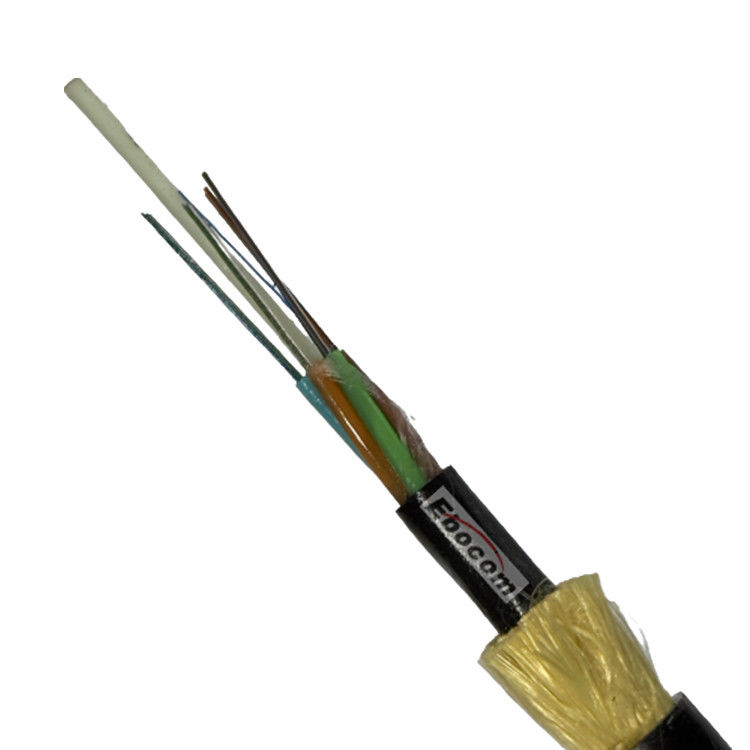

UV Resistant High Tensile Strength ADSS Fiber Optic Cable with Thermal Stability for Outdoor Use
| Place of Origin | China |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | ADSS -108B1.3 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.97/M ≥5000m $0.95/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8work days |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
- Superior Insulation & Safety: The non-metallic design provides excellent insulation performance, eliminating interference from lightning or electromagnetic fields.
- High Tensile Strength: Built with high-modulus Aramid Yarn reinforcement, it withstands extreme tension and supports large spans. It is also engineered to resist external damage such as bird pecks and accidental gunfire.
- Lightweight & Weather Resistant: The multi-core fiber structure and light weight reduce the physical load on towers while minimizing the negative effects of snow, ice, and wind.
- Thermal Stability: With a low thermal expansion coefficient, the cable sag remains consistent even under significant temperature fluctuations, ensuring long-term safety.
- Dual-Layer Sheath Options: Available in PE (for standard environments) or AT (Anti-Tracking) jackets to prevent electrical erosion on high-voltage lines.
Applications & Ideal Use Cases:
-
Grid Infrastructure: Reliable aerial installations along high-voltage power lines and utility poles.
-
Safety-Critical Zones: Optimized for high-voltage environments where non-metallic, anti-interference cables are mandatory.
-
Long-Haul Networks: Efficient data transmission for long-distance outdoor communication and backbone networks.
-
Rural Connectivity: Ideal for expanding broadband services and telecom infrastructure in remote or rural areas.
-
Municipal Projects: Professional-grade cabling for metropolitan area networks and smart city utility systems.

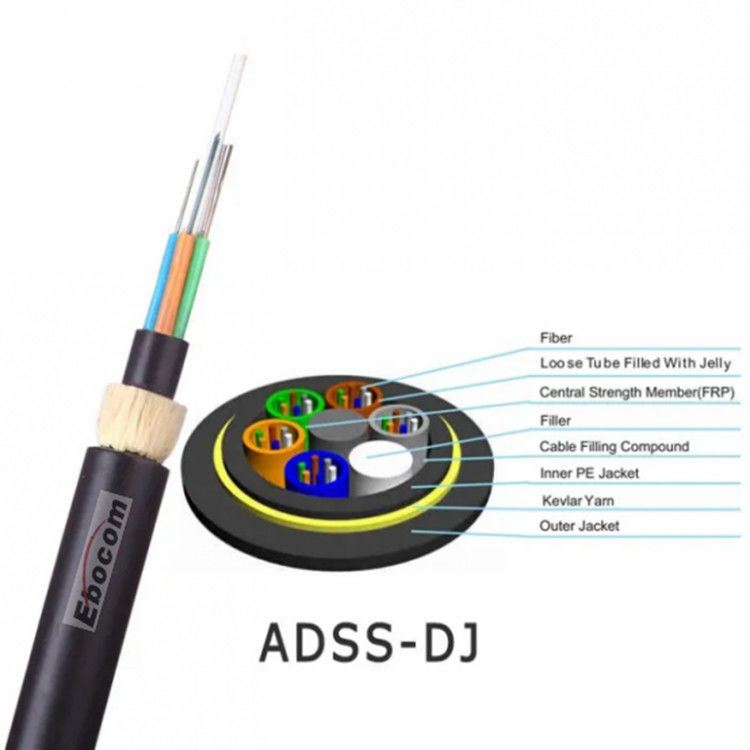

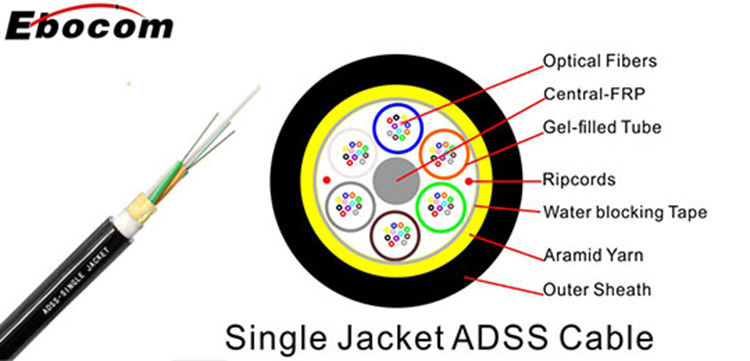

Technical Specifications:
Specification Details Product Name ADSS Fiber Optic Cable FiberType Single Mode (SM)G652D Core Count 24 Core Cable Design All-Dielectric Self-Supporting (ADSS) Reinforcement Material Aramid Yarn Outer Jacket Material High-density Polyethylene (HDPE) Tensile Strength Up to 4000 N Operating Temperature Range -40℃ to+70℃ Attenuation at 1310nm ≤0.36 dB/km Attenuation at 1550nm ≤0.22 dB/km Maximum Span Length Up to 1000 meters (depending on specific conditions) Installation Method Aerial(pole to pole,tower to tower,etc.) Cable Diameter Customized based on specific requirements Sheath Color Black (customizable upon request)
Why Choose Our ADSS Fiber Optic Cable?
-
Premium Signal Integrity: Utilizing G652D Single-Mode fibers, our cables guarantee ultra-low attenuation and superior high-speed transmission over long distances.
-
Extreme Mechanical Durability: Reinforced with high-modulus Aramid Yarn, the cable offers exceptional tensile strength and resilience against heavy wind, ice loading, and extreme temperature fluctuations.
-
Rapid & Efficient Installation: The lightweight, self-supporting design allows for quick aerial deployment on existing utility poles without extra support wires, significantly shortening project timelines.
-
Significant Cost Savings: The all-dielectric (non-metallic) structure eliminates the need for expensive grounding and bonding, drastically reducing both initial installation and long-term maintenance costs.
-
Versatile Deployment: Engineered for maximum flexibility, it is the ideal solution for everything from dense urban metropolitan networks to challenging remote rural telecommunications.
-
Engineering note: span capability depends on project-specific sag-tension calculation, wind/ice loading, installation conditions and the approved technical datasheet.
| Jacket Material | PE, HDPE |
| Sealing Structure | Heat Shrinkable/screw Thread Mechanical |
| Custom | Customized Available |
| Fiber Cores | 2-36cores |
| Adss Cable Jacket | Single/ Double AT PE(Black) |
| Certifications | Ce/ISO9001/Tlc |
| Colour | Black |
| Material | PP+GF |
| Package | 3km/roll Or Customized |
| Frp Member | 2PCS |
| Oute Sheath | Black PE/LSZH |
| Installation | Oveahead |
| Outer Jacket Material | UV Resistant Polyethylene |
| Outer Sheath | Black PE/LSZH |
| Reinforcement Material | Aramid Yarn |
