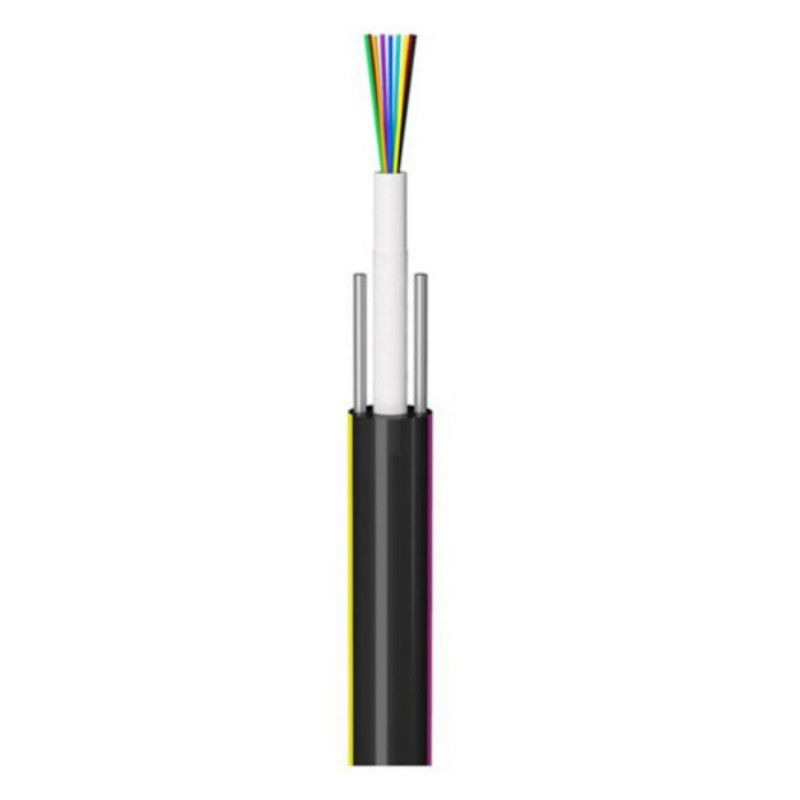

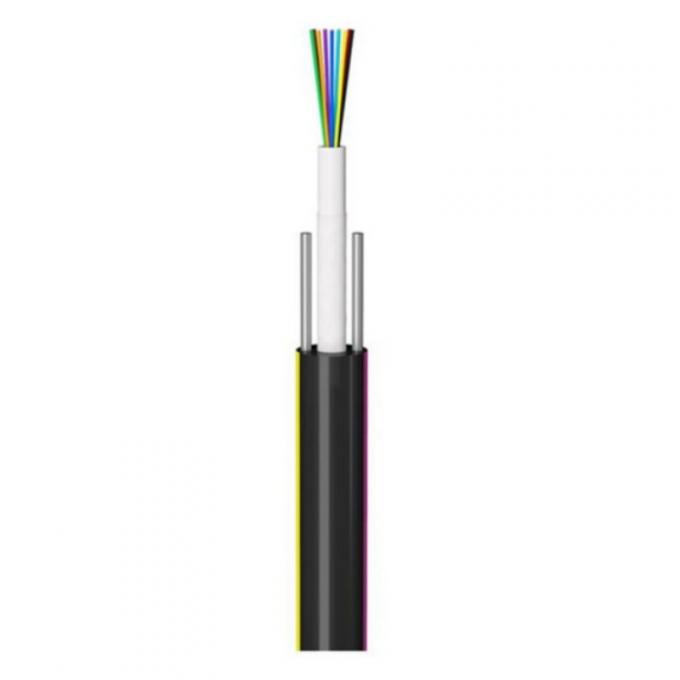

2-12 Core Single Mode G652D Non-Metallic Fiber Optic Cable for Outdoor Use

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO

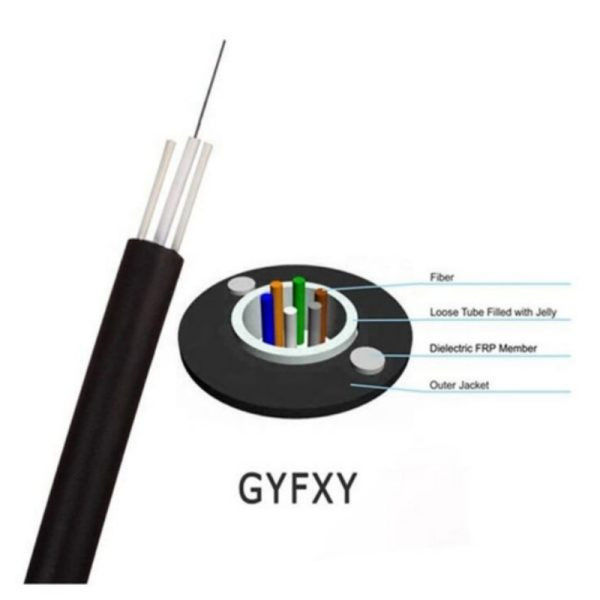

Model Number	GYFXY
Minimum Order Quantity	2000M
Price	EXW ≥2000m $0.032/M ≥5000m $0.03/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 days
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

GYFTY Non-Metallic Fiber Optic Cable – 2-12 Core Single Mode G652D Outdoor Cable

This premium 2-12 Core Non-Metallic Fiber Optic Cable (Model: GYFTY) is an all-dielectric, stranded loose tube outdoor cable engineered for high-performance telecommunication backbones, power transmission corridors, and local area networks. It features a completely metal-free structure, utilizing a high-strength Fiberglass Reinforced Plastic (FRP) central strength member.

The Single Mode G652D optical fibers are housed within high-modulus loose tubes filled with a waterproof gel compound, stranded around the central core, and protected by a weather-resistant Polyethylene (PE) outer jacket. This lightning-protected and anti-electromagnetic design makes it the ultimate solution for outdoor ducts and high-voltage power transmission environments.

Applications

Duct and Conduit Installation: Optimized for underground pipe networks, city communication conduits, and drainage pipes where moisture resistance and cable durability are critical.
All-Dielectric Aerial Routing: Suitable for pole-to-pole aerial deployment, especially in short-span configurations or areas with high wind and environmental loads.
High-Electromagnetic Environments: Perfectly designed for installation alongside high-voltage power lines, electrical railways, power substations, and lightning-prone regions where metallic cables present an electrical hazard.
Inter-Office Backbones: Ideal for campus backbones, enterprise private networks, and base station interconnections requiring reliable long-haul data transmission.

Key Features

All-Dielectric Non-Metallic Structure: Built with an FRP central strength member and entirely metal-free components. It prevents lightning strikes, eliminates electromagnetic interference, and completely removes the need for expensive electrical grounding.
Premium G652D Single Mode Fiber: Contains up to 12 cores of top-grade G.652D single-mode fiber, providing ultra-low attenuation and dispersion across standard 1310 nm and 1550 nm wavelengths for long-distance data transmission.
Stranded Loose Tube Gel-Filled Core: Fibers are distributed into color-coded PBT loose tubes filled with thixotropic gel. This provides a safe buffer against external mechanical stress and environmental temperature fluctuations.
Comprehensive Longitudinal Water-Blocking: The cable core matrix is bound with water-blocking yarn and tape, creating a reliable moisture barrier that prevents water ingress or migration under the jacket.
UV-Resistant High-Density PE Jacket: Coated with a premium black Polyethylene (PE) outer sheath that offers exceptional resistance to ultraviolet radiation, environmental stress-cracking, and extreme weather.

Product Specifications

Item	Specifications
Cable Model	GYFTY (Stranded Loose Tube, All-Dielectric)
Fiber Count	2, 4, 6, 8, 12 Cores
Fiber Type	Single Mode G.652D (OS2 Standard)
Central Strength Member	Non-Metallic FRP (Fiber Reinforced Plastic)
Loose Tube Material	High Modulus Polybutylene Terephthalate (PBT)
Water Blocking Material	Water-blocking tape, yarn, and tube filling gel
Outer Jacket Material	High-Density Polyethylene (HDPE / PE)
Jacket Color	Black (Standard UV Protective Color)
Cable Outer Diameter	Approx. 9.5 mm to 10.2 mm
Cable Weight	Approx. 75 kg/km to 85 kg/km
Max. Tensile Strength	Long-term: 600 N / Short-term: 1500 N
Crush Resistance	Long-term: 300 N/100 mm / Short-term: 1000 N/100 mm
Min. Bending Radius	Static: 10x Cable OD / Dynamic: 20x Cable OD
Operating/Storage Temperature	-40 °C to +70 °C
