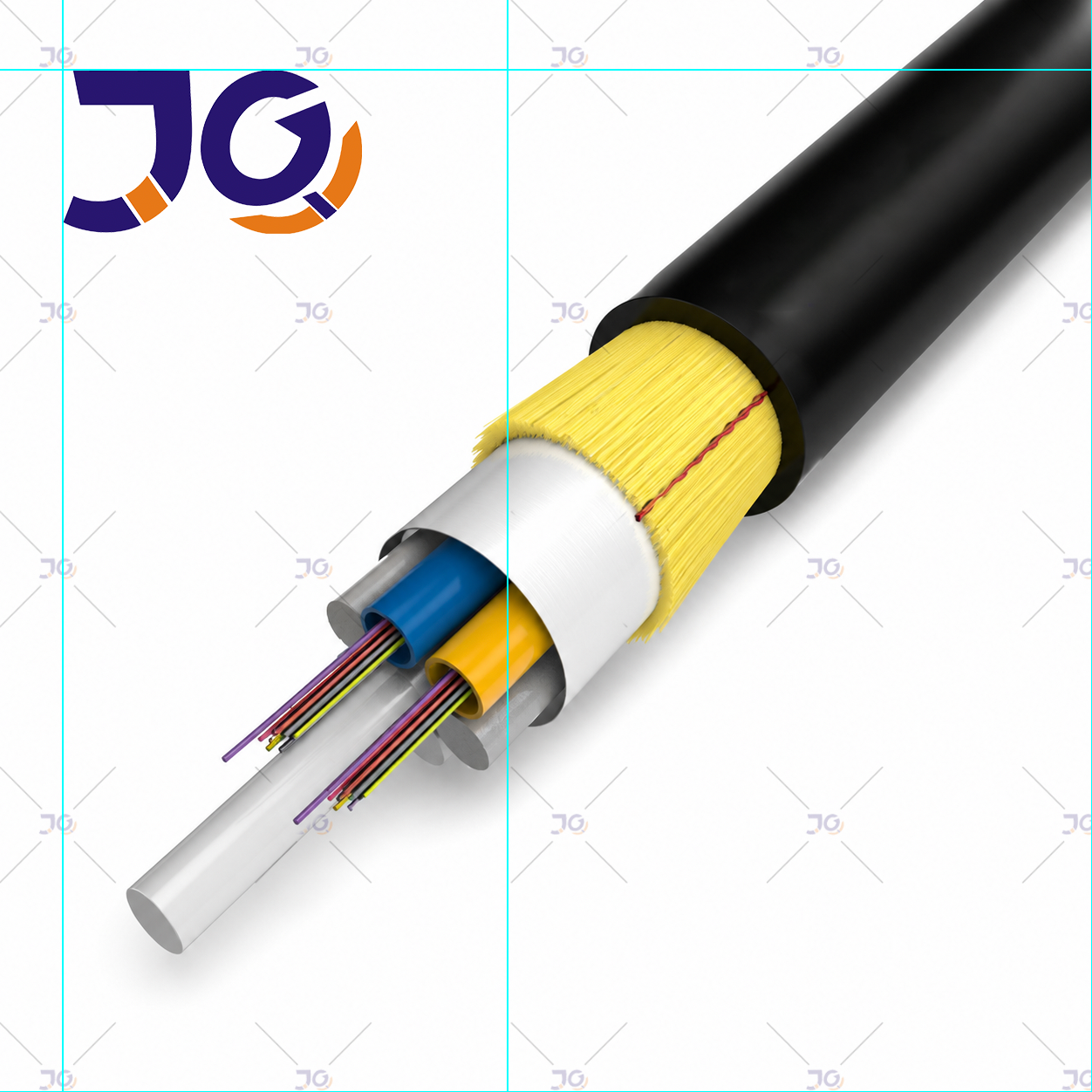

24 Core Single Mode 9/125 G652D ADSS Fiber Cable For 100m Span

Product Description

Precisely Engineered for Professional Network Deployments

This 24 Core Single Mode 9/125 G652D cable, designed as an all-dielectric self-supporting solution, targets telecom contractors, system integrators, and infrastructure planners requiring reliable aerial installation options. As an adss aerial fiber optic cable, it facilitates deployment in local and campus networks while supporting spans up to 100 meters without power interruptions during installation. Our company, as a leading adss fiber optic cable manufacturer, provides a specialized product that addresses the operational needs of engineering teams managing high-voltage transmission corridors and duct environments.

Key Technical Attributes for Consistent Optical Performance

The cable features ITU-T G652D single-mode fibers contained within gel-filled PBT loose tubes reinforced by aramid yarn and a fiber reinforced plastic central strength member. A UV-resistant HDPE jacket ensures environmental protection. With attenuation values of ≤0.36 dB/km at 1310 nm and ≤0.22 dB/km at 1550 nm, the adss fibre optic cable offers low signal loss. Its nominal diameter of approximately 10.5 mm and tensile ratings up to 4000 N installation load optimize structural compatibility while ensuring reliability. Compliance with IEC 60794-4, IEC 60793, and TIA/EIA-598 standards guarantees stable long-term performance.

Application-Centered Design for Diverse Infrastructure Needs

This adss fiber cable meets critical demands in aerial fiber optic installations and network loop architectures, particularly for telecommunications and power grid projects requiring corrosion resistance and lightweight cable solutions. Its durability under UV exposure and temperature variations suits outdoor duct and high-voltage environments without compromising optical integrity. The cable’s design life exceeding 30 years contributes tangible value to infrastructure investments, meeting the quality control benchmarks expected from a reputable fiber optic cable supplier in global markets.

Product Advantages

Structural and Design Superiority for Aerial Installations

The design of this adss aerial fiber optic cable integrates an all-dielectric, self-supporting architecture that eliminates the need for metallic elements, reducing interference risks and complying with electrical safety requirements. Reinforced with aramid yarn and a fiber reinforced plastic central member, the cable withstands installation and operational tensile loads up to 4000 N and 2000 N respectively. The gel-filled loose tube design ensures moisture resistance and mechanical protection. Our position as a reliable adss fiber optic cable manufacturer guarantees adherence to international standards, supporting modular integration within complex fiber networks without compromising system integrity.

Optimized Performance and Operational Efficiency

From a performance perspective, this adss fibre optic cable offers reduced optical attenuation and excellent environmental resilience, which simplifies maintenance and reduces downtime in critical communication infrastructures. Its capability to support installation without power shutdown reduces operational disruptions. Additionally, the cable’s lightweight construction minimizes load on existing support structures, aiding in ease of handling and installation. These user-centric features provide system integrators and network planners with a dependable adss fiber cable solution that enhances ROI through durability and efficient lifecycle management.

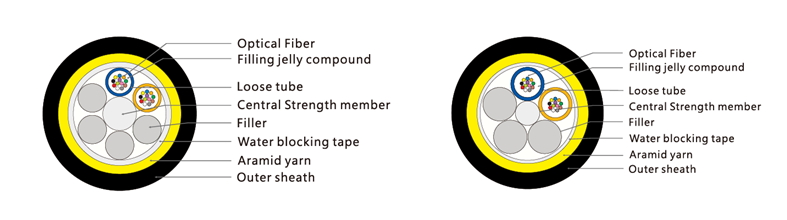

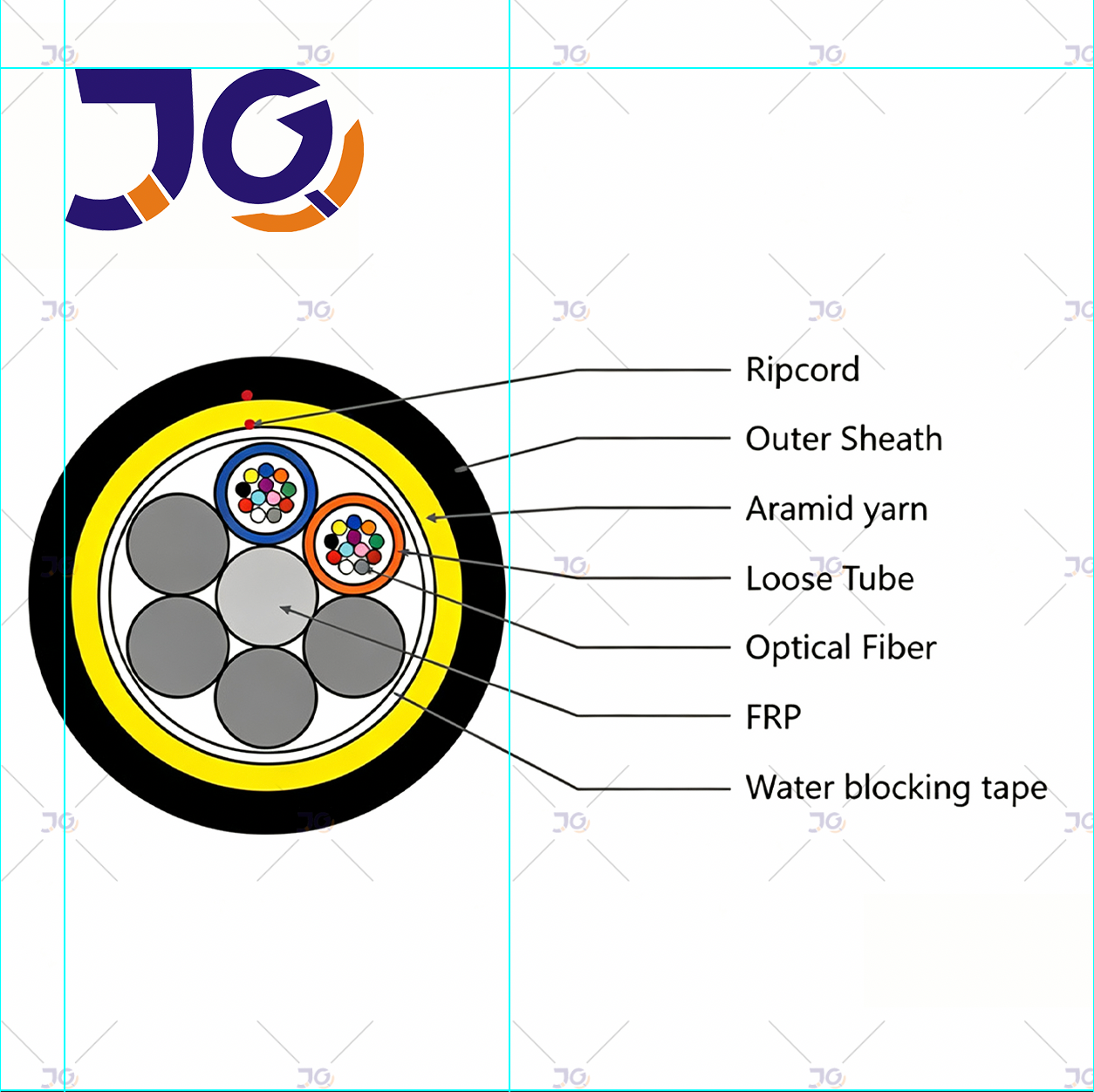

Structure Design:

Main Feature:

1. Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication；
2. Track -Resistant outer jacket available for the high voltage (≥35KV); HDPE outer jacket available for the high voltage (≤35KV)；
3. Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
4. Gel-Filled buffer tubes are S-Z stranded;
5. Can be installed without shutting off the power.
6. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
7. Good performance of tensile strength and temperature.
8. The design life span is over 30 years.

Standards:

JQ Technology’s ADSS Fiber Cable complies with IEC 60794-4, IEC 60793, TIA/EIA 598 A standards.

Advantages of JQ ADSS Optical Fiber Cable:

1.Good aramid yarn have excellent tensile performance;
2.Fast delivery, 200km ADSS cable regular production time about 10 days;
3.Can using glass yarn instead of aramid to anti rodent.

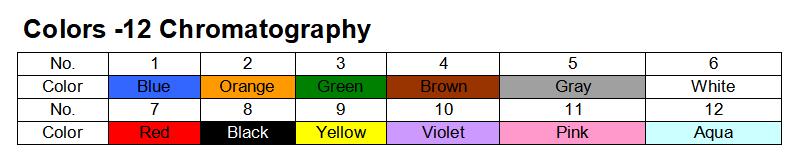

Colors -12 Chromatography：

 Optical Fiber Characteristics:

Typical Technical Parameter of 24 core ADSS Cable:

Remarks:

Detail requirements need to be sent to us for cable design and price calculation. Below requirements are a must:
A, Power transmission line voltage level
B, fiber count
C, Span or tensile strength
D, weather conditions

How to Ensure the Quality and Per

Technical Specifications

formance of Your Fiber Optic Cable?

We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , JQ also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).
