ADSS 72-Core G652D Single-Jacket Aerial Cable, 100 m Span

Outdoor SM G652D ADSS 72-Core Fiber Optic Cable 100 Span

Description:

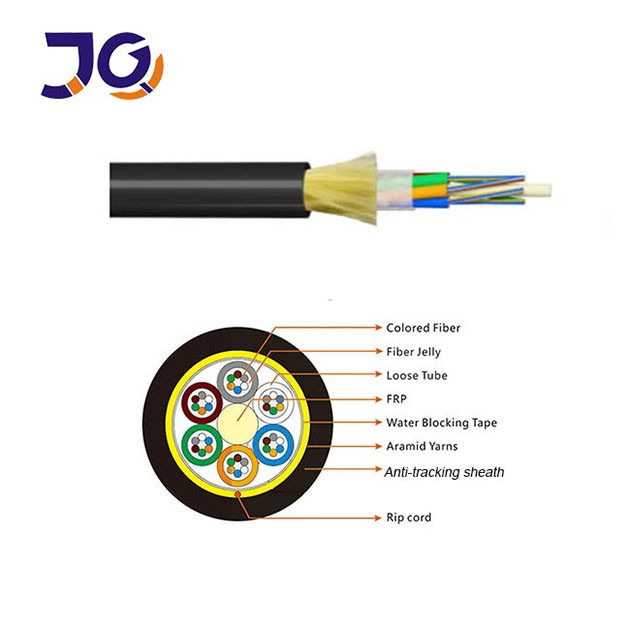

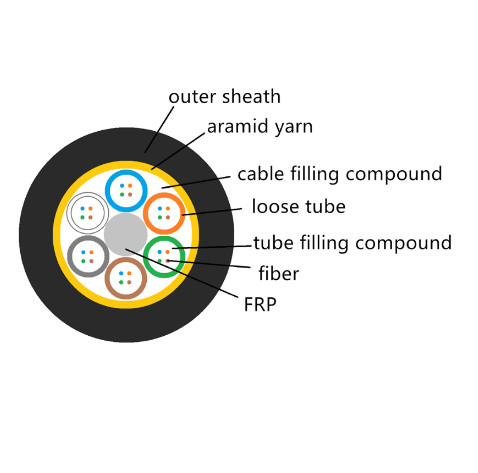

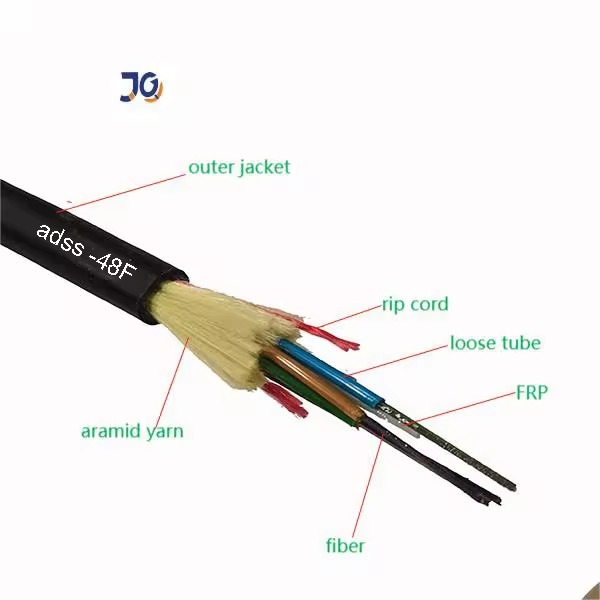

Loose-tube stranded ADSS cable with 250m fibers in high-modulus plastic tubes, filled with water-resistant compound. Tubes are stranded around a FRP central strength member, covered with PE inner sheath, aramid yarns for reinforcement, and finished with PE or AT outer sheath.

Features

Excellent mechanical and temperature performance
Hydrolysis-resistant high-strength loose tubes
Water-resistant filling compound protects fibers
Flexible and crush-resistant design
FRP central strength member
Fully filled cable core for watertight integrity

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.20.4
Mode Field Diameter	1550nm	um	10.40.5
Cladding Diameter		um	124.80.7
Cladding Non-Circularity		%	0.7
Core-Cladding Concentricity Error		um	0.5
Coating Diameter		um	2455
Coating Non-Circularity		%	6.0
Cladding-Coating Concentricity Error		um	12
Cable Cutoff Wavelength		nm	acc1260
Attenuation(max.)	1310nm	dB/km	0.36
Attenuation(max.)	1550nm	dBkm	0.22

Technical Data

Span : 100m	Cable type	72core Single Jacket ADSS
structural parameter	Central strength components : FRP	Diameter : 2.1mm
	Loose tube (jelly filled )	Outer diameter :1.8mm
	Inner sheath PE	Thickness : 0.9mm
	outer sheath PE	Thickness :1.8mm
Technical parameter	outer diameter of Cable	12.3mm
	cable cross-sectional area	95.03 mm2
	Fiber model	G.652D
	Weight of cable	145kg/km
	Rated tensile strength (RTS)	10 kn
	Minmum allowed tension(MAT)	4kn
	EDS	3.2kn
	E-modulus	12.1 kn/mm2
	Coefficient of thermal expansion	1.9 10-6/C
	Cruss resistance	Long term :1100 n/100mm
	Cruss resistance	short term:2200 n/100mm
	Permission bent radius	Long term (when running) 220 mm
	Permission bent radius	Short term (when laying) 360 mm

Structure and Technical Specifications ADSS-SJ(50-500m Span)

Ref.Outer Diameter (mm)	Ref.Weight kg/km)		Rec.DailyMax. Working Tension(kN)	Max Allowable Working Tension [kN)	Break Strength (kN)	Strength Member CSA. (kN/mm2)	Modulusof Elasticity CSA kNmm2)[	Heat Expansion Coefficient (X10-6/K)	SuitableSpan Meter ABICP
Ref.Outer Diameter (mm)	PE	AT		Max Allowable Working Tension [kN)	Break Strength (kN)	Strength Member CSA. (kN/mm2)	Modulusof Elasticity CSA kNmm2)[	Heat Expansion Coefficient (X10-6/K)	SuitableSpan Meter ABICP
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	\|60	32.2	19.1	0.1	750	530	750	510

Application

Suitable for aerial installation
Operating temperature: -40 to +70

Packaging

Export wooden drum, standard length 14km (custom lengths available)
Optional markings: company name, weight, fiber type, cable length
Test report included

FAQ

Manufacturer or trader? We are a manufacturer with 10years of experience in fiber optic cables, drop cables, and patch cords. Factory located in Guangzhou.
Quality? All fibers are tested before delivery. Free samples available.
Small orders? Accepted; we support new projects.
Delivery time? Typically 37 working days, depending on quantity.
OEM service? Available; logo printing and custom ideas supported.

Specifications

Fiber Type	Single Mode Or Multi Mode
Fiber Count	72 Core
Color	Black
Length	2km Or Customized Length
Jacket Material	PE/HDPE/MDPE/AT
Name	72 Core ADSS Optical Fiber Cable
Strength Member	FRP(with PE If Needed) Glass Yarn
Application	Aerial,Overhead/ Direct Burial
Highlight	SM G652D ADSS fiber optic cable , 72 core aerial self supporting cable , single jacket outdoor fiber cable
