48 Core Double Jacket ADSS Fiber Optic Cable 200m Span Single Mode G652D

Product Overview

The 48 Core Double Jacket ADSS (All-Dielectric Self-Supporting) Cable is a heavy-duty aerial fiber designed for mid-to-long span power distribution corridors and telecommunication networks. This model is structurally optimized to clear 200-meter span distances safely without the support of a metallic messenger wire.

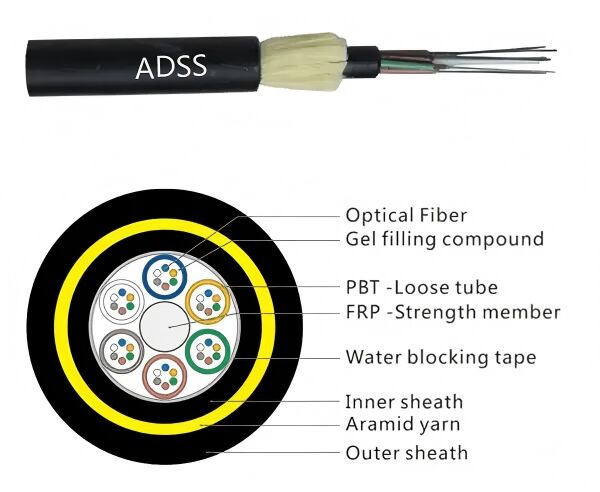

Featuring a robust double-sheath (double-jacket) construction, this cable provides an extra layer of mechanical armor against environmental weathering, ice loading, and cross-winds. Reinforced with high-modulus Aramid Yarn (Kevlar), its Maximum Allowable Tension (MAT) ranges dynamically from 2800N up to 5200N depending on your region’s specific weather conditions, ensuring that your 48 single-mode G.652.D fiber cores remain under zero mechanical strain.

Key Performance Advantages

• 200m Span Engineering: Packed with dense, high-strength aramid yarns to maintain perfect sag profiles across long-span utility pole clearances.

• Double Sheath Security: The internal HDPE/MDPE jacket plus an ultra-durable outer jacket offers dual-layer defense against mechanical punctures, high winds, and bird attacks.

• High MAT Range ($2800text{N} – 5200text{N}$): High structural resilience means the cable handles heavy ice and extreme wind loading conditions easily without degradation.

• 100% Non-Metallic Design: Safely co-locates on high-voltage power transmission lines up to 110kV without requiring power shutdowns, designed for environments where electromagnetic interference should be minimized.

• Premium G.652.D Cores: Offers low attenuation and zero water peak performance for long-haul and regional high-bandwidth distribution networks.

Technical Specifications (ADSS-48B1-200M-DJ)

Primary Application Scenarios

• High-Voltage Power Lines: Safely mounted on existing 10kV to 110kV distribution towers alongside electrical conductors.

• Regional Backbone Spans: Crossing small rivers, valleys, or wide multi-lane highways where tower spacing reaches up to 200 meters.

• FTTH Middle-Mile Networks: Deploying main distribution lines across rural or suburban regions with larger spacing requirements.

• Heavy-Weather Climates: The double jacket and dense aramid layer are built specifically to endure winter ice accumulation and monsoon-force crosswinds.

• Dynamic Tension & Sag Modeling: In our independent Material & Performance Research Center, we conduct strict stress-strain tests to calculate precise Sag-Tension curves for your 200m deployment. This ensures the MAT range matches your local climate loading perfectly.

• 100% Pure Virgin Materials: We use only authentic aramid yarn and pure high-density polyethylene for our sheaths, preventing premature aging, tracking, or cracking under constant outdoor UV exposure.
