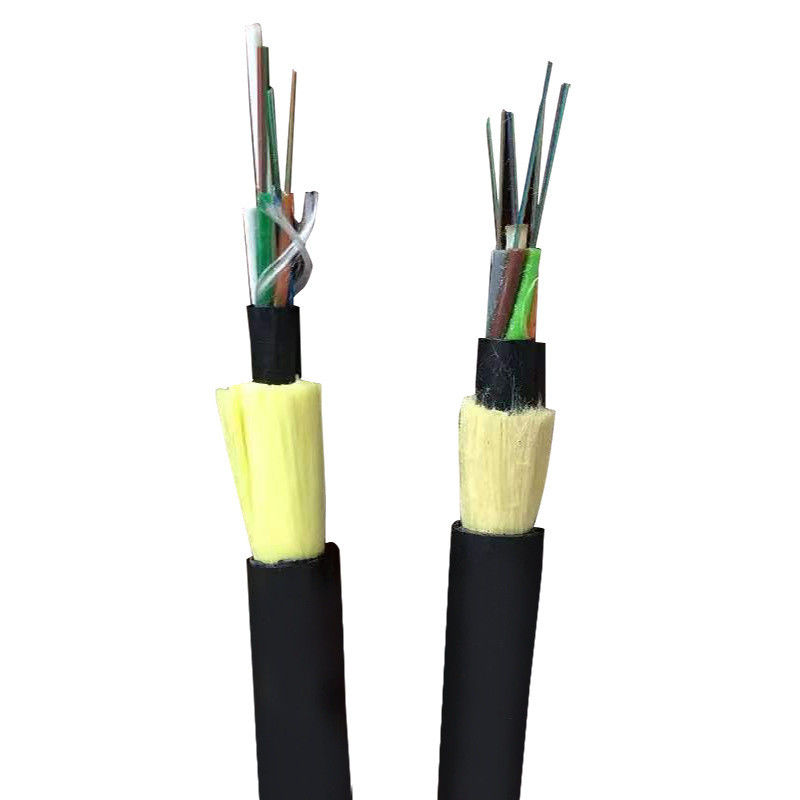

ADSS 48 Core Double jacket Outdoor Fiber Cable Aramid Yarn Strength UV Resistant for Power Line Communication

Place of Origin	Shandong
Brand Name	JQ
Certification	ISO
Model Number	DJ ADSS
Minimum Order Quantity	3KM
Price	USD0.1-0.2
Delivery Time	5-8
Payment Terms	L/C, D/A, D/P, T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

Product Title:

DJ ADSS Double Jacket All Dielectric Self Supporting Fiber Optic Cable – Long Span, High Voltage Safe, Outdoor Aerial

Product Description:

Built for the Toughest Jobs in the Sky
When your fiber network has to cross rivers, mountains, or hang beside high-voltage lines, you can’t take chances. The DJ ADSS Double Jacket Cable was made for exactly these extreme environments.
With its inner PE sheath for mechanical strength and outer Anti-Tracking (AT) jacket for electrical protection, this cable works day and night in places where others simply fail.

Why It Works Where Others Don’t

Double Shield of Protection: Inner PE for toughness + Outer AT jacket to prevent electrical tracking near power lines.
100% Dielectric: No metal, no grounding, no sparks – completely safe under high voltage conditions.
Span Champion: Engineered with high-tensile aramid yarn that supports long-span availability subject to sag-tension calculation, wind/ice load, installation conditions and technical confirmation by JQ.
All-Weather Warrior: Stable in blazing sun, heavy storms, freezing winters (-40°C to +70°C).
Signal Guardian: Loose tube gel-filling keeps fibers dry and performance steady for decades.

Typical Missions

Linking remote villages over rivers and valleys
Running backbone networks along power transmission routes
Bridging communication gaps between mountain substations
Deploying ISP and utility networks where trucks can’t reach

Technical Highlights

Parameter	Value
Fiber Count	48 cores
Fiber Type	SM (G.652D / G.657A1/A2) or MM (OM1 / OM2 / OM3)
Strength Member	Aramid yarn
Sheath	Inner PE + Outer AT (Anti-Tracking)
Max Span	Up to Long-span ADSS designs are available subject to project-specific sag-tension calculation, wind/ice loading, installation conditions and approved technical datasheet.
Tensile Strength	1000–15000 N
Installation	Aerial, pole-to-pole
Operating Temp	-40°C to +70°C

Packing the Right Way

Strong wooden or iron-wooden drums
2–6 km lengths for fewer joints and faster installation
Sea, air, or courier shipping available worldwide

Why Our DJ ADSS Wins Projects
We don’t just sell cable – we design for your route. Every order comes with span length calculation, installation advice, and the right jacket material for your environment. That’s why our DJ ADSS is running across over 60 countries without major failures.
