ADSS 96-Core G652D Double-Jacket AT-Sheath Cable for 600m Span
JQ 96-core G652D double-jacket ADSS fiber optic cable with tracking-resistant AT outer sheath, engineered for self-supporting overhead installation up to 600 m span.

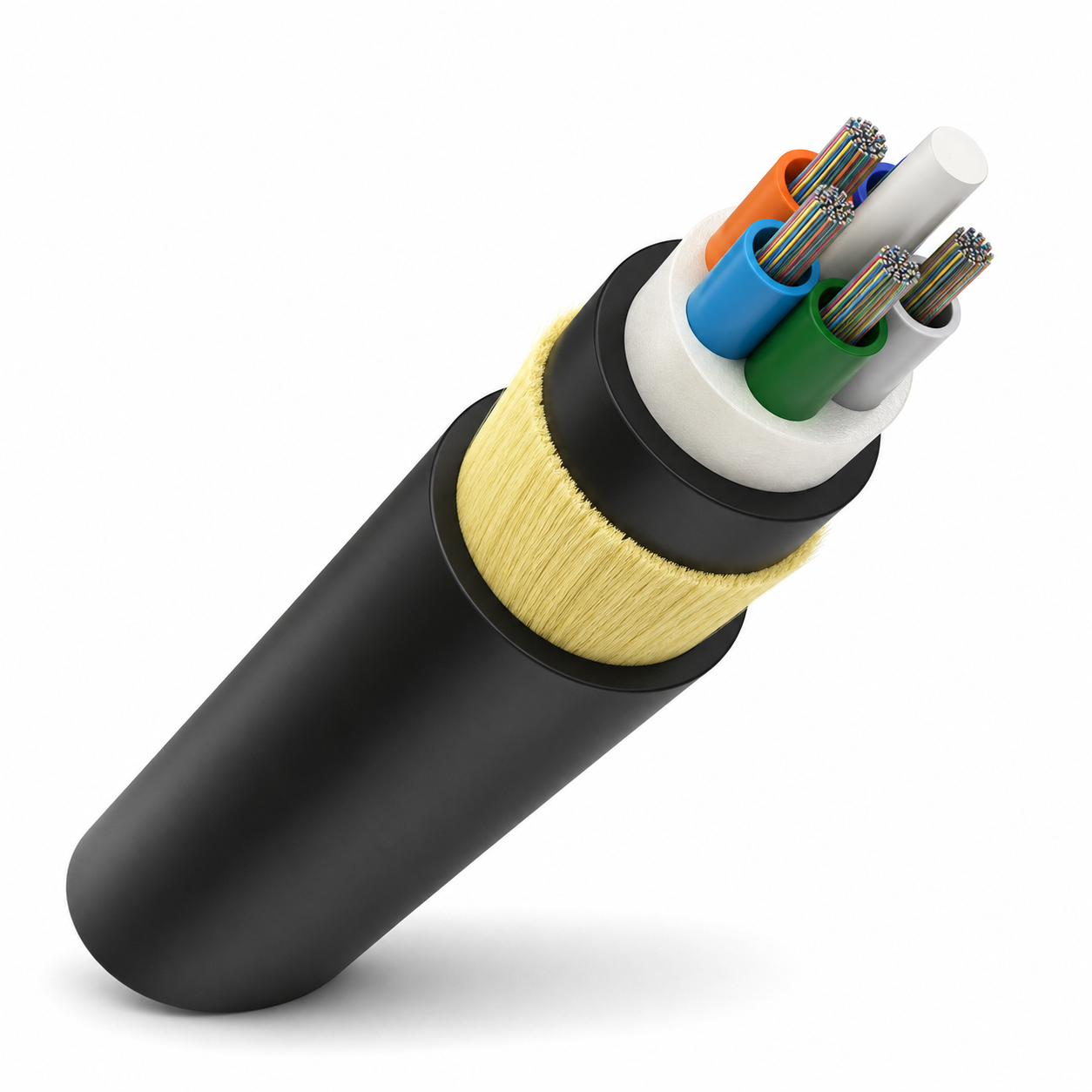

96-Core Long-Span ADSS Fiber Optic Cable
Product Description
Tailored Solutions for Infrastructure Providers and EPCs
Designed for utility companies, telecom operators, and infrastructure engineering firms, this overhead fiber optic cable performs reliably in challenging environments where structural integrity and electric field resistance are critical. The cable is an optimal choice for those requiring advanced opgw fiber optic cable and aerial fiber optic cable assemblies that meet rigorous installation standards across expansive power line and communication routes.
Advanced Construction and Rigorous Specifications
This opgw fiber cable features a stranded loose-tube configuration incorporating 96 single-mode fibers of ITU-T G652D specification, reinforced by high-strength aramid yarn. Its double-jacket AT outer sheath provides superior tracking resistance essential for high electric-field exposure. Engineered for self-supporting overhead spans up to 600 meters, this fiber optic cable manufacturer’s product complies with IEC 60794-4-20, ensuring precise mechanical and optical performance parameters are met under dynamic environmental loads.
Deployment Versatility in Power and Telecom Networks
The overhead fiber optic cable supplied is extensively utilized in long-span overhead installations such as power-line communication backbones and utility grids. Its robust mechanical design combined with fully dielectric, non-metallic components minimizes electromagnetic interference and enhances safety. This cable supports infrastructure projects demanding high reliability, low attenuation, and customizable sag and tensile strength, making it invaluable for EPCs and network integrators focusing on resilient aerial fiber optic cable installations.
Product Advantages
Design Innovations Supporting Long-Span Reliability
The opgw fiber cable’s design incorporates double-jacket protection with AT polyethylene sheathing, combining mechanical robustness and electrical tracking resistance. The stranded loose-tube arrangement with aramid yarn strength members optimizes tensile capacity and flexibility, accommodating spans extending to 600 meters without auxiliary supports. This fiber optic cable manufacturer leverages precision engineering to deliver a product that integrates seamlessly with overhead power lines while maintaining structural stability and ease of installation.
Superior Performance with Application-Centric Usability
This overhead fiber optic cable offers consistent optical performance, even under stressors like ice loading, wind pressure, and elevated electric fields. User value is enhanced through customization options available for sag and tensile load parameters, ensuring optimal alignment with route-specific engineering requirements. The cable’s all-dielectric construction eliminates interference risks, simplifying regulatory compliance and enhancing operational safety, thereby reducing maintenance and lifecycle costs for fiber optic cable equipment providers and network operators.
JQ 96-core ADSS cable is designed for self-supporting installation on overhead power and telecom routes where metallic cable elements are not permitted. The stranded loose-tube core, aramid-yarn tensile reinforcement and double-jacket construction provide reliable optical performance under long-term wind, ice and mechanical loading.
The tracking-resistant AT outer sheath is suitable for routes exposed to higher electric-field environments. Cable diameter, tensile strength, sag, fiber count and drum length are engineered according to the actual span and installation conditions.
Key Features
- All-dielectric self-supporting construction
- 96 single-mode G652D fibers
- Double jacket with tracking-resistant AT outer sheath
- Aramid-yarn tensile reinforcement
- Project design for spans up to 600 m
- Custom sag, RTS and installation data available
Typical Technical Data
| Product | Long-span ADSS cable |
|---|---|
| Fiber Count | 96 cores |
| Fiber Type | ITU-T G652D; G657A available |
| Structure | Stranded loose tube, non-metallic central member |
| Strength Member | Aramid yarn |
| Outer Sheath | AT tracking-resistant PE |
| Reference Span | Up to 600 m, project dependent |
Applications
- Overhead power-line communication
- Long-span telecom backbone routes
- Utility and EPC infrastructure projects
Request a Cable Design
Send the span, wind and ice load, electric-field condition, required sag, fiber count and destination for a project-specific calculation and quotation.
| Model | JQ ADSS Double Jacket AT |
|---|---|
| Fiber | 96 × G652D |
| Span | Up to 600 m, engineered per route |
| Strength | Aramid yarn |
| Jacket | Double jacket, AT outer sheath |
| Installation | Self-supporting overhead |
| Standard | IEC 60794-4-20 |
