GYTS 24–96 Core Outdoor Armored Fiber Cable

GYTS 24–96 Core Outdoor Armored Fiber Cable

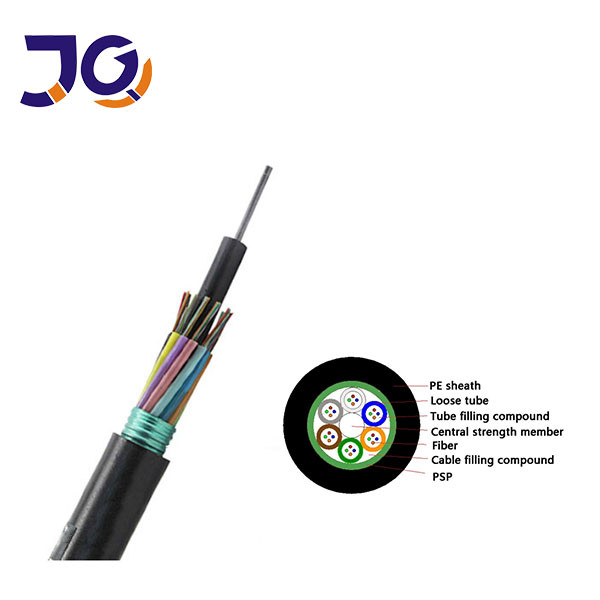

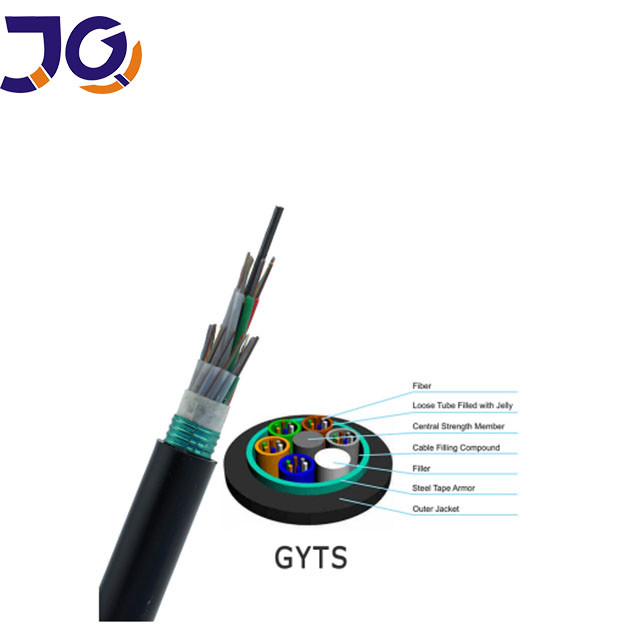

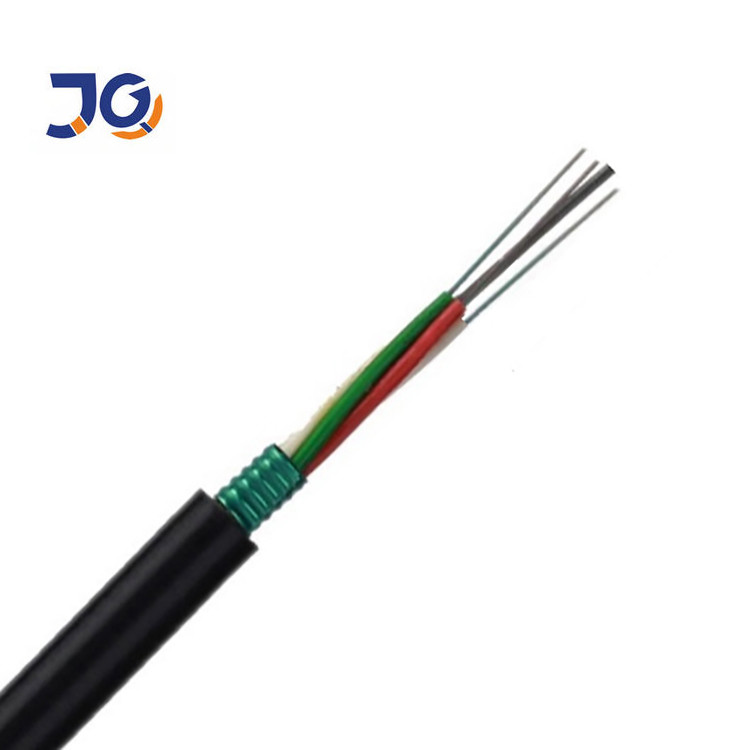

GYTS 48 core Single mode Outdoor Duct Armored Fiber Optic Cable Product ConstructionFiber:2-288 fiber Multi-loose tube gel-filledCentral Strength Member:Fiberglass reinforced Platic (FRP) or steel wire.Armor:Corrugated steel tapeOuter Jacket:Black UV Polyethylene(PE)

Product Detail1. Good mechanical and temperature performance2. High strength loose tube that is hydrolysis resistant3. Special tube filling compound ensure a critical protection of fiber4. Specially designed compact structure is good at preventing loose tubes from shrinking5. Crush resistance and flexibility6: PE sheath protects cable from ultraviolet radiation7. The following measures are taken to ensure the cable watertight:8. Steel wire used as the central strength member9. Loose tube filling compound10. 100% cable core filling11. PSP enhancing moisture-proof

Item	GYTA GYTS 48 Cores Single Mode Fiber Optic Cable
Feature	1. Choice of fiber type2. Color code of fiber3. High water & crush resistance4. Choice of sheath material5. Low attenuation and dispersion6. Good flexibility and bending performance
Application	Suitable for external application in duct and aerial
Structure Characters	1. Metallic strengthen member (Phosphated steel wire)2. Steel taoe under PE sheath
Temperature	1. Operating temperature: -20℃ to 70℃2. Storage temperature: -20℃ to 70℃

Technical Data

FiberCount	NominalDiameter(mm)	NominalWeight(kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load(N)		Allowable Crush Resistance (N/100mm)
FiberCount	NominalDiameter(mm)	NominalWeight(kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~36	10.7	132	6	6	1500	600	1000	300
38~72	12.0	165	12	6	1500	600	1000	300
74~96	13.8	204	12	8	2000	600	1000	300
98~120	15.3	240	12	10	2000	600	1000	300
122~144	17.0	284	12	12	2500	600	1000	300
146~216	17.1	285	12	18(2 layers)	2500	600	1000	300
218~288	19.5	350	12	24(2 layers)	3000	600	1000	300

CertificationCompany profile:1.Located in Guangzhou China 2.12 years experiance of producing fiber optic cable3.CE/ROSH/FCC/ISO9001 Certifications4.Exporting fiber optic cable to all over the world FAQ: 1,Q:Are you a factory or trade company?A:We are a factory2,Q:What is the MOQ?A:The MOQ of Fiber Optic cable is 1km. 3.Q:Which brand of fiber do you use?A:YOFC,Fiberhome,etc 4,Q:Can you accept small order?A:Yes, small order is available .We support new project of our customers as we know business is always from small order.5,Q:What’s delivery time?A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity. 6.Can you supply customized products and logo?A:Yes. We supply OEM service. 7.What’s your payment terms?A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.

Specifications

Place Of Origin	Guangzhou,China
Brand Name	Jiqian
Model Number	GYTS
Number Of Conductors	≥ 10
Fiber Count	4-288 Cores
Installation	Conduit/Aerial
Strength Member: Central	Steel Wire Or FIberglass Reinforced Plastic (FRP)
Certification	ISO9001
Manufacturer	Yes
Highlight	Armored Duct Fiber Optic Cable , ISO9001 Duct Fiber Optic Cable , GYTS Armored Fiber Optic Cable

Basic Information

Place of Origin

China

Payment & Shipping Terms

Packaging Details	Wooden drum
Delivery Time	3-5 days,it depends on order quantity
Payment Terms	L/C, T/T, Western Union,Alipay
Supply Ability	4500km per month
