Fiber optic cable 1core 2core 4core 8core for Networking Communication
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO |
| Model Number | Fiber optic cable GYFXTY |
| Minimum Order Quantity | 2000M |
| Price | FOB Rizhao port price：Fiber optic cable 1core : RMB301.29/KM , 2core: RMB323/KM, 4core:RMB 364/KM 8core:RMB 477/KM |
| Standard Packaging | 1.Polywooden drum, 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 10-15 days |
| Payment Terms | T/T 30%deposit 70% before shipment |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product introduction:

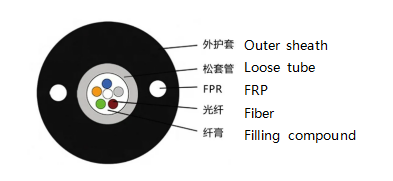

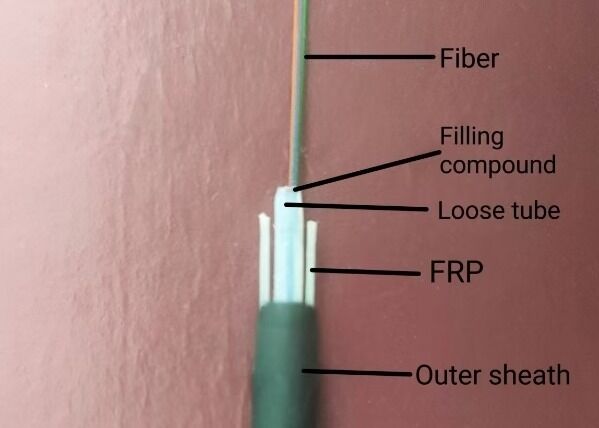

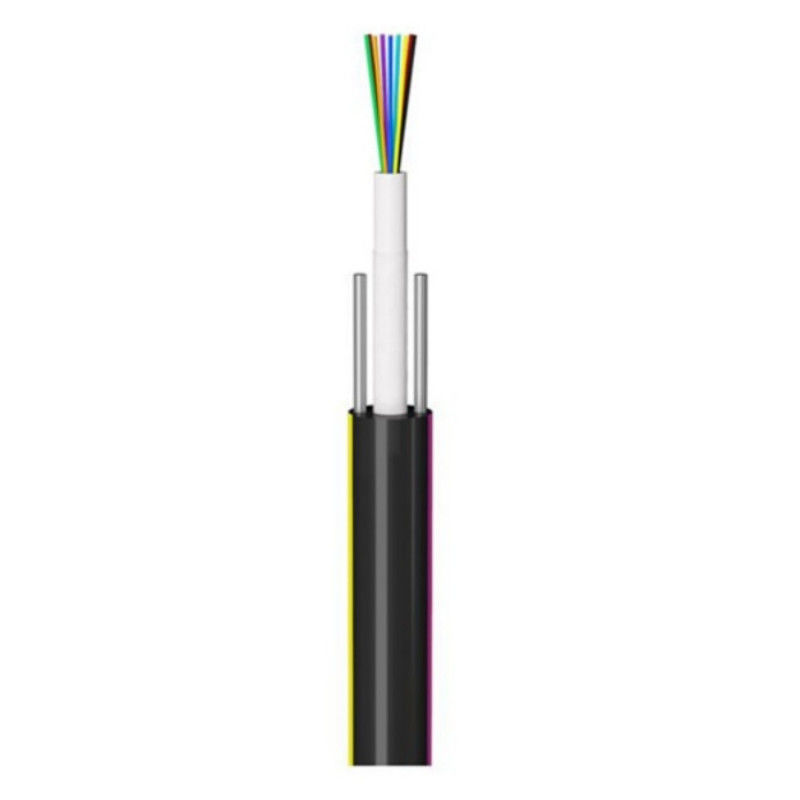

G657A1 Fibers(2-8) are placed in loose tube, Then two parallel FRP reinforcements are placed on both sides and a PE sheath is extruded to form the cable.
Cable Characteristic:
1.Select high-quality optical fiber to ensure excellent transmission performance.
2.Control the excess length of optical fiber to ensure that the optical cable has excellent mechanical characteristics and temperature characteristics.
3.Strict process and raw material control to ensure stable operation of optical cable.
4.The loose tube is filled with special ointment to protect the optical fiber.
5.The center is a non-metallic reinforced member (FRP), which avoids the lightning induced breakdown between the longitudinal wrapped steel strip and the central reinforcing member.
Application:
Application scope: suitable for long distance communication and inter office communication
Laying method: Aerial/duct/pipe
Optical fiber parameters:
| Fiber parameters | Unit | Count | |
| Geometric characteristic | 1.1Cladding diameter | um | 125±0.7 |
| 1.2 FIiber/packet concentricity deviation | um | ≦0.5 | |
| 1.3 cladding non-circularity | % | ≦1.0 | |
| 1.4 Outer coating diameter | um | 245±10 | |
| 1.5 Outer coating/cladding concentricity deviation | um | ≦12.5 | |
| Attenuation characteristic | 2.1 1310nm OTDR attenuation | dB/km | ≦0.38 |
| 2.2 1550nm OTDR attenuation | dB/km | ≦0.24 | |
| Mode field
diameter |
3.1 1310nmmode field diameter | um | 8.6~9.5±0.4 |
Available fiber count is subject to technical confirmation.
| Place Of Origin | Shandong, China |
|---|---|
| Model Number | Fiber Optic Cable 1core 2core 4core 8core |
| Fiber Type | G657A1 |
| Fiber Counts： | 2-8core |
| Jacket | PE |
| Length： | 2KM/drum |
| Color： | Black |
| HS Code | 8544700000 |

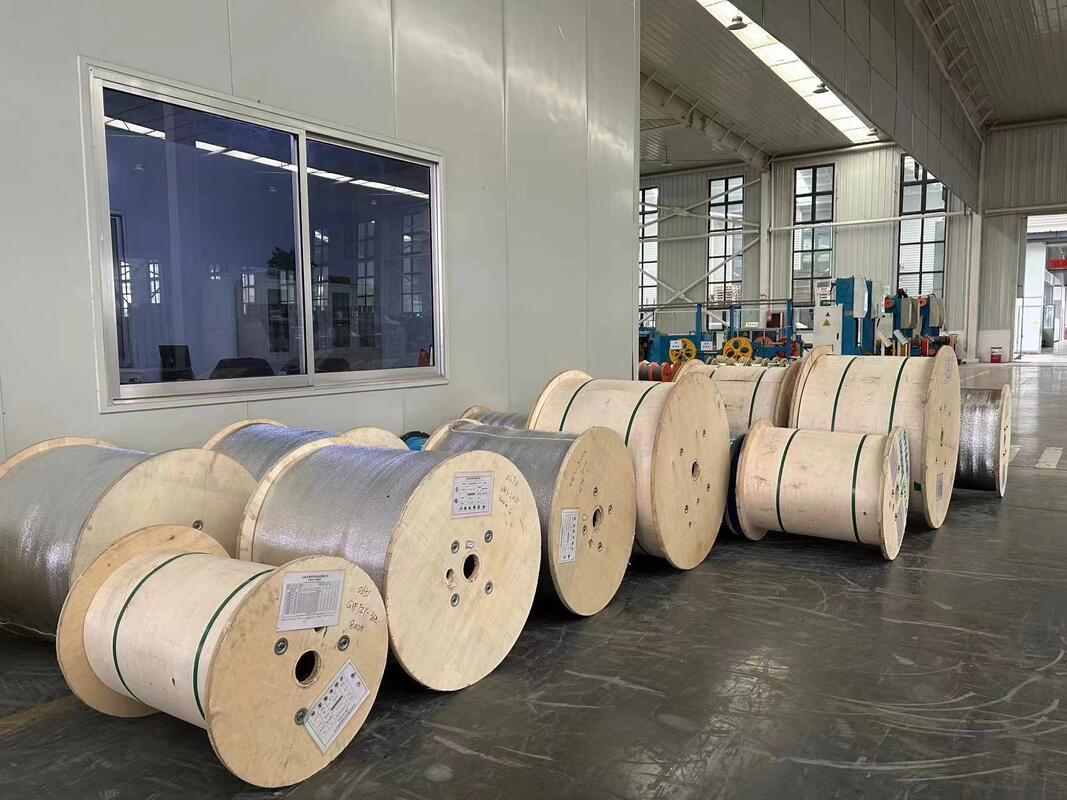

Our Packing and Delivery Process
