Good OPGW Ground Fiber Optical Cable G652 for Overhead Communication in Composite Design

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO TLC
Model Number	OPGW-24B1-120[145;73]
Minimum Order Quantity	2000M
Price	EXW ≥2000m $1.53/M ≥5000m $1.45/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 day
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

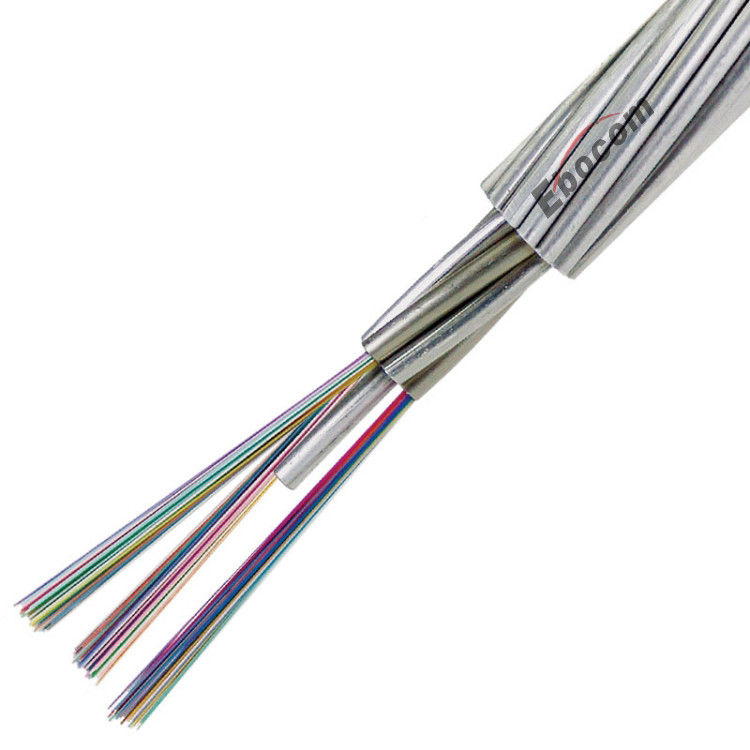

Aluminum tubes are surrounded by single or double aluminum-clad steel wire (ACS) or mixed ACS wire and aluminum alloy wire. Good corrosion resistance. The material and structure are uniform, the anti-vibration fatigue performance is good, the short-circuit current has little influence on the transmission performance of the fiber, and the anti-lightning performance is good.

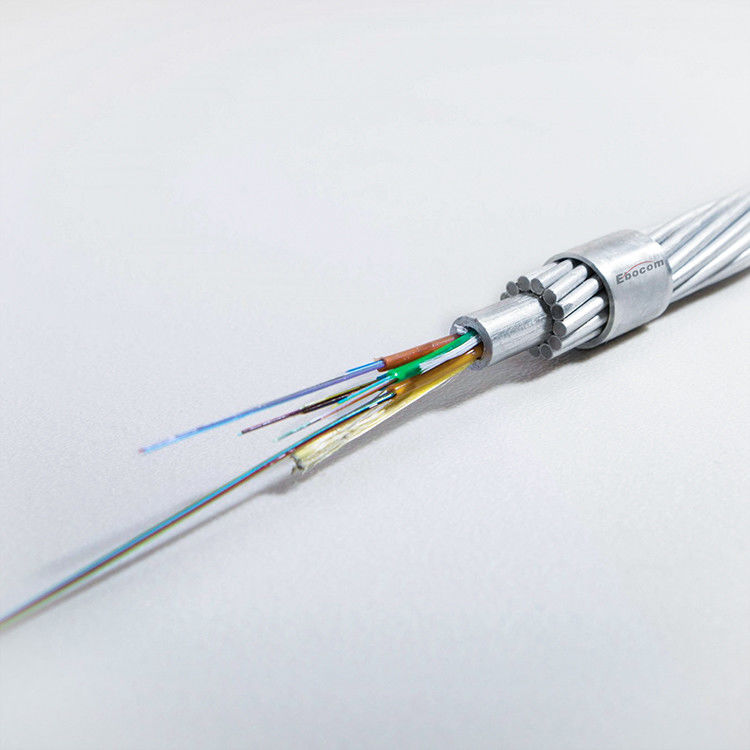

Wrap single or double aluminum-clad steel wire (ACS) or mixed ACS and aluminum wire around the central stainless steel pipe. It is the most widely used cable and is designed to fully adapt to the most common power line needs.

Features:

High quality standard design, testing and production, using Class A materials to ensure long-term reliability.
Easy maintenance, easy line span, its mechanical properties can meet the large line span; The outer layer of OPGW is metal-armoured, which has no effect on high voltage corrosion and degradation.
The construction of OPGW must be power outage, resulting in greater losses, so the construction of high-voltage lines above 110kv must use OPGW;
OPGW cable is mainly used for 500KV, 220KV and 110KV 35KV lines, limited by power failure, safety and other factors, mostly used for new lines.
Sealed stainless steel tube provides excellent moisture and extreme environmental protection for optical fiber

Applications:

Aerial ground cables
Power line communication system
3.Suitable for old line transformation.

Mechanical Parameters:

Model	Cross Section	Cores	OD(mm)	Weight (KG/KM)	RTS (KN)	Short Circuit KA2s
OPGW-12(40.6; 4.7)	32	12	7.8	243	40.6	4.7
OPGW-24(54; 8.4)	42	24	9	313	54	8.4
OPGW-24(43.5; 10.6)	42	24	9	284	43.5	10.6
OPGW-36(55.9; 17.5)	54	36	10.2	394	67.8	13.9
OPGW-48(73.7: 17.5)	61	48	10.8	438	73.7	17.5
OPGW-48(55.1; 24.5)	61	48	10.8	358	55.1	24.5
OPGW-54(80.8; 21.7)	68	54	11.4	485	80.8	21.7
OPGW-60(54.5; 41.7)	76	60	12	385	54.5	41.7
