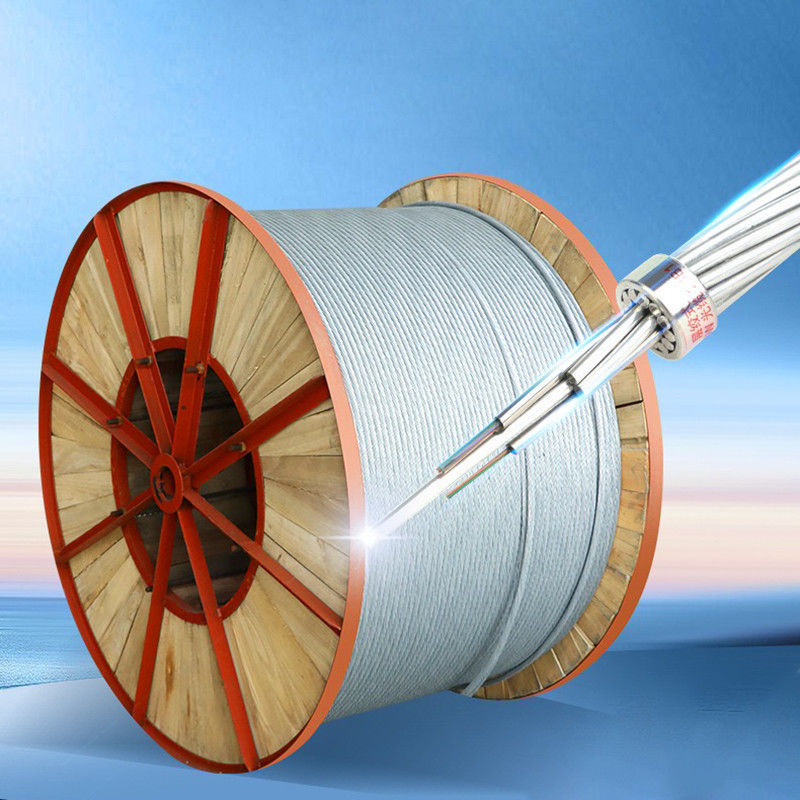

OPGW Ground Wire Cable 36 48 72 144 288 Core For Tower 220KV Line Construction
| Place of Origin | Shandong，China |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | OPGW-144B1-40[51;9] |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $1100/KM ≥10000m $1108/KM |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Description:

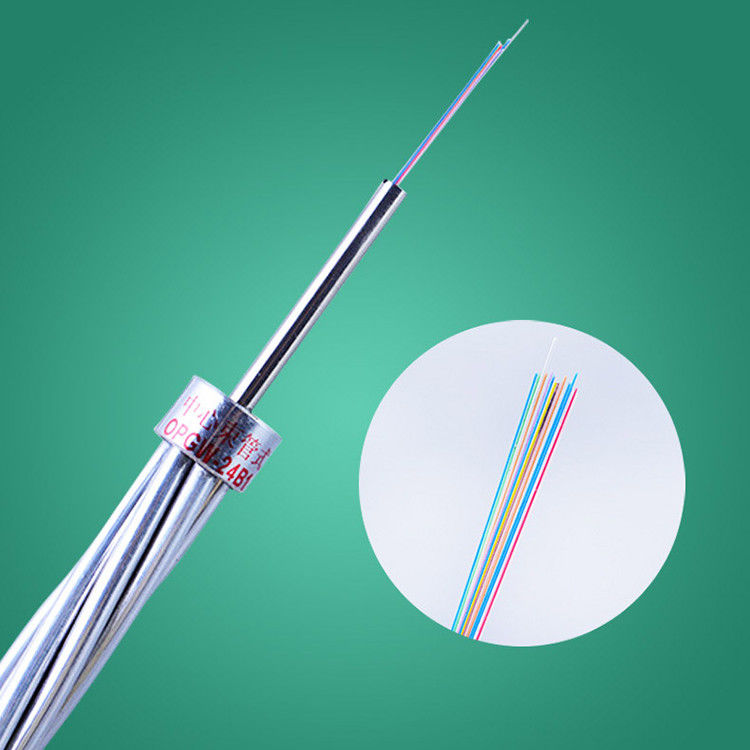

OPGW (optical ground wire) integrates an optical fibre communication unit into the overhead ground wire of a transmission line. The product is designed for outdoor aerial installation and shall meet the applicable electrical, mechanical and optical requirements of the project.
Final design, fibre count, ratings and construction are subject to project electrical/mechanical/optical requirements and the approved datasheet.
Main features:
1. Highquality standard design, testing and production, using Class A materials to ensure long-term reliability；
2. Easy maintenance, easy line span, its mechanical properties can meet the large line span; The outer layer of OPGW is metal-armoured, which has no effect on high voltage corrosion and degradation；
3. The construction of OPGW must be power outage, resulting in greater losses, so the construction of high-voltage lines above 110kv must use OPGW;
4. OPGW cable is mainly used for 500KV, 220KV and 110KV 35KV lines, limited by power failure, safety and other factors, mostly used for new lines；
5. Sealed stainless steel tube provides excellent moisture and extreme environmental protection .
|
Specification |
Fiber Count |
Diameter(mm) |
Weight (kg/km) |
RTS(KN) |
Short Circuit(KA2s) |
|
OPGW-80(82.3;46.8) |
24 |
11.9 |
504 |
82.3 |
46.8 |
|
OPGW-70(54.0;8.4) |
24 |
11 |
432 |
70.1 |
33.9 |
|
OPGW-80(84.6;46.7) |
48 |
12.1 |
514 |
84.6 |
46.7 |
| Model Number | OPGW |
| Cable Mode | Optical Ground Wire |
| Cable Type | Stranded Opgw Cable |
| Fiber Count | 24 48 Cores |
| Fiber Type | G652D/G657A1/G657A2 |
| Strength Member | Steel Wire FRP |
| Key Words | Optical Fiber Cable |
| Application | Overhead/Aerial |
