Optical Ground Wire Fiber Optical Cable 2 24 166 288 Cores For Aerial Communication Use
| Place of Origin | Shandong，China |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | OPGW60-40[51;9] |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.32/M ≥5000m $0.3/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Description:
OPGW optical cable is to place the optical fibre in the ground wire of the overhead high-voltage transmission line to form an optical fibre communication network on the transmission line. The structure has both the dual functions of ground line and communication. Due to the use of metal wire winding, the optical cable power ground wire is more reliable, stable and solid. Because the overhead ground wire and optical cable are combined, compared with other optical cable methods, the construction cycle is shortened and the construction cost is saved. The characteristics and advantages of OPGW optical cable adopt high-quality stainless steel pipe production technology, and the pipe is filled with water-resistant compounds to effectively protect the optical fibre. Good density, high tensile strength, small short-circuit current, small mutual interference between the power grid and the communication network, similar to the specifications of ordinary ground wire, very convenient to erection, and can directly replace the original ground wire. PBT loose fibre optic ground wire (OPGW) is made of single-layer or double-layer aluminum-clad steel wire (ACS) or mixed aluminum-clad steel wire and aluminum alloy wire winding. Excellent anti-corrosion performance. The material and structure are uniform, and the vibration fatigue resistance is good. Product Name: PBT Loose Sleeve OPGW Optical Fibre Type: G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 Optional Optical Fibre Core Number: 2-72 Cores Application: Old Power Line And Low-voltage Line Transformation. Areas with severe chemical pollution along the coast.
Main features:
1. High quality standard design, testing and production, using Class A materials to ensure long-term reliability；
2. Easy maintenance, easy line span, its mechanical properties can meet the large line span; The outer layer of OPGW is metal-armoured, which has no effect on high voltage corrosion and degradation；
3. The construction of OPGW must be power outage, resulting in greater losses, so the construction of high-voltage lines
2. Easy maintenance, easy line span, its mechanical properties can meet the large line span; The outer layer of OPGW is metal-armoured, which has no effect on high voltage corrosion and degradation；
3. The construction of OPGW must be power outage, resulting in greater losses, so the construction of high-voltage lines

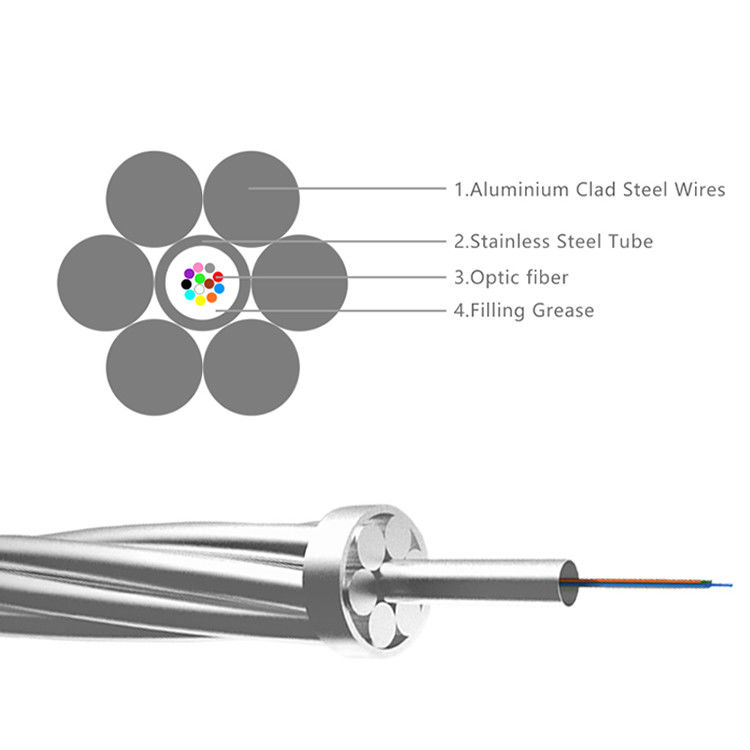

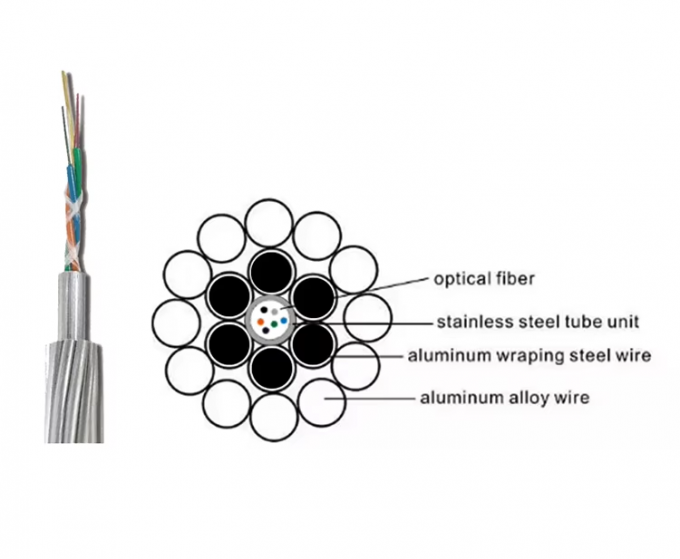

Structure & Technical Specifications:
Available fiber count is subject to technical confirmation.
| Model Number | OPGW |
| Cable Mode | Optical Ground Wire |
| Cable Type | Stranded Opgw Cable |
| Fiber Count | 24 48 Cores |
| Fiber Type | G652D/G657A1/G657A2 |
| Strength Member | Steel Wire FRP |
| Key Words | Optical Fiber Cable |
| Application | Overhead/Aerial |

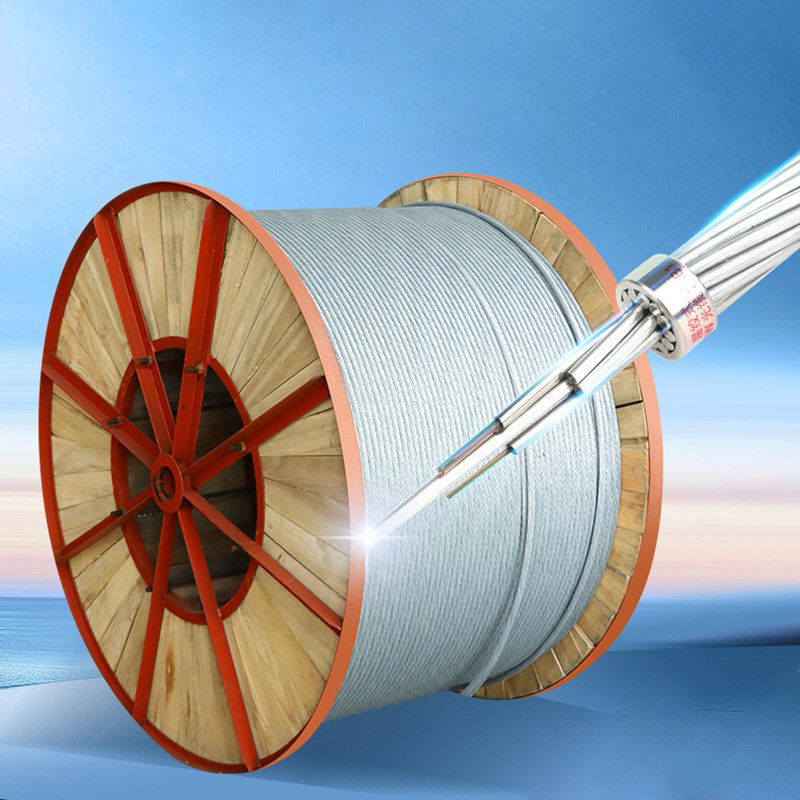

Our Packing and Delivery Process
