GYFTY83 Non-Metallic Anti-Rodent Fiber Optic Cable
GYFTY83 is designed with physical and chemical anti-rodent methods. Single-mode/multimode fibres are housed in loose tubes that are made of high-modulus plastic. The tubes are stranded around a central strength member to form a cable core. The core is filled with cable filling compound. Then an inner PE sheath is extruded and armored with flat FRP. Finally, an anti-rodent PE middle sheath and a PE outer sheath is extruded.

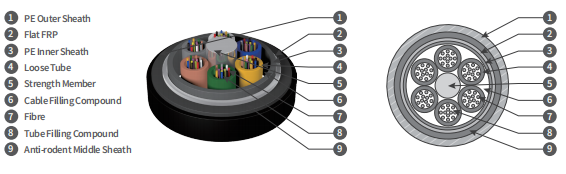

Cable Section Design:
Features:
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Combination of physical and chemical anti-rodent methods
• Flat FRP armor providing the physical anti-rodent performance
• Anti-rodent sheath providing the chemical anti-rodent performance, which effectively delays the diffusion of anti-rodent additives to protect working environment and construction safety
• All-dielectric design, applicable to lightning-prone areas
• Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements.
Technical Characteristics:
-
Type GYFTY83(FS) Units Max. fibre countper tube Diameter(mm) Cable weight(kg/km) Tensile strengthLong/short term (N) CrushLong/short term（N/100mm） Bending radiusDynamic/static (mm) 2-72Xn 6 12 14.0 190 1500/4500 1000/3000 15D/25D Note:
1. Xn refers to fibre type. For details, see naming rules for optical cables of GL.
2. For color arrangement of fibres and loose tubes, see the color sequence.
3. D is cable diameter.
Environmental Characteristics:
Transport/storage temperature: -40℃ to +70℃
Delivery Length:
- Standard length: 2,000m; other lengths are also available
Cable Section Design:
Features:
• Accurate process control ensuring good mechanical and temperature performances
• The material of loose tubes with good hydrolysis resistance and relatively high strength
• Tube filling compound providing key protection for fibres
• Combination of physical and chemical anti-rodent methods
• Flat FRP armor providing the physical anti-rodent performance
• Anti-rodent sheath providing the chemical anti-rodent performance, which effectively delays the diffusion of anti-rodent additives to protect working environment and construction safety
• All-dielectric design, applicable to lightning-prone areas
• Applicable to aerial and duct installations with anti-rodent and anti-lightning requirements.
Technical Characteristics:
-
Type GYFTY83(FS) Units Max. fibre countper tube Diameter(mm) Cable weight(kg/km) Tensile strengthLong/short term (N) CrushLong/short term（N/100mm） Bending radiusDynamic/static (mm) 2-72Xn 6 12 14.0 190 1500/4500 1000/3000 15D/25D Note:
1. Xn refers to fibre type. For details, see naming rules for optical cables of GL Fiber.
2. For color arrangement of fibres and loose tubes, see the color sequence.
3. D is cable diameter.
Environmental Characteristics:
Transport/storage temperature: -40℃ to +70℃
Delivery Length:
- Standard length: 2,000m; other lengths are also available
