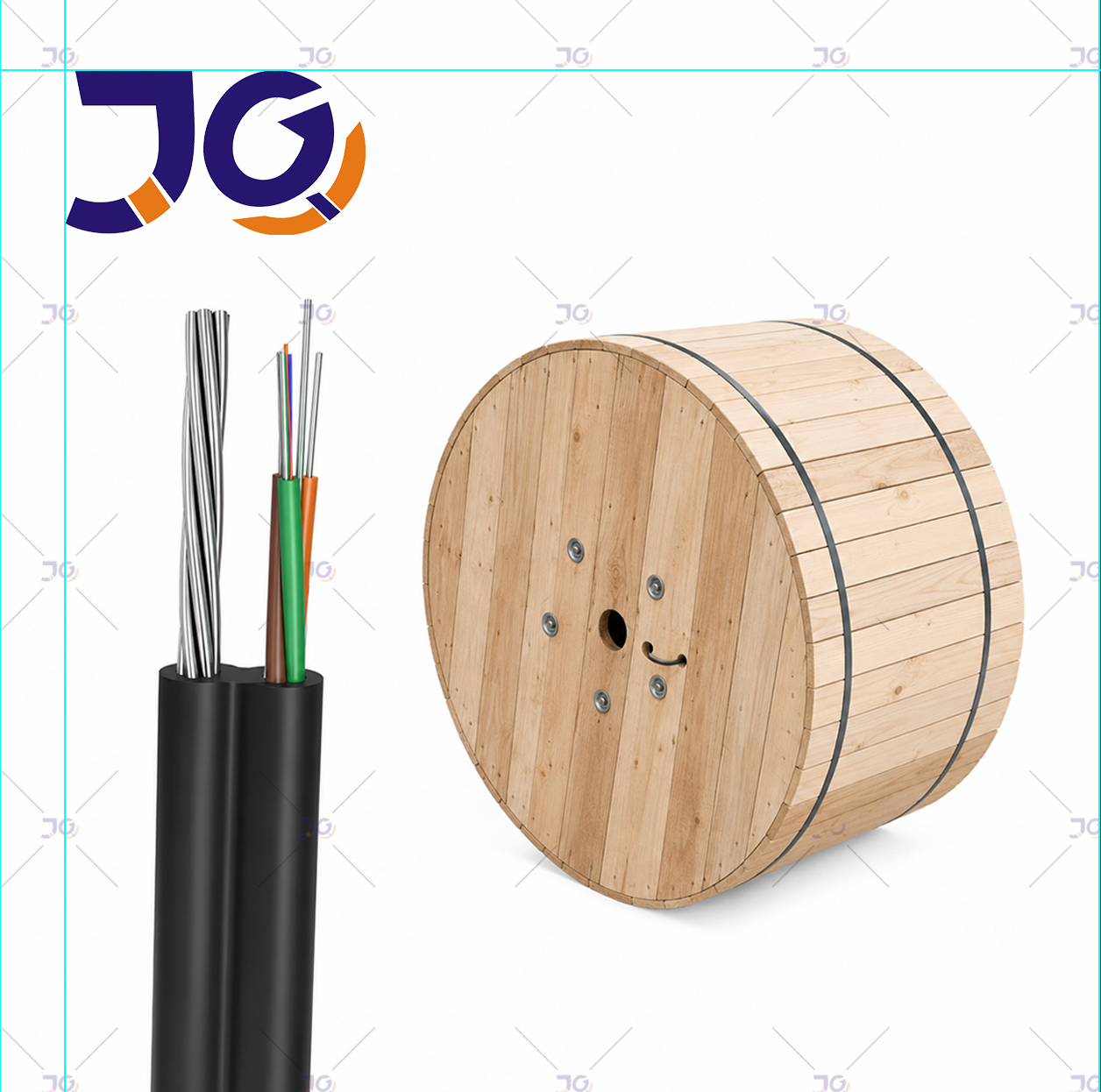

GYXTC8Y Outdoor Aramid Yarn Areial Fiber Optic Cable

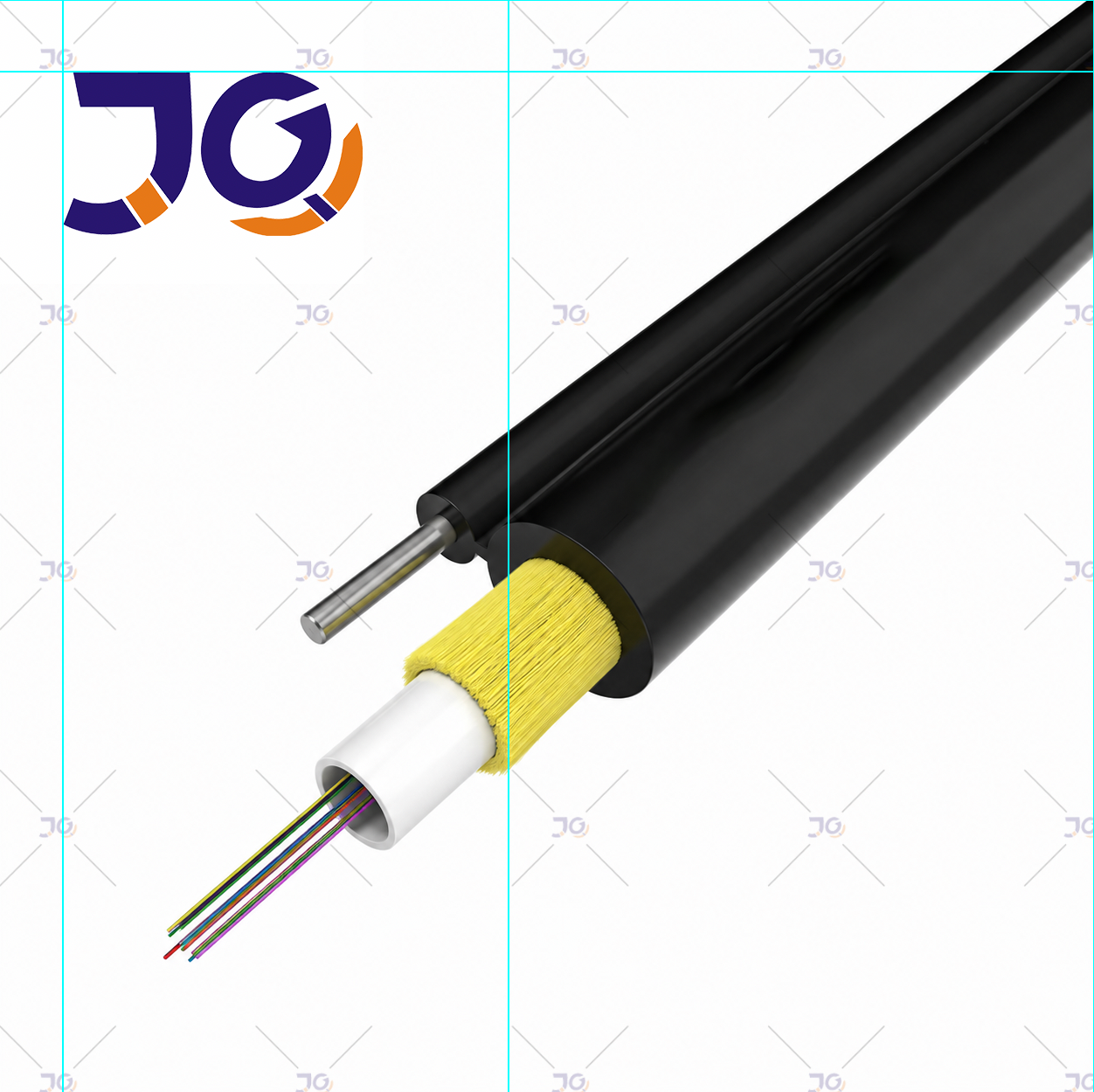

Mini Figure 8 drop Fiber Optic Cable which is an excellent stripping performance of tight buffer fiber Cable, its diameter and bending radius are small. It’s full filling with aramid yarn. It can installation freely in narrow room.This cable consist of the loose tube with single mode or multimode fibers and steel wire as the messenger wire, which are formed like “Figure 8”. After aramid yarn is applied over the inner sheath, the cable is completed with a PE outer sheath.
Application: Self supporting Aerial for FTTH Solution

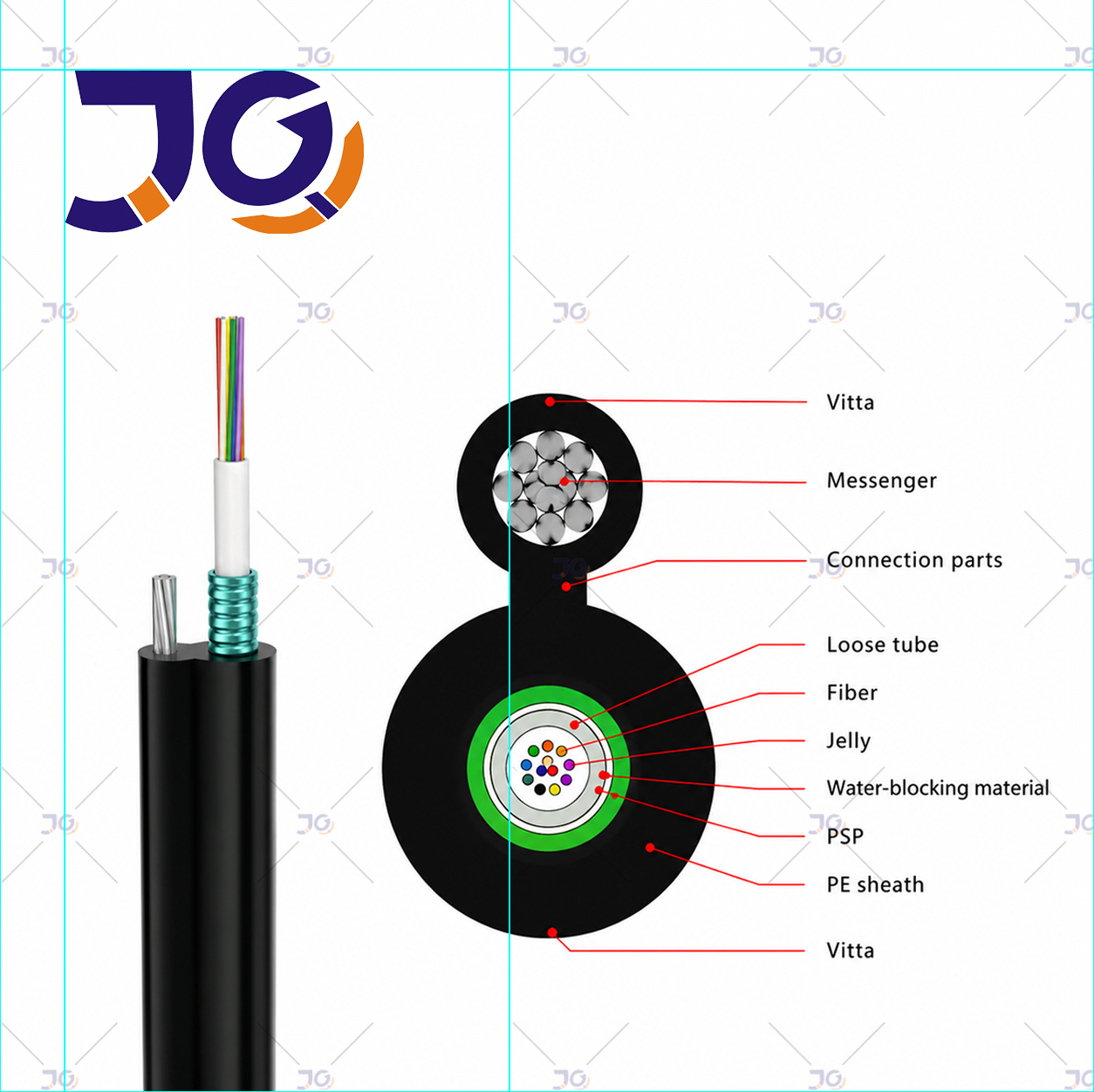

Structure Design:
Fiber Type：G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Application: Self supporting Aerial for FTTH Solution
Main Feature:
1，Accurate optical fiber excess length ensures good mechanical and temperature performance.,
2，High strength loose tube that is hydrolysis resistant and special tube filling compound and flexibility.
3，Figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap.
4，The service life of the products willbe more 30 years.
5，Light, flexible, easy for the laying and it is used for FTTH solution.
Temperature Range: Operating :-40℃ to +70℃ Storage :-40℃ to +70℃
Standards: Comply with stand YD/T 1155-2001 as well as IEC60794-1.
Mechanical & Environmental Characteristics:
| Item | Characteristics | ||||
| Operation temperature | -40℃~ + 70℃ | ||||
| Storage temperature | -40℃~ + 60℃ | ||||
| Sheath Material | P:PE |
| Dimensional Characterstics | |||||||||
| Fiber count | Outer sheath | Cable dia.(mm) | cable height(mm) | Messenger wire (mm) | cable net weight (kg/km) | strength short term(n) | crush pressure short term (n/100mm) | crush pressure short term(n/100mm) | |
| 2~12 | PE | 5 | 10.1 | 1.6 | 47 | 1000 | 1000 | 1000 | |
| Model Number | GYXTC8Y |
| Type | Coaxial |
| shape | figure 8 |
| Certification | UL ,ROHS,SGS |
| Fiber | SM/MM/OM3/OM4 |
| Fiber Core | 2-24 core |
| Jacket Material | PE /LSZH/PU |
| Laying method | Pipeline/Overhead/Direct bury/Duct |
| keywords | outdoor fiber optic cable |
| Color | Black or customized |
| Fiber brand | Corning, LS, etc |
| Fire Resistant | Yes |
| Armored or not | Corrugated steel tape armored |
How to Ensure the Quality and Performance of Your Fiber Optic Cable?
We control the products quality from the raw material to the finish produts All the raw material should be tested to match the Rohs standard when they arrived at our manufacture.We control the quality during the producing process by advanced technology and equipments. We test the finished products according to the test standard. Approved by various professional optical and communication product institution , GL also conduct various in-house testing in its own Laboratory and Test Center. We also conduct test with special arrangement with the Chinese Government Ministry of Quality Supervision & Inspection Center of Optical Communication Products(QSICO).
Quality Control – Test Equipment and Standard:
Feedback: In order to meet the world’s highest quality standards, we continuously monitor feedback from our customers. For comments and suggestions, please, contact us, Email: [email protected].
Structure Design
Fiber Type：G652D; G655C; 657A1; 50/125; 62.5/125; OM3; OM4 As Options
Application: Self supporting Aerial for FTTH Solution
Main Feature
1，Accurate optical fiber excess length ensures good mechanical and temperature performance.,
2，High strength loose tube that is hydrolysis resistant and special tube filling compound and flexibility.
3，Figure 8 self supporting type structure possesses high tensile strength and is convenient for aerial installation and its installation cost is cheap.
4，The service life of the products willbe more 30 years.
5，Light, flexible, easy for the laying and it is used for FTTH solution.
Temperature Range
Operating :-40℃ to +70℃ Storage :-40℃ to +70℃
Standards
Comply with stand YD/T 1155-2001 as well as IEC60794-1.
Mechanical & Environmental Characteristics
| Item | Characteristics | ||||
| Operation temperature | -40℃~ + 70℃ | ||||
| Storage temperature | -40℃~ + 60℃ | ||||
| Sheath Material | P:PE |
| Dimensional Characterstics | |||||||||
| Fiber count | Outer sheath | Cable dia.(mm) | cable height(mm) | Messenger wire (mm) | cable net weight (kg/km) | strength short term(n) | crush pressure short term (n/100mm) | crush pressure short term(n/100mm) | |
| 2~12 | PE | 5 | 10.1 | 1.6 | 47 | 1000 | 1000 | 1000 | |
| Model Number | GYXTC8Y |
| Type | Coaxial |
| shape | figure 8 |
| Certification | UL ,ROHS,SGS |
| Fiber | SM/MM/OM3/OM4 |
| Fiber Core | 2-24 core |
| Jacket Material | PE /LSZH/PU |
| Laying method | Pipeline/Overhead/Direct bury/Duct |
| keywords | outdoor fiber optic cable |
| Color | Black or customized |
| Fiber brand | Corning, LS, etc |
| Fire Resistant | Yes |
| Armored or not | Corrugated steel tape armored |
