GYXTW Fiber Optic Cable Central Tube 12 core Outdoor Aerial for connecting communication equipment

Place of Origin	Shandong，China
Brand Name	JQ
Certification	ISO TLC
Model Number	GYXTW
Minimum Order Quantity	2000M
Price	EXW ≥2000m $0.036/M ≥5000m $0.034/M
Standard Packaging	1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time	5-8 days
Payment Terms	T/T
Supply Ability	Supply capacity is subject to the confirmed specification, quantity and production schedule.

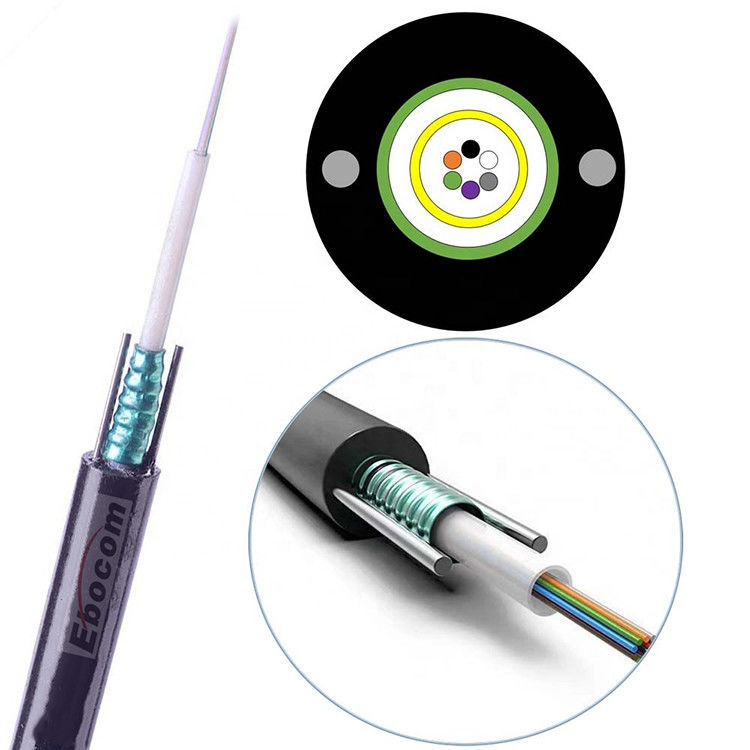

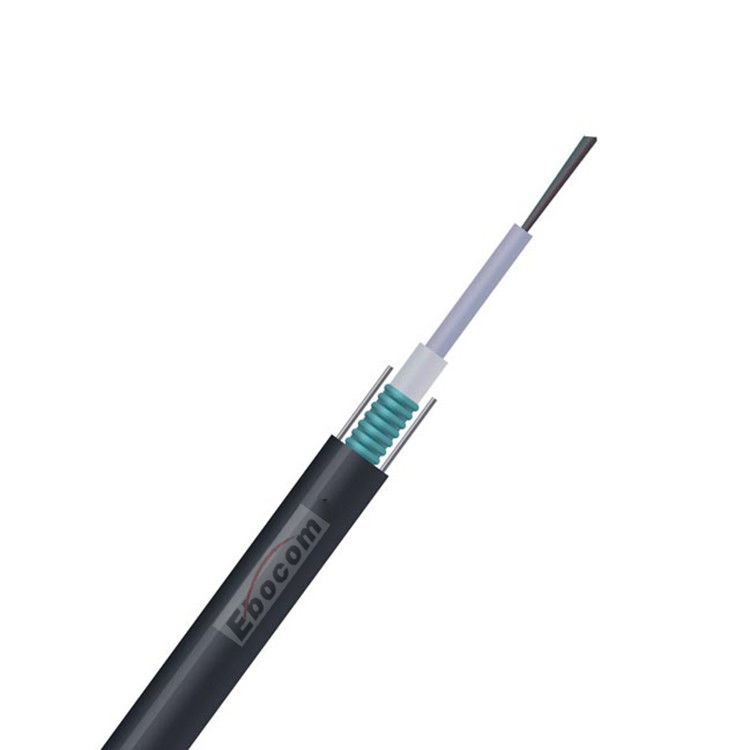

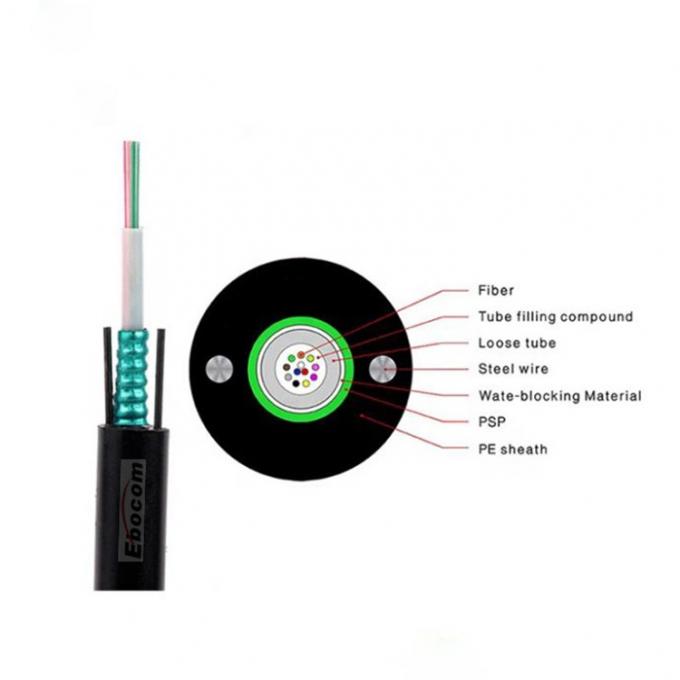

In the GYXTW type optical cable structure, the single-mode or multi-mode optical fiber is covered with a unit tube, and the unit tube is filled with waterproof filler. The outside of the tube is longitudinally covered by a layer of double-sided plastic-coated corrugated steel tape, and the waterproof material is used between the steel tape and the loose tube to ensure the compact structure and longitudinal waterproof of the optical cable. There are two parallel steel wires on the loose tube for reinforcement, and then outsource PE sheath to form an optical cable.

Features

Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable
excellent mechanical and environmental properties
Compact structure and lightness, flexible and good bend-resistant performance
With small cable diameter, light cable weight, self-supporting
Operating Temperature : -40 ~ +60℃

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
1	Mode Field Diameter	1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.36
9	Attenuation(max.)	1550nm	dB/km	≤0.25
