GYFTY 12–48 Core FRP Aerial/Duct Fiber Optic Cable
Aerial Duct GYFTY g625d 12 24 48 Core Fiber Optical Cable with FRP Strength Member
GYFTY is an outdoor optical fiber cable with a non-metallic strength member, ideal for communication applications. It uses a loose tube, gel-filled design and is protected with a polyethylene (PE) outer sheath.

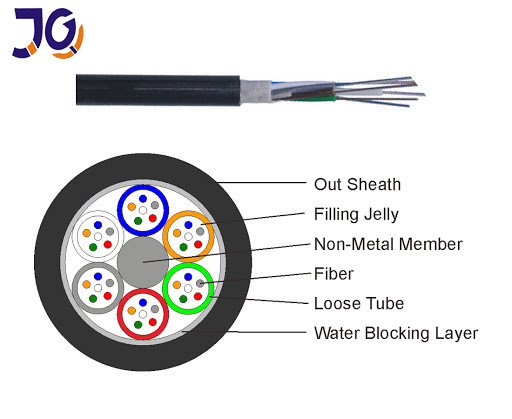

Inside the cable, single-mode or multi-mode fibers are housed in high-modulus plastic loose tubes, filled with a water-blocking gel for moisture resistance. The cable’s central strength member is non-metallic (FRP), providing structural integrity without electrical conductivity.
In some designs, an additional PE layer or non-metallic yarn is added around the FRP for enhanced strength. The loose tubes and filler elements are stranded around the central core in a circular configuration. The entire core is filled with water-blocking compounds, and the cable is finished with a durable polyethylene sheath, ensuring long-term outdoor performance.
Features
- Lightweight and compact design for easy installation
- Strong mechanical properties and wide temperature tolerance
- Low signal loss with minimal dispersion
- Gel-filled loose tubes offer excellent fiber protection
- Non-metallic central strength member resists electromagnetic interference
- Water-blocking system ensures reliable moisture and water resistance
- FRP and filling compounds keep the cable watertight and durable
Applications
- Suitable for outdoor aerial and duct installations
- Ideal for long-distance communication networks
- Applied in subscriber access and LAN systems
- Supports voice, data, video, and image transmission
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 8.8 | 88 | 10 Times Diameter |
20 Times Diameter |
1500 | 800 | 1000 | 500 |
| 32-36 | 9.0 | 95 | 1500 | 800 | 1000 | 500 | ||
| 38-60 | 9.2 | 98 | 1500 | 800 | 1000 | 500 | ||
| 62-72 | 9.5 | 105 | 1500 | 800 | 1000 | 500 | ||
| 74-96 | 10.5 | 118 | 1500 | 1000 | 1000 | 500 | ||
| 98-120 | 11.8 | 145 | 2000 | 1500 | 1000 | 500 | ||
| 122-144 | 14.2 | 165 | 2000 | 1500 | 1000 | 500 | ||
| 146-216 | 16.3 | 225 | 2000 | 1500 | 1000 | 500 | ||
| 218-240 | 18.5 | 305 | 2000 | 1500 | 1000 | 500 | ||
| 242-288 | 22.7 | 395 | 2500 | 2000 | 1000 | 500 | ||
Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788
Detail product pictures

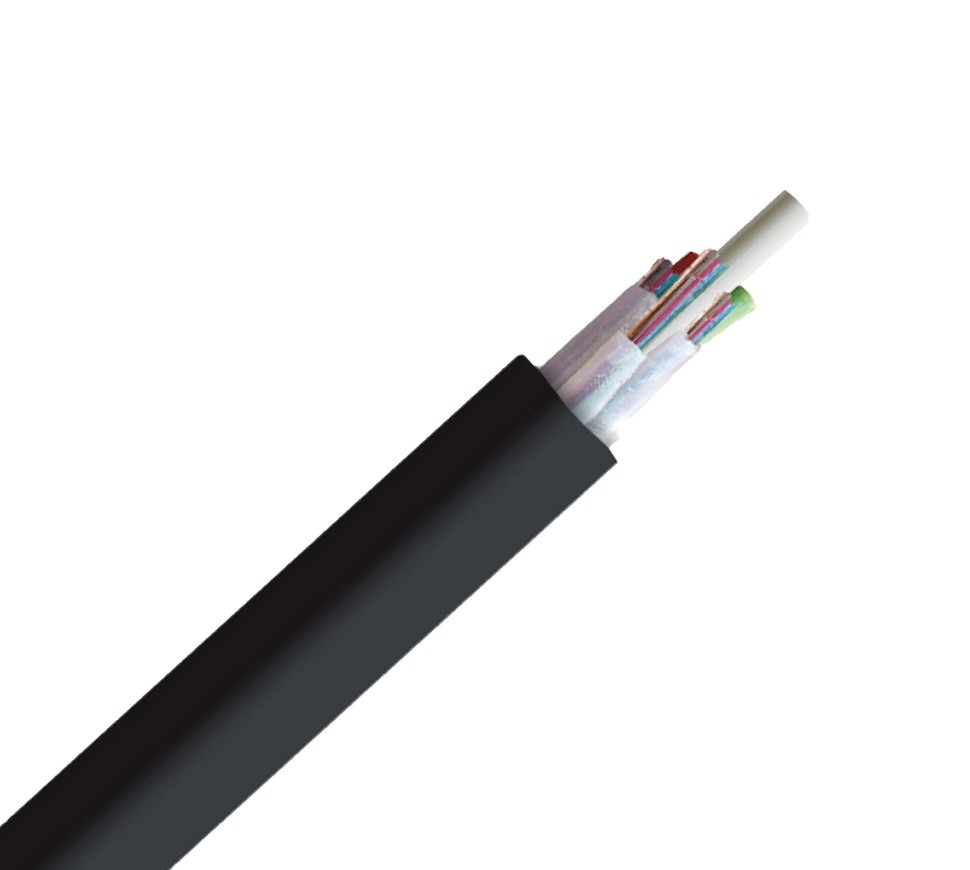

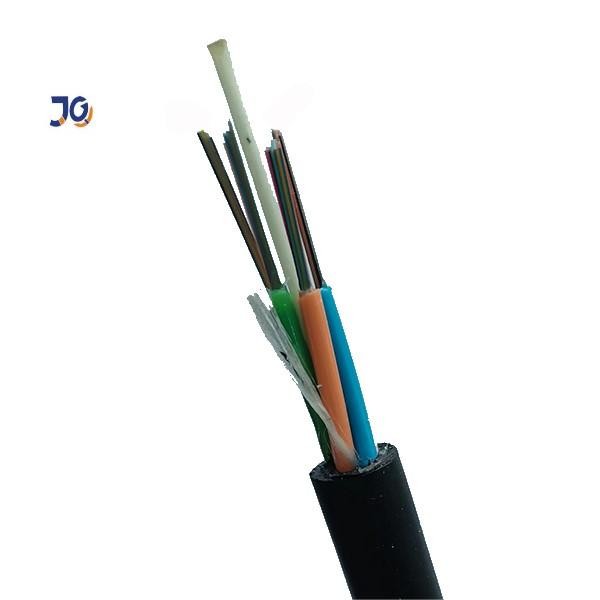

Picture shows about the GYFTY-48 C
FAQ
1. Are you a factory or trading company?
Yes, we are a professional manufacturer specializing in fiber optic cables, MPO breakout cables, and patch cords. Our products are exported to Europe, South America, and other global markets.
2. What are your main products?
We offer a wide range of fiber optic solutions, including:
- Outdoor and indoor fiber optic cables
- FTTH drop cables and ADSS cables
- Armored indoor patch cords
- SC, LC, FC, ST, MTP/MPO optical patch cords
3. What is the warranty period for your products?
We provide a 20-year warranty on all fiber optic cables.
4. Do you have certifications for raw materials?
Yes. We work with certified suppliers who meet ISO9001 and RoHS standards, ensuring stable and high-quality materials.
Specifications
| Fiber Brand | YOFC/Fiberhome/ Corning |
| Color | Black Or Orange |
| Jacket Metarial | PE,HDPE/LSZH/AT |
| Strength Member | FRP(with PE If Needed) |
| Fiber Count | 4-144cores |
| Installation | Aerial & Duct |
| Drum Length | 2/3KM Or Customized |
| Product Name | GYFTY Outdoor Fiber Cable |
| Application | Network/long Distance Communication |
| Bend Radius | 20mm |
| Steel Wire | 1.0mm/0.7mm/1.2mm |
| Structure | Unit Tube/Stranded Twisted Cable |
| Gallus Material | PE |
| Rodent Protection | Yes |
| Manufacturer | Yes |
| Jacket | PE/PVC/LSZH |
| Sheath | PE |
| Strength Member | Steel Wire |
| Fiber Of Type | Singlemode |
| Fiber Gel | Yes |
| Outsheath | PE / LSZH / OFNP |
| Maximum Span Length | 100m |
| Fiber | Fiberhome Yofc |
| Packing | Wooden Drum |
| Highlight | 24 Core FRP Fiber Optical Cable , GYFTY G625d Fiber Optical Cable |
Basic Information
| Place of Origin | Guangzhou China |
| Brand Name | JQ/ Customized |
| Certification | ISO9001, FCC, ROHS/CCC/FCC |
| Model Number | GYFTY-12/24/48F |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 7 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200KM Per day |
