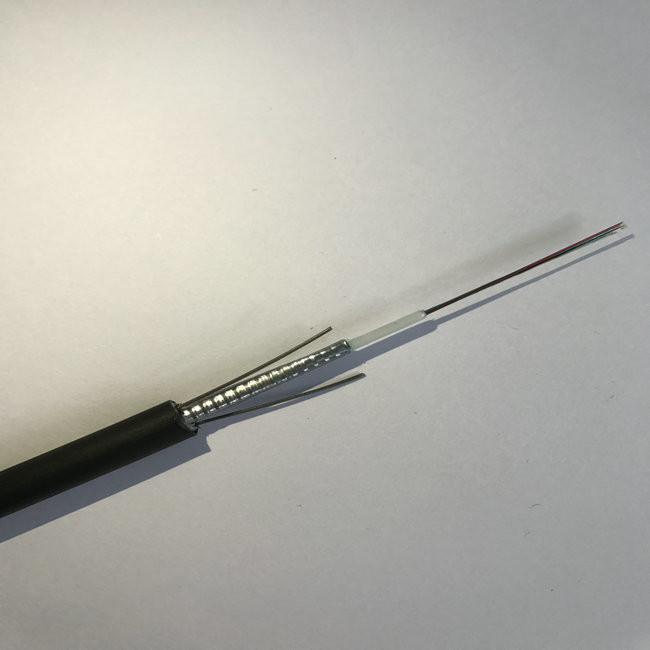

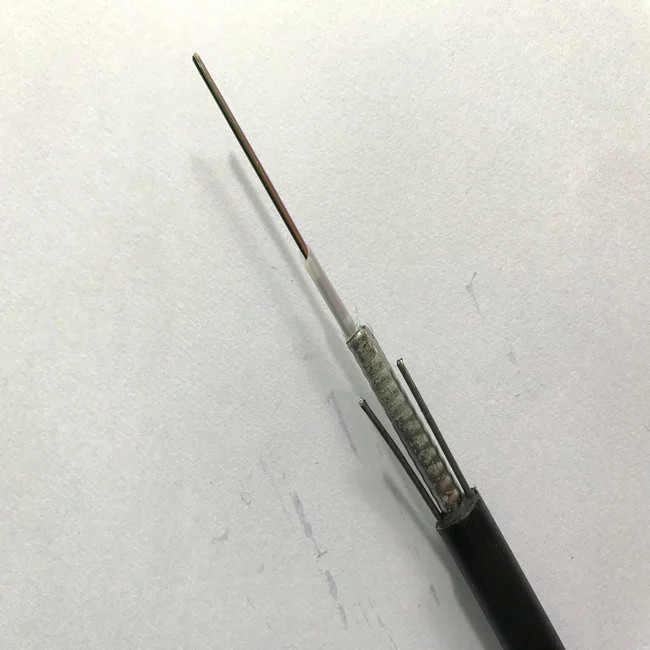

GYXTW 12-Core G652D/G657A Armored Aerial Fiber Cable
GYXTW Outdoor Fiber optic Cable

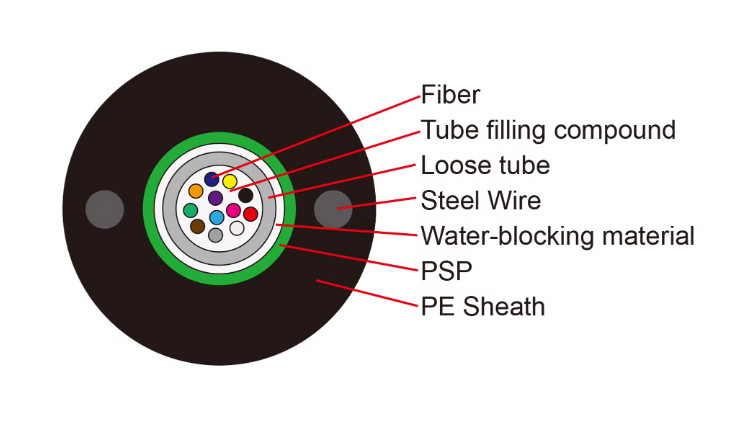

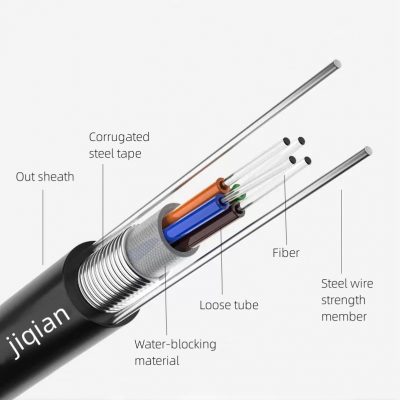

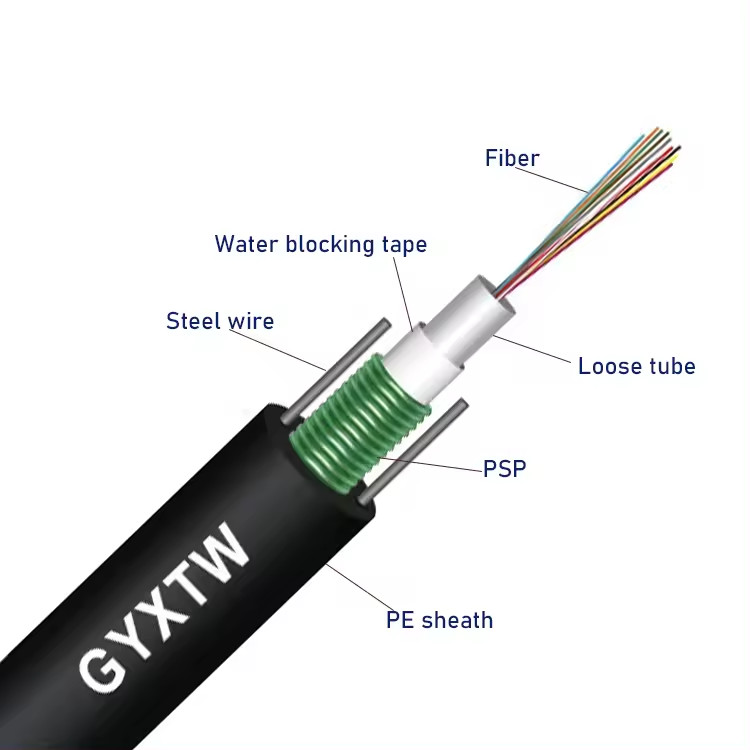

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheat.
Features
1 ,Good mechanical and temperature performance
2 ,High strength loose tube that is hydrolysis resistant
3 ,Special tube filling compound ensure a critical protection of fiber
4 ,Crush resistance and flexibility
5 ,PSP enhancing moisture-proof
6 ,Two parallel steel wires ensure tensile strength
7 ,Small diameter, light weight and friendly installation
8 ,Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
Fiber Parameter
| No. | Items | Unit | Specification | |
| G.652D | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.24 | ||
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250µm±15µm |
| Color | Blue, Orange, Green, Brown, Gray, White | |
| Loose Tube | Dimension | 2.10mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tensio (Long Term) | N | 600 |
| Tension (Short Term) | N | 1500 |
| Crush (Long Term) | N/10cm | 300 |
| Crush (Short Term) | N/10cm | 1000 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
Technical Parameter
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength
Long/Short Term (N) |
Crush Resistance
Long/Short Term (N/100mm) |
Bending
Radius Static/Dynamic (mm) |
| 2~12 | 10.6 | 124 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 12.0 | 147 | 1000/3000 | 1000/3000 | 10D/20D |
| Transmission Characteristics | |||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Max Attenuation
(dB/km) (+20℃) |
850 nm | 3.0 | 3.3 | ||
| 1300 nm | 1.0 | 1.0 | |||
| 1310 nm | 0.36 | 0.4 | |||
| 1550 nm | 0.24 | 0.23 | |||
| Cable Cute-off Wavelength (nm) | ≤1260 | ≤1450 | |||

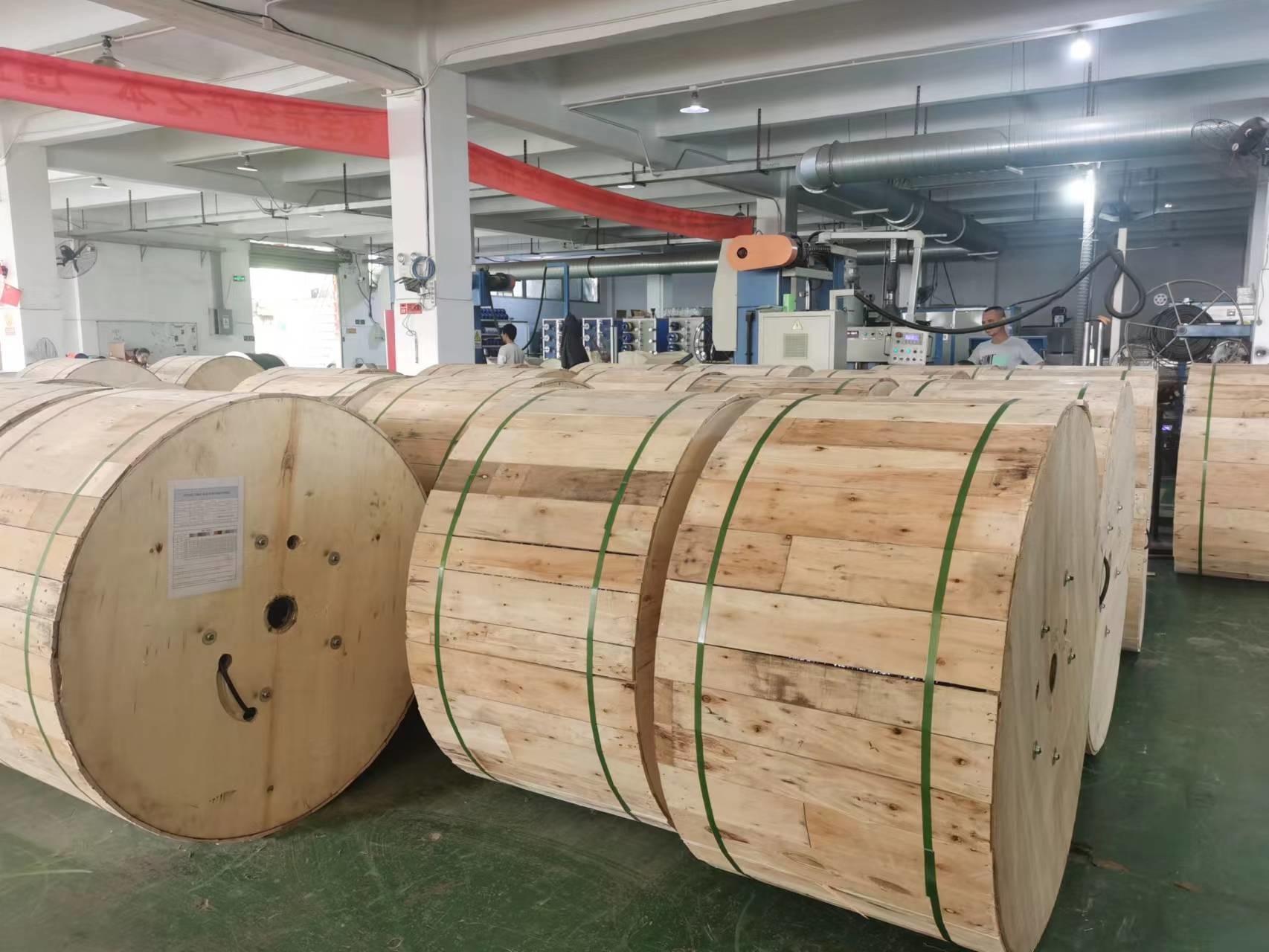

Our Factory :
Packing detail
1km/2km/3km/4km/5km per wooden drum.
5KM:100*100*90CM. 4KM:90*90*78CM
Shipping:By sea/by air or express delivery,it depends on the order quantity
Leading Time :
| Quantity(km) | Samples | 1-100km | 100-1000km |
| Earliest time | 1days | 3-5 work days | 5-7 work days |
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.1-5km/roll. Packed by wooden drum. Other packing available according to client’s Request.
Picture Of shipping Kenya Nariobi /Peru Lima :
Company Profle:
Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province new wai industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.
RFQ:
Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
Specifications
| Fiber Type | G652D/G657A1 |
| Oem | Available |
| Application | Duct/Aerial |
| Number Of Conductors | 6 8 12 24 |
| Structure | Loose Tube |
| Operating Temperature | -40 ~ +60 C |
| Highlight | G652D fiber optic cable outdoor , GYXTW fiber optic cable outdoor , 12 Core fiber optic cable outdoor |
Basic Information
| Place of Origin | CHINA |
| Brand Name | jiqian |
| Certification | ISO 9001/CE/ROHS |
| Model Number | GYXTW 4 6 8 12 24 core |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 2-4day |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 100km per 2 day |
