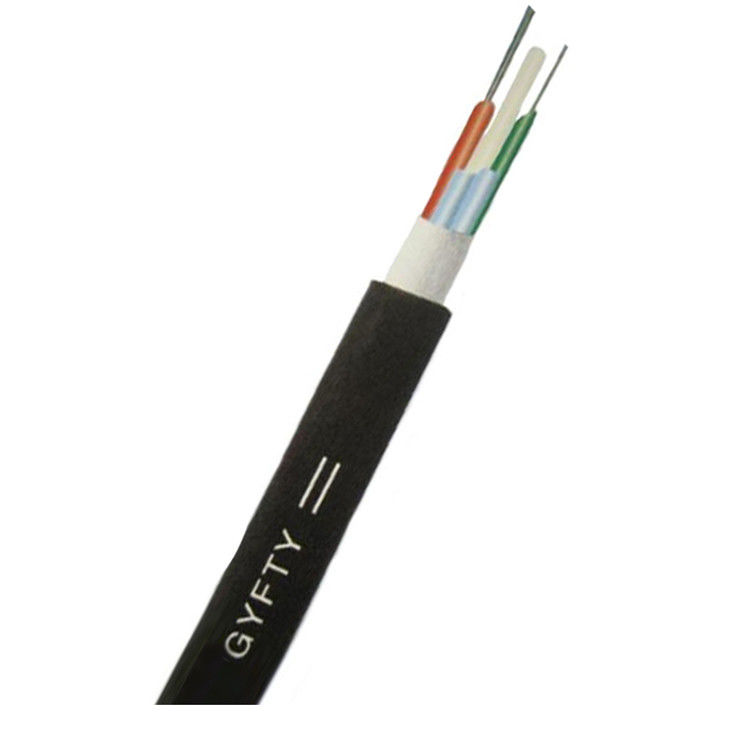

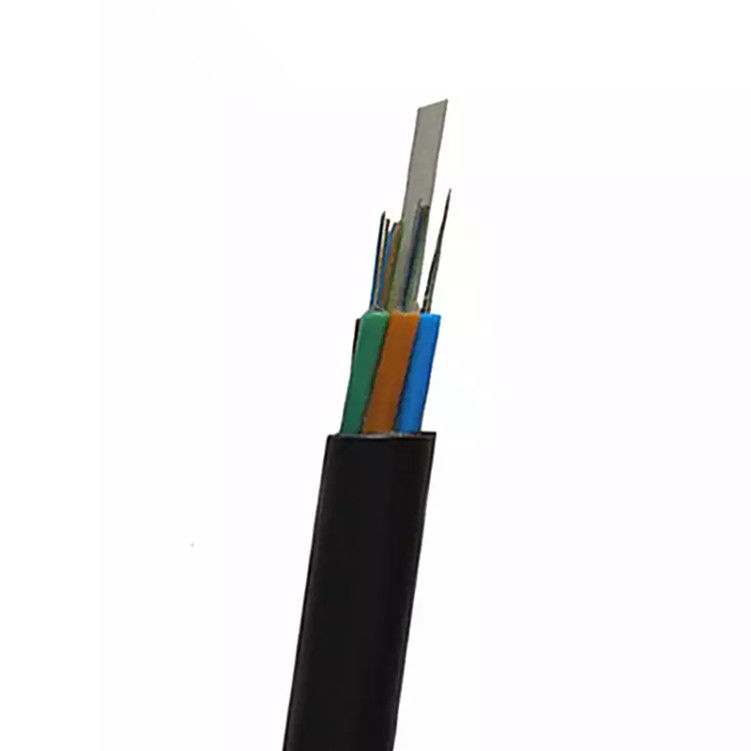

Non Metallic GYFTY Fiber Optical Cable Non Armored 24 48 72 Core networking
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | GYFTY |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.038/M ≥5000m $0.034/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
GYFTY cables are non-metallic and are used in power transmission systems, minefields and high electromagnetic places, mainly for overhead or pipeline use. Center reinforcement thing FRP. We offer singlemode GYFTY cables and multimode GYFTY cables. More parameters can be done according to your requirement.
Characteristics of product:
1.Small diameter,lighter and softness.
2.Reasoning designation,excellent water-blocking performance.
3.FRP as non-metallic strength member.
4.Good electromagnetism resistance ability.
5.Thunder proof Single Mode optical fiber cable.
Application
Aerial and duct application
Access network and local network in high electromagnetic interfering and frequently lighting areas
Specification:
| Fiber count | 2~36 | 38~60 | 62~72 | 74~84 | 86~96 | 98~108 | 110~120 | 122~132 | 134~144 | |
| Max. cores in tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |
| Cable diameter | 12.7 | 13.3 | 13.9 | 14.7 | 15.5 | 16.3 | 17.1 | 17.9 | 18.7 | |
| Weight | 150 | 165 | 182 | 205 | 225 | 250 | 275 | 300 | 330 | |
| Tensile strength (N) | Long term | 1000 | ||||||||
| Short term | 3000 | |||||||||
| Crush Resistance (N/100MM) | Long term | 1000 | ||||||||
| Short term | 3000 | |||||||||
| Bending Radius (MM) | Dynamic | ≥20 * Cable diameter | ||||||||
| Static | ≥10 * Cable diameter | |||||||||
| Operating Temperature (ºC) | -40~+60 | |||||||||
| Application | Aerial ,Direct burial | |||||||||
FOCUS ON QUALITY
| Cable Model | GYFTY Outdoor Network Fiber Optic Cable |
|---|---|
| Sheath Material | PE, HDPE Or Hrpe |
| Number Of Fiber | 24-144cores |
| Length Of Cable | Generally Is 2km, Can Be Required. |
| Cable For | Aerial Or Duct. |
| Characteristics | FRP Central Strength Member,Tube Filling Gel |
