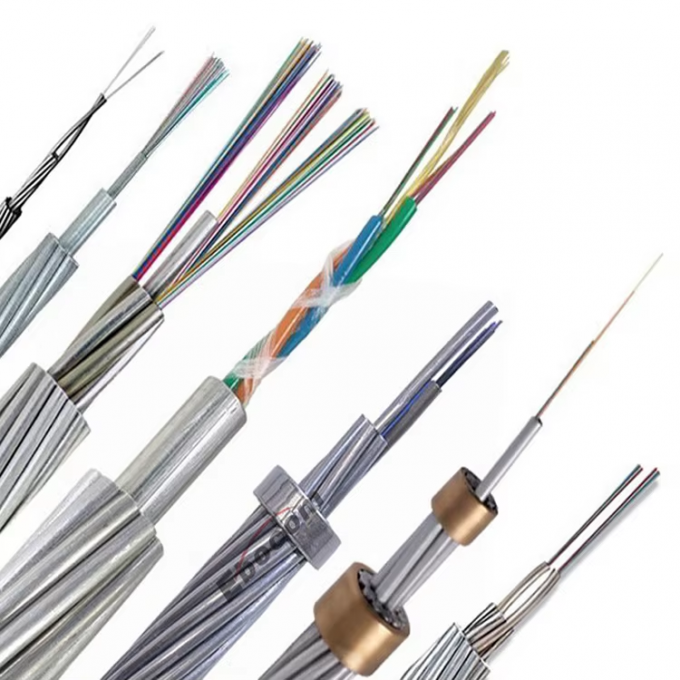

OPGW Ground Wire Fiber Optical Cable 24 Core Hilos Centrol Loose Tube For Aerial 220KV Tower Communicacion
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | OPGW-24B1-70[77;24] |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.8/M ≥5000m $0.78/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
Product Description:
OPGW is primarily used for power communications and its accessories, relay protection, automatic transmission, and high-voltage line installation.

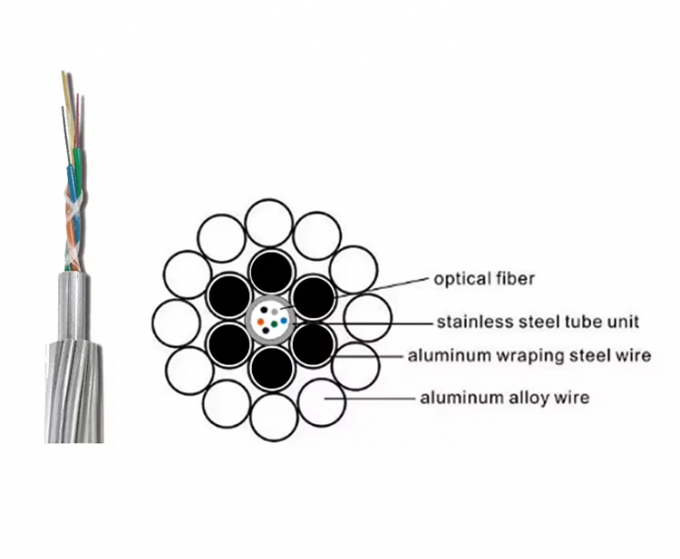

It consists of a central stainless steel tube wrapped with a single or double layer of aluminum-clad steel (ACS) wire, or a combination of ACS steel and aluminum alloy wire. OPGW is the most widely used optical cable, designed to meet the most common power line requirements.
Main features:
1. Designed, tested, and manufactured to high-quality standards, using Grade A materials to ensure long-term reliability.
2. Easy maintenance and convenient line crossings, its mechanical properties meet the requirements of large line spans. OPGW uses metal armor, which is impervious to corrosion and degradation caused by high voltage.
3. OPGW construction requires power outages, resulting in significant losses. Therefore, OPGW is essential for high-voltage line construction above 110kV.
4. OPGW optical cables are primarily used for 500kV, 220kV, and 110kV to 35kV lines. Due to power outages and safety concerns, they are often used in new lines.
5. The sealed stainless steel tube provides excellent protection for the optical fiber against moisture and extreme environments.

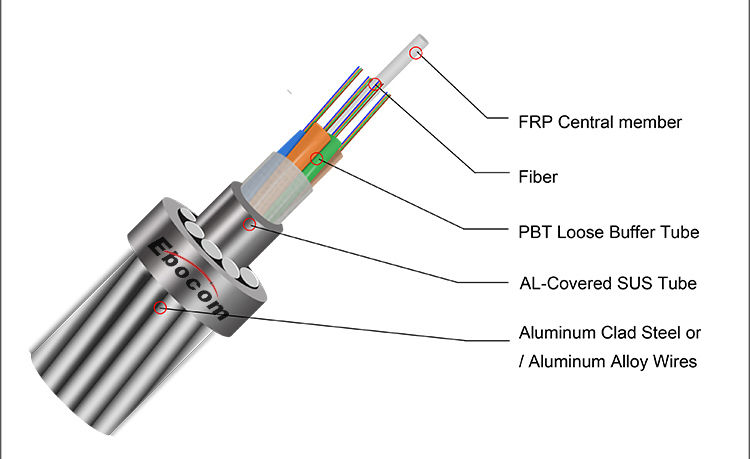

Structure & Technical Specifications:
| Model Number | OPGW |
|---|---|
| Cable Mode | Optical Ground Wire |
| Cable Type | Stranded Opgw Cable |
| Fiber Count | 24 Cores |
| Fiber Type | G652D/G657A1/G657A2 |
| Strength Member | Steel Wire FRP |
| Key Words | Optical Fiber Cable |
| Application | Overhead/Aerial |

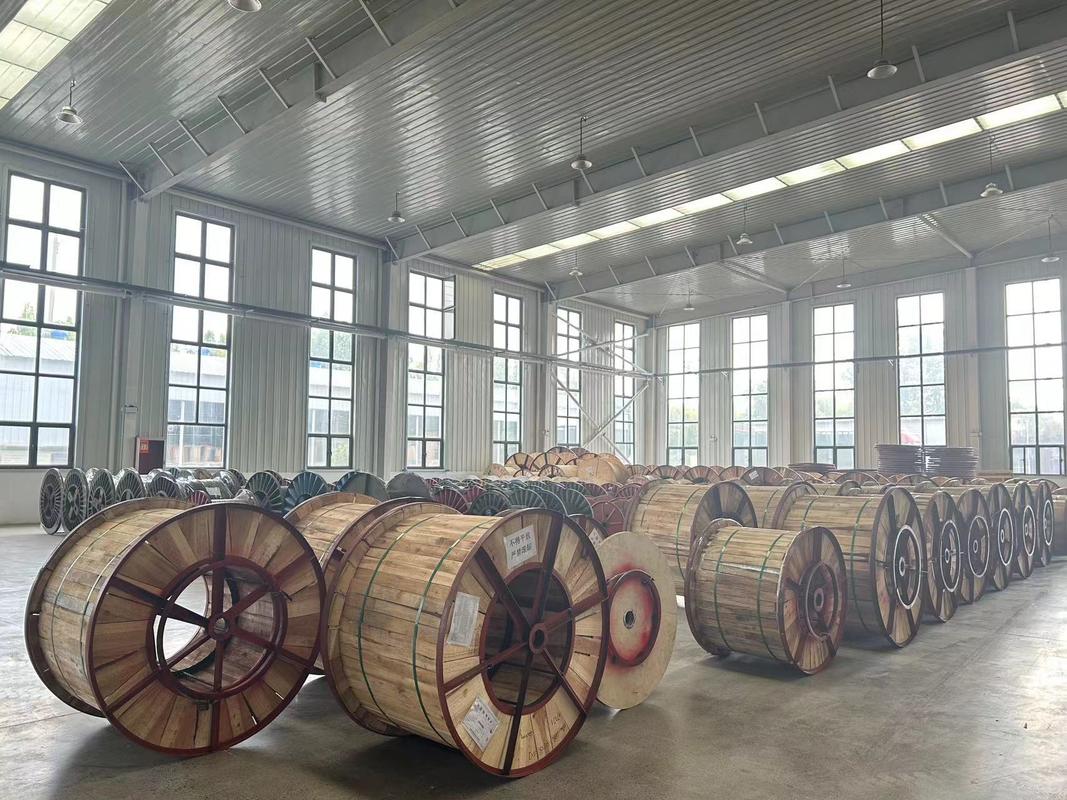

Our Packing and Delivery Process
