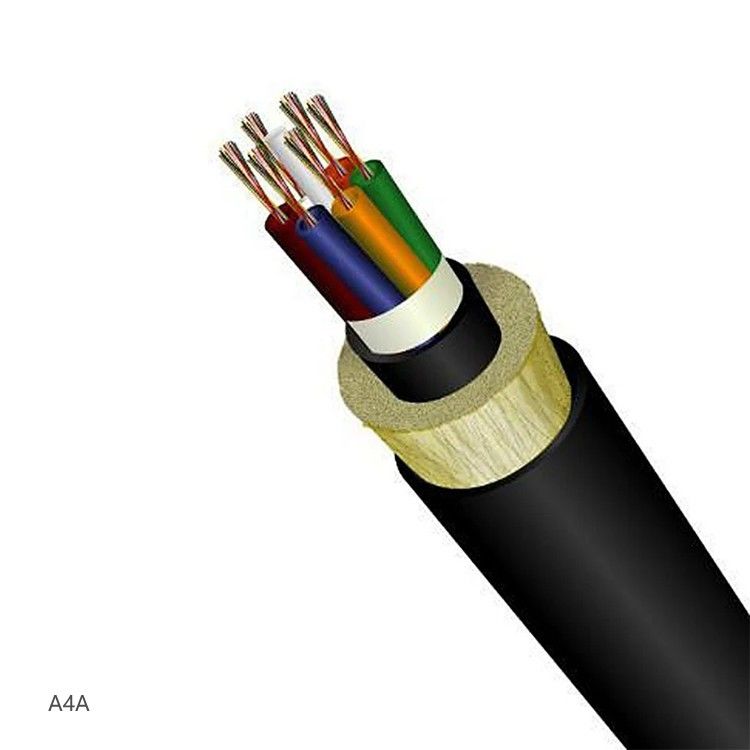

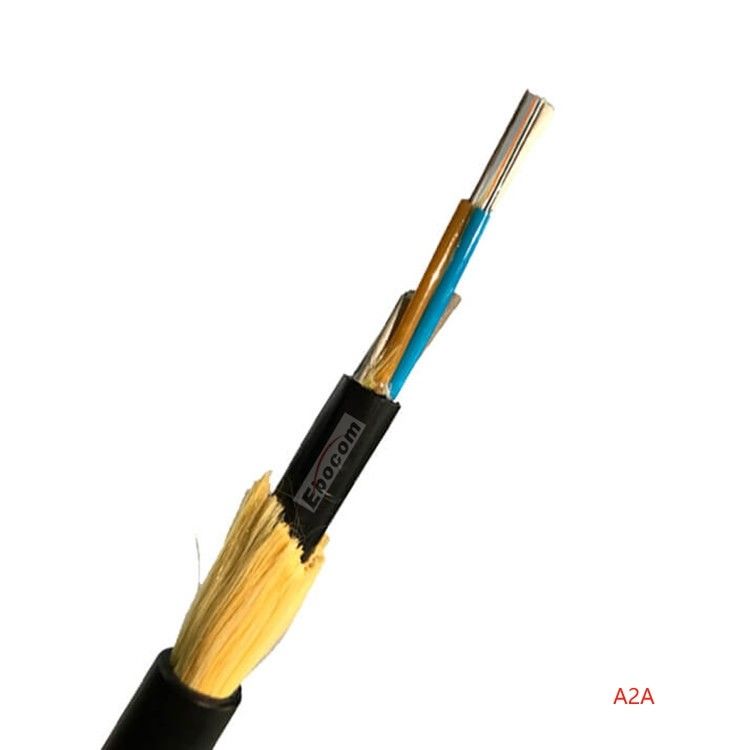

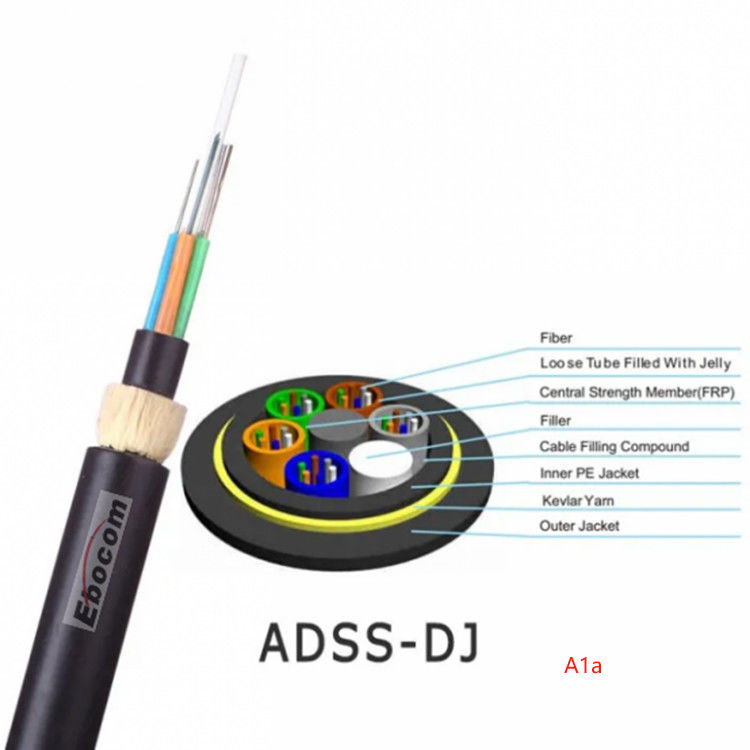

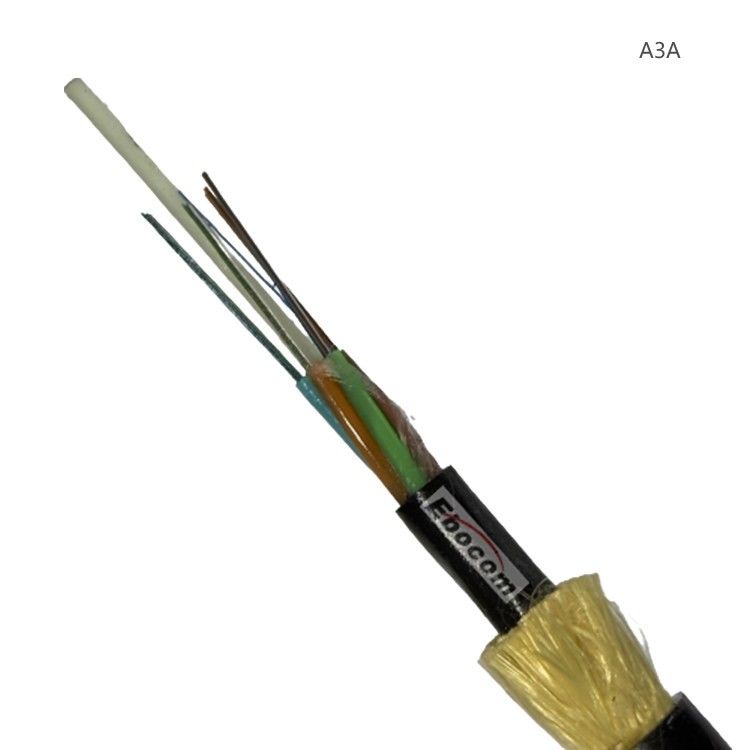

Outdoor ADSS Fiber Optic Cable 24 Core SM G652D span 50 double jacket low loss high speed
| Place of Origin | Shandong，China |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | ADSS -48B1.3 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.39/M ≥5000m $0.36/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
ADSS (All-Dielectric Self-Supporting) cable is ideal for installation in distribution as well as transmission environments, even when live-line installations are required.
Features :
Can be installed without shutting off the power.
Excellent AT performance. The maximum inductive at the operating point of AT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back props.
Large span lengths and the largest span is over 200m.
Good performance of tensile strength and temperature.
The design life span is over 30 years.
Product Application:
– The actual status of overhead power lines is taken into full consideration when ADSS
cable is being designed. For overhead power lines 10kv and 35kvPE outer sheath
is recommended.
-For power lines 110kV and 220KVATouter sheath is recommended.
-The dedicate design of aramid quantity and stranding process can satisfy the demand on
various spans.
Detailed Specification:
| Model NO. | ADSS-250M |
| Core | 2-288 |
| Certification | Certification and compliance documents are available subject to the confirmed product configuration and destination-market requirements. |
| Brand | JQ |
| Sheath Material | LSZH/PE Sheath/Flame Retardant Sheath/Anti-Rodent |
| Cable Structure | ADSS Optical Fiber Cable |
| Applications | Aerial |
| Fiber Options | G652D ,G657A,Om1,Om2,Om3,Om4 |
| Fiber Count | 2-288 Cores |
| Strength Member | Aramid Yarn |
| Material of Jacket | Black Polyethylene (PE) |
| Transport Package | Wooden Drum Iron-Wooden Drum with Fumigated or Not |
| Product Name | Single Jacket ADSS |
| Jacket Layer | Single Sheath |
| Fiber Type | SM/MM |
| Operation Temp | -40~+70℃ |
| Structure | Stranded |
| Strength Member | FRP |
| Product Name | Outdoor ADSS Fiber Optic Cable 24 Core SM G652D Span 50 Double Jacket Low Loss High Speed |
