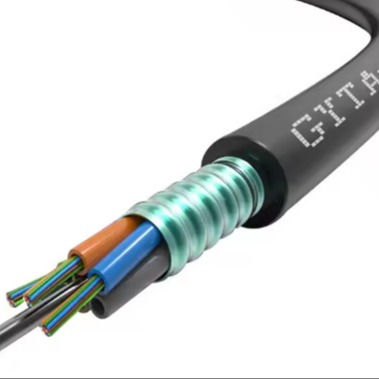

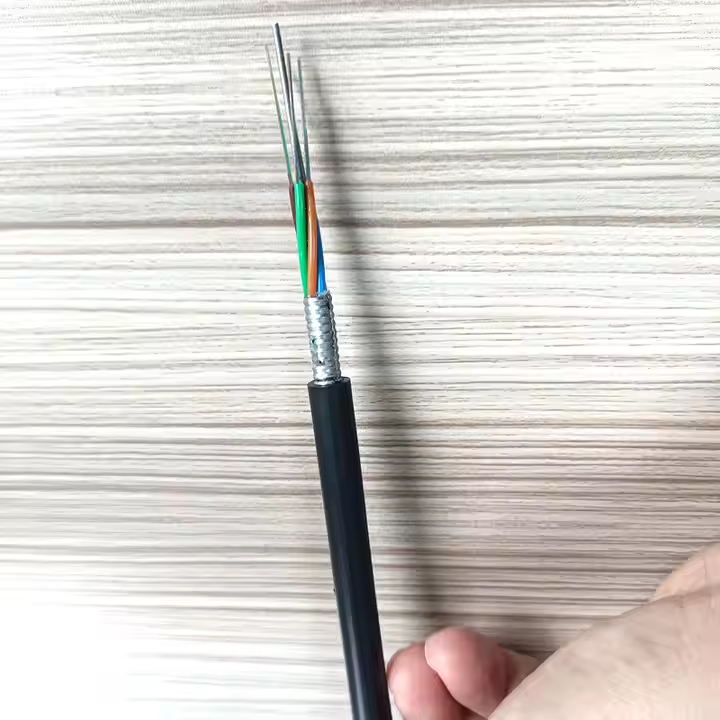

GYTA 12–24 Core G652D Duct and Aerial Fiber Cable
Outdoor GYTA Single Mode G652D Fiber Optic Cable 12 24 Core for Duct and Aerial Installation

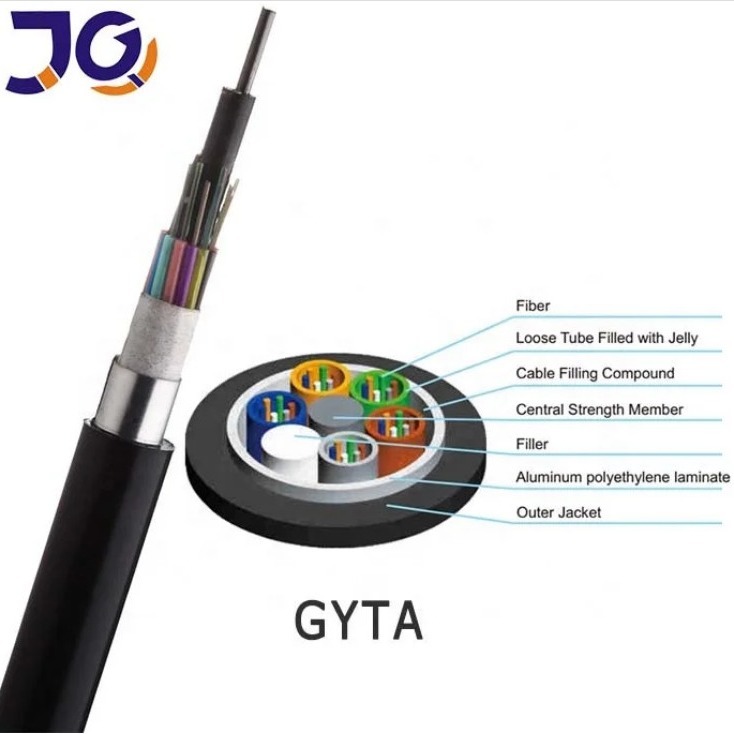

GYTA Fiber Optic Cable Features
- Stranded loose tube structure provides stable fiber protection
- PSP aluminum tape armor enhances moisture blocking and crush resistance
- Water blocking filling compound ensures excellent watertight performance
- High strength central strength member improves mechanical reliability
- PE outer sheath offers UV resistance and long term outdoor durability
- Suitable for single mode and multimode fibers
Applications
- Outdoor duct installation in backbone and access networks
- Aerial installation for metropolitan and long distance communication lines
- Telecom broadband and data transmission systems
- Communication infrastructure projects requiring high reliability
| Fiber Count | 1 2 4 6 8 12 24 36 48 72 96 144 288 cores |
| Brand Name | JQ/OEM |
| Length | 1km 2km 3km 4km 5km |
| Armored | Steel Tape or Aluminunm Tape |
| Fiber Count | 6 | 12 | 24 | 32 | 48 | 72 |
| Cable Diameter (mm) | 8.8 | 8.8 | 9.0 | 9.0 | 9.0 | 9.2 |
| Tolerance Range (mm) | ±0.2, or customized | |||||
| Cable Weight (kgs/km) | 75 | 75 | 75 | 75 | 75 | 75 |
| Loose tube Diameter(mm) | 1.6 or 2.0 | |||||
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Mechanical Characteristic
| Tensile (N) | Long term | 600 |
| Short term | 1500 | |
| Crush (N/100mm) | Long term | 300 |
| Short term | 1000 | |
| Min. Bending radius (D=Cable diameter) | Dynamic | 20xD |
| Static | 10xD | |
| Temperature Range (℃) | -20~+70 | |
Application
Suitable for external application in duct and aerial
FAQ – GYTA Fiber Optic Cable
1. Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in fiber optic cable production. Our factory is located in Guangzhou, China.
2. What fiber types are available for GYTA cable?
GYTA cables support single mode (G652D, G657A1/A2) and multimode (OM1, OM2, OM3, OM4) fibers.
3. What is the typical fiber core count?
Common core counts include 2–144 cores. Custom fiber counts are available upon request.
4. Is the GYTA cable suitable for outdoor installation?
Yes. GYTA cable is designed for outdoor duct and aerial installations with excellent moisture resistance and mechanical strength.
5. How does the cable protect against water ingress?
The cable uses water blocking compounds and aluminum tape (PSP/APL) to ensure reliable waterproof performance.
Specifications
| Fiber Type | YOFC,Fiberhome,as Request |
| Color | Black |
| Jacket | PE,MDPE,LSZH,PVC,HDPE |
| Strength Member | Steel Wire/FRP Glass Yarn |
| Fiber Count | 2-288 Cores |
| Installation | Aerial & Duct |
| Armored | Steel Tape |
| Application | Network Communication |
| Highlight | GYTA single mode fiber optic cable , 12 core duct fiber optic cable , aerial installation G652D fiber cable |
Basic Information
| Place of Origin | Guangzhou,China |
| Brand Name | JQ/OEM/Customize |
| Certification | ISO9001 ROHS CE-EMC FCC SDOC |
| Model Number | GYTA / GYTS |
Payment & Shipping Terms
| Packaging Details | wooden drum |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 4500KM Per Month |
