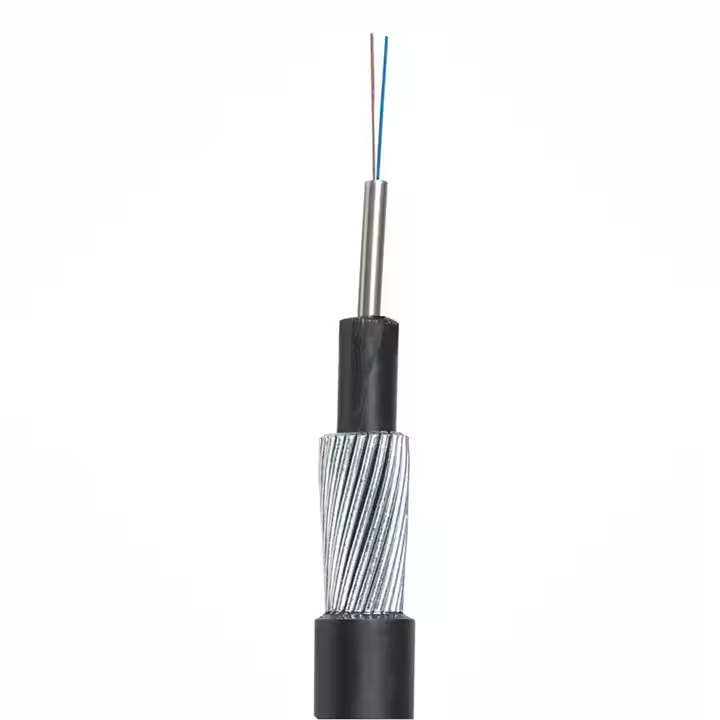

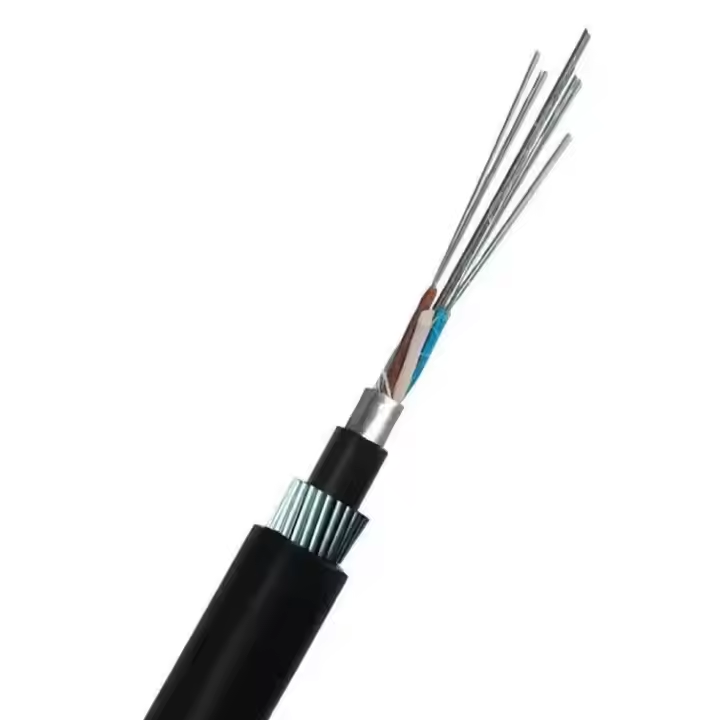

GYTA33 12–48 Core Double-Sheath Submarine Armored Cable

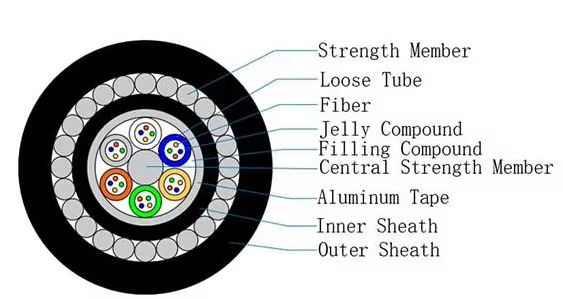

1. Central Strength Member: Metal reinforcement component to enhance tensile strength. 2. Loose Tube: Made of high-modulus material, filled with waterproof compound to protect the optical fibers. 3. Armor Layer: Single or double layer of fine round steel wires to improve mechanical performance.
Specification
| Fiber count | 2~30 | 32~36 | 38~60 | 62~72 | 2~36 | 38~72 | |
| CSM/Steel wire (mm) | –/1.5 | –/2.0 | –/1.8 | 2.4/1.8 | –/2.0 | 2.4/1.8 | |
| Element mumber | 5 | 6 | 5 | 6 | 6 | 6 | |
| Max. cores in tube | 6 | 6 | 12 | 12 | 6 | 12 | |
| Diameter of inner sheath | 8.3 | 8.8 | 9.1 | 9.7 | 10.5 | 10.5 | |
| Steel wire diameter and No. | Φ1.0/28 | Φ1.0/29 | Φ1.0/30 | Φ1.0/32 | Φ1.5/24 | Φ1.5/24 | |
| Cable diameter approx (mm) | 14.3 | 14.8 | 15.1 | 15.7 | 17.5 | 17.5 | |
| Weight approx (kg/km) | 315 | 328 | .340 | 360 | 520 | 520 | |
| Tensile strength (N) | Long term | 6000 | 10000 | ||||
| Short term | 10000 | 2000 | |||||
| Crush Resistence(N/100mm) | Long term | 1000 | |||||
| Short term | 3000 | ||||||
| Bending Radius (mm) | Dynamic | ≥30 ×Dia. Of cable | |||||
| Static | ≥15×Dia. Of cable | ||||||
| Operating Temperature (°C) | -40°C ~+ 70°C | ||||||
| Application | Directly burial and Under water | ||||||
Where can we use the product
1.Submarine Composite Power Cables – land, offshore wind farms, offshore oil and gas installations
2. Umbilicals – interconnecting/ connecting subsea installations to fixed, floating platforms, FPSOs
3. Fibre Optic Cables – power and signal feeding subsea installations, scientific sensors, seismic arrays, etc
4. ROV Control Cables – ROVs and trenchers, dynamic applications down to 7,000 meters.
Packing & Delivery
Lead time:Usually 7days,it depends on order quantity.
Shipping methods:by sea LCL/FCL,It depends on order quantity.
Company Profile
02:36
02:36
OEM&ODM
Certifications
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for import.Every 2km/3km/4km for one drum.And the dimension of the drum can be customized according to your requirement.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW,FCA, FOB, CFR, CIF, DDP.
Q4. How about your delivery time?
A:Generally, it will take 10 to 20 days after receiving your prepayment. The specific delivery time depends on the items and thequantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6. What is your sample policy?
A: We can provide FREE sample if we have them in stock, but the customers have to pay the courier cost.
Specifications
| Cable Length | 1KM/2KM/3KM/4KM Per Drum |
| Outer Jacket | PE |
| Tube | Central Loose Tube |
| Armoured Type | Aluiminum Tube |
| Fiber | G652D, G657A1, G657A2 |
| Sample Status | In Stock |
| Feature | Self-supporting |
| Cores | As Per Buyer’s Request |
| Manufacturer | Yes |
| Highlight | GYTA33 Submarine Optical Cable , Fiber Optic Equipment Submarine Cable |
Basic Information
| Place of Origin | Guangdong, China |
| Brand Name | ISO 9001/CE/FCC/ROHS |
| Certification | ISO 9001/CE/FCC/ROHS |
| Model Number | GYTA33 |
Payment & Shipping Terms
| Packaging Details | Wooden drum |
| Delivery Time | 5-8 working days |
| Payment Terms | D/P, T/T |
| Supply Ability | 100000m/per day |
