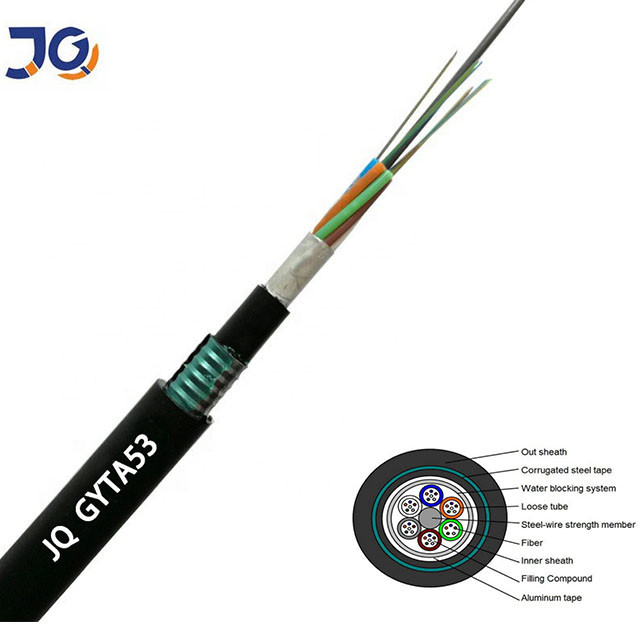

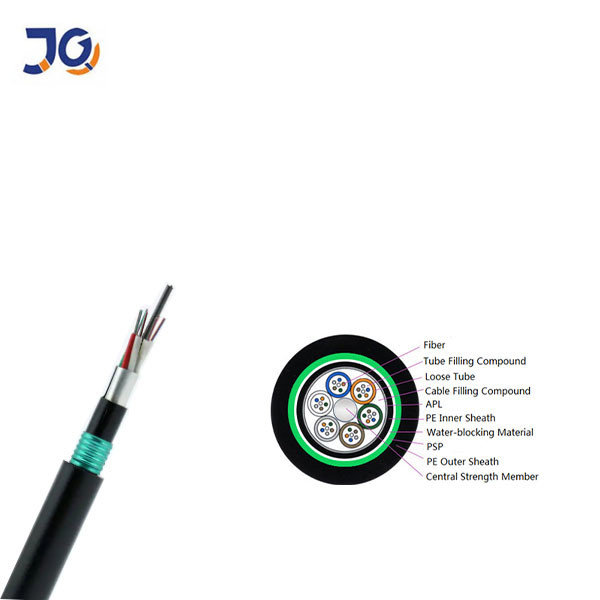

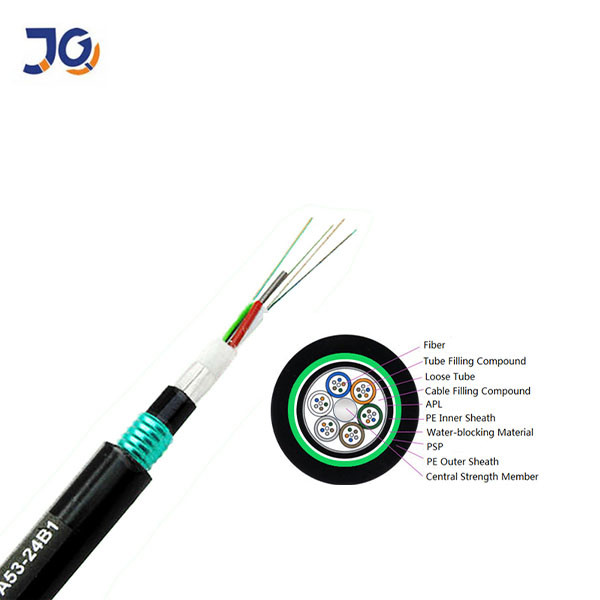

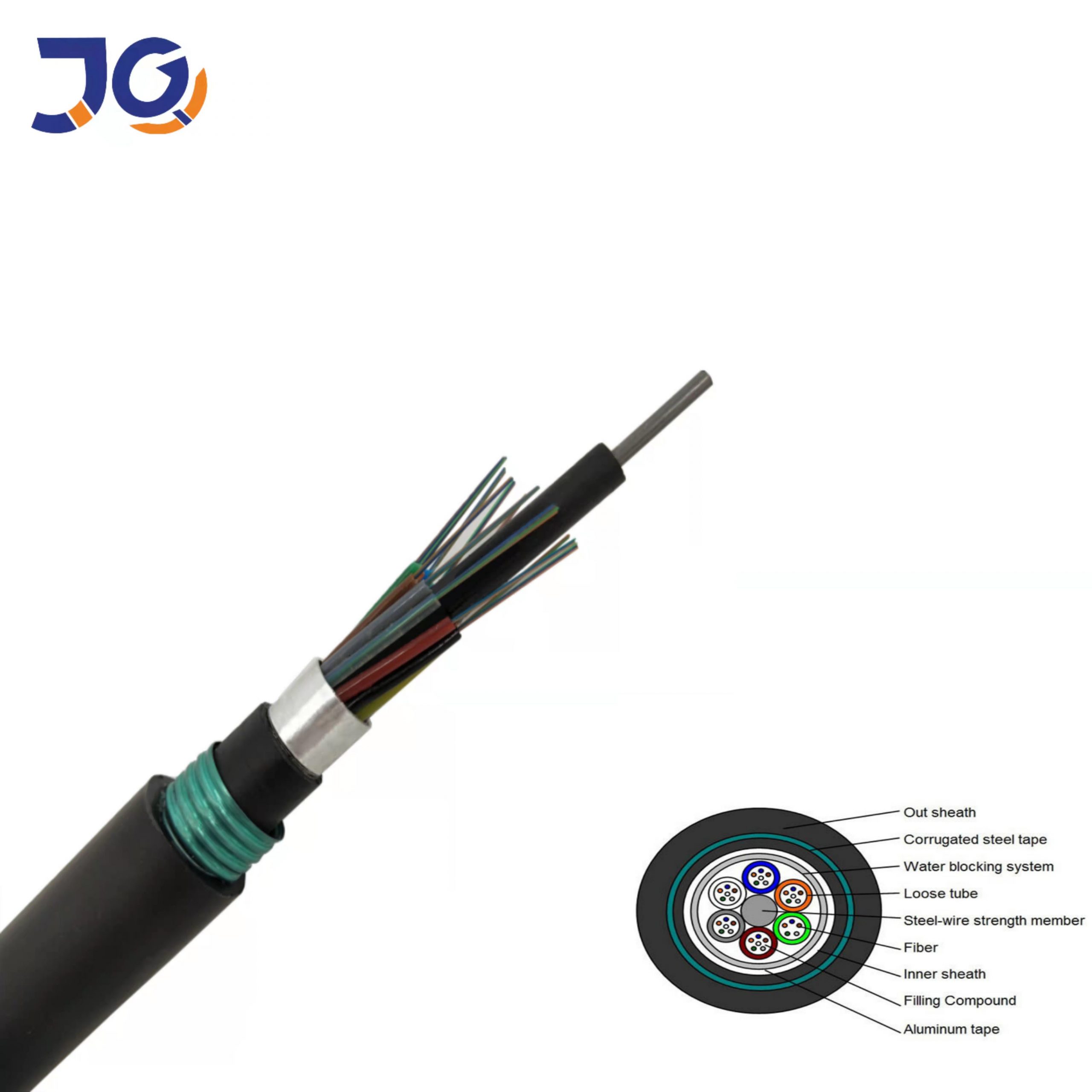

GYTA53 Double-Jacket Direct Burial Fiber Cable, 4–144 Cores

Applications of Fiber Optic Cable GYTA53
These corrugated steel tape and aluminum tape armored and double sheath cables are suitable for installation harsh environments where mechanical impact on the cable is to be expected, f or instance in direct buried application. They are also suitable for installation in ducts where the rodent resistance is to be expected or the moisture resistance is expected.
Fiber Optic Cable GYTA53 Applications:
♦ Laying modes: Direct Buried
♦ Long-distance communication, local trunk line, CATV & computer networks system
Conclusion
GYTA53 fiber optic cable is a durable type of fiber optic cable and that fact has enabled it to effectively penetrate in the market. Soon, GYTA53 fiber optic cable will be the market leader in the communication industry due to its fiable growing trend. Moreover, it has built its brand in areas that are subject to high pressure since its most suitable in those areas. This article therefore, analyses the fanatstic features and uses of GYTA53 fiber optic cable.

Fiber Optic G652D

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non-circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±5
Coating non-Circularity		%	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		nm	≤1260
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
Proof stress level		kpsi	≥100

Company profile

1.Located in Guangzhou China2.12 years experiance of producing fiber optic cable

3.CE/ROSH/FCC/ISO9001 Certifications

4.Exporting fiber optic cable to all over the world

Exhibition

Certification:

FAQ:

1.Are you the real manufacturer?
Yes. We are the real manufacturer with 10years history.

2.What is your fiber brand ?
Jiqian
3.Do you provide samples?is it free or charged?Yes,samples are for free,just pay for freight

4.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

5.What is your warranty period?
25-30 years for outdoor fiber optic cable

6.Which kind of certification you have ?
ISO9001,FCC,ROHS,CE

7.What is your delivery time?
Usually 5-7 working days

8.What is your payment way?
T/T, L/C, Western Union

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.
