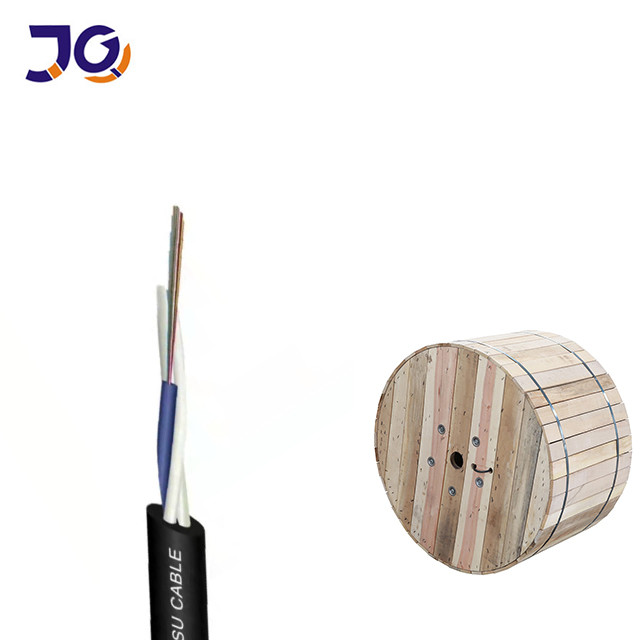

Mini ADSS 4–8 Core All-Dielectric Fiber Cable, 50 m Span
Uni-loose Tube All Dielectric Outdoor 8 Core 4 Core Mini ADSS 50M Span Fiber Optical Cable

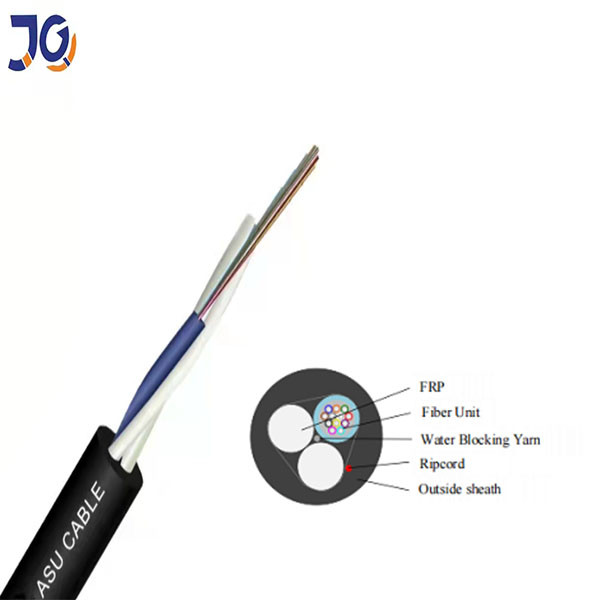

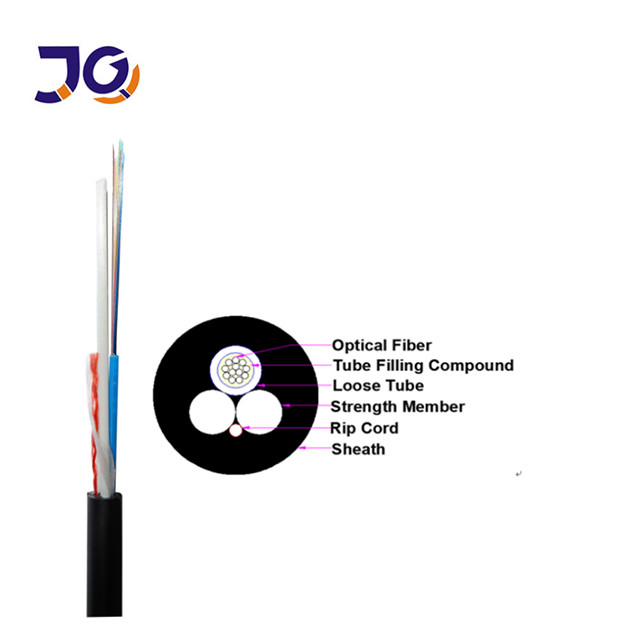

Cable Parameters:
| Item | Parameters | |
| Fiber Count | 12 | |
| Water blocking material | Water block yarn | |
| Span | 100m | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Yellow,Green,Red,Violet,White ,Blown, Pink, Black, Gray, Orange, Aqua | |
| Loose tube | Diameter | 2.3mm±0.1mm |
| Material | PBT | |
| Color | blue | |
| Filling compound in loose tube | Gel | |
| Strength Member | FRP | 2.0mm |
| Armoured | Non-armoured | |
| Outer sheath
Cable diameter |
Material | PE |
| 8.0mm | ||
Fiber Optic G652D
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | ≤1.0 | |
| Core/cladding concentricity error | mm | ≤0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | ≤6.0 | |
| Coating/cladding concentricity error | mm | ≤12.0 | |
| Cable cut-off wavelength | nm | ≤1260 | |
| Attenuation Coefficient | 1310nm | dB/km | ≤0.36 |
| 1550nm | dB/km | ≤0.22 | |
| Proof stress level | kpsi | ≥100 | |

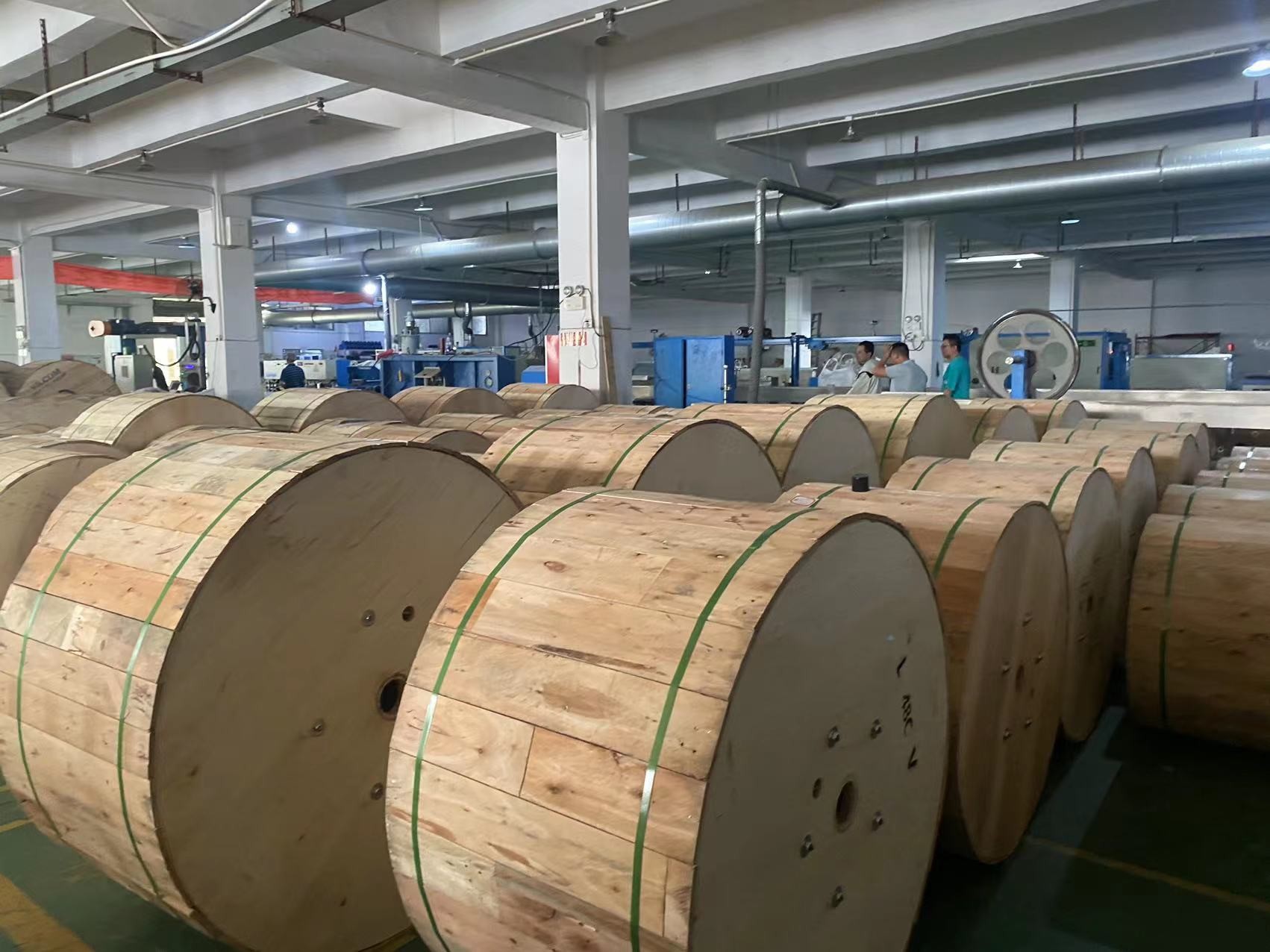

Packing&Delivery
2km/3km/4km per wooden drum or customized
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-200 | >200 |
| Est time(day) | 3-5 days | negotiable |
FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you provide OEM or ODM
A: Yes
Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock
Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Specifications
| Highlight | All Dielectric Outdoor Fiber Optic Cable , 4 Core Outdoor Fiber Optic Cable , 50M Span Outdoor Fiber Optic Cable |
Basic Information
| Place of Origin | China |
| Brand Name | Jiqian |
| Certification | FCC/ROHS/ISO9001/CE |
| Model Number | Mini ADSS/ASU80 |
Payment & Shipping Terms
| Packaging Details | Plywood drum |
| Delivery Time | 3-5 days,it depends on order quantity |
| Payment Terms | L/C, T/T, Western Union,Alipay |
| Supply Ability | 4500 per month |

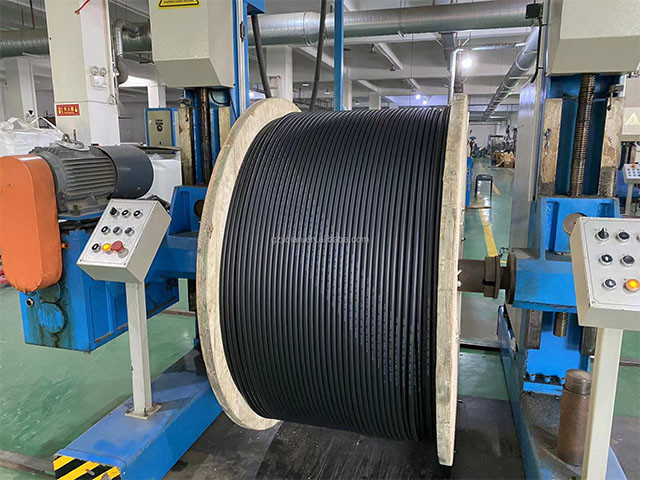

Our Packing and Delivery Process
