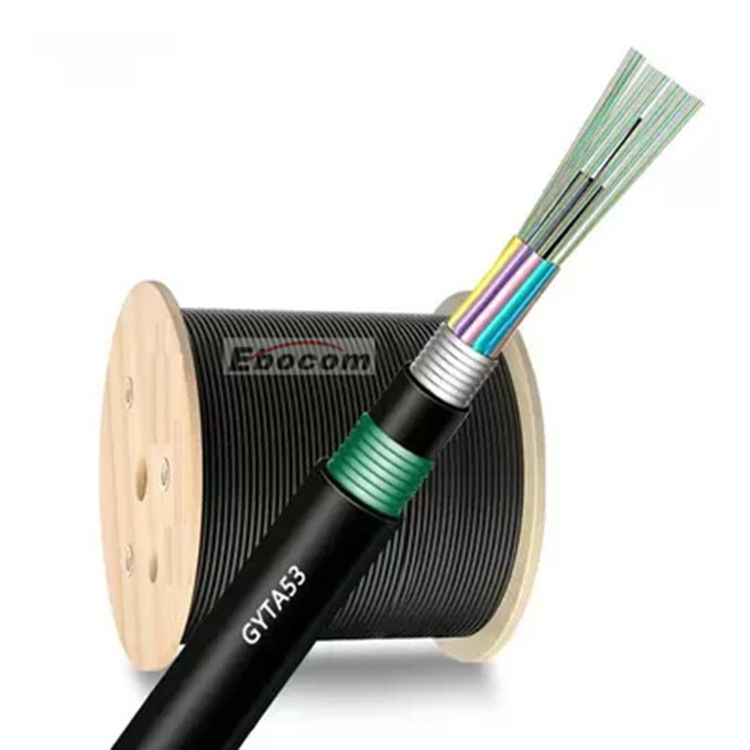

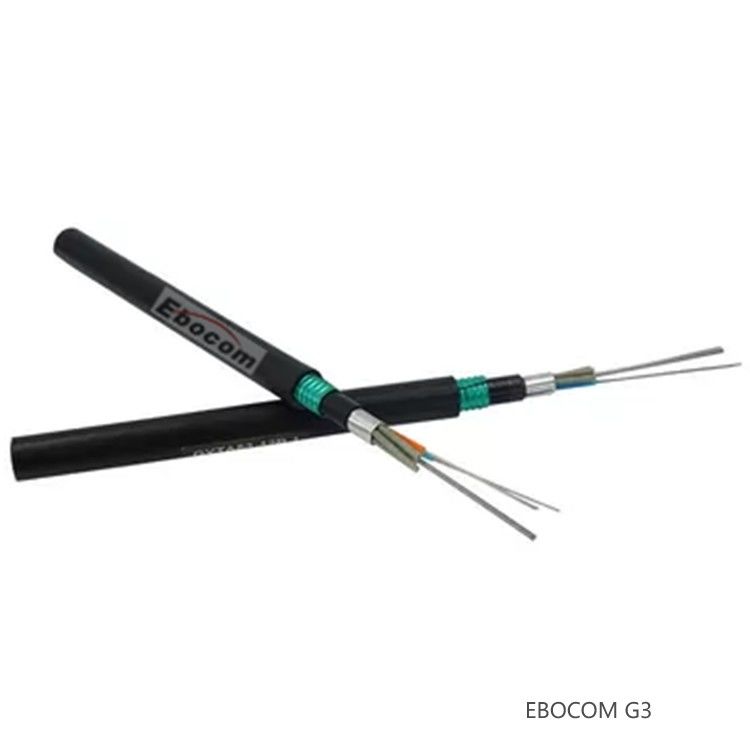

2-144 core GYTS53 GYTA53 underground optical cable SM G652D PE jacket Double Armored long distance communication
| Place of Origin | Shandong, China (Mainland) |
| Brand Name | JQ |
| Certification | ISO TLC |
| Model Number | GYTS53 / GYTA53 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.23/M ≥5000m $0.21/M |
| Standard Packaging | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Payment Terms | T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |

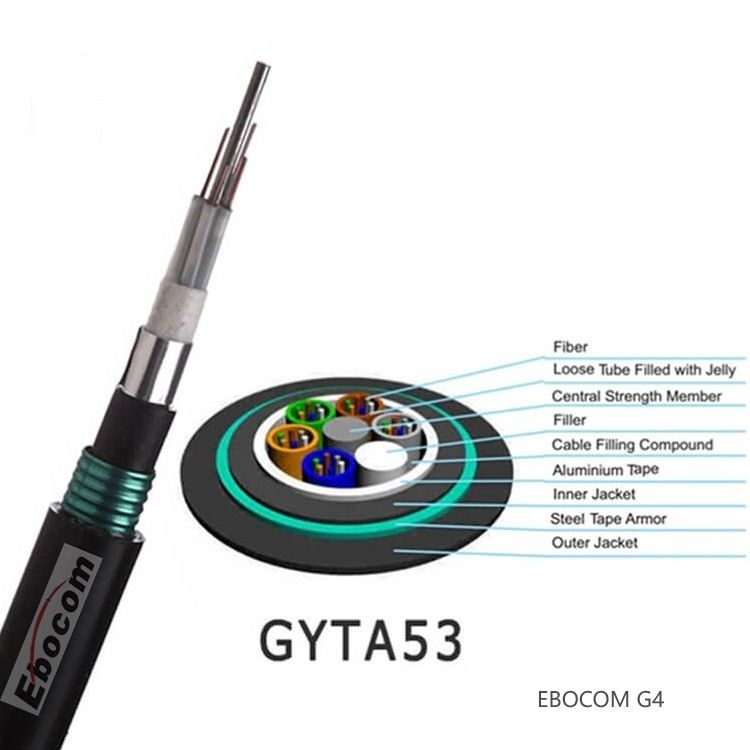

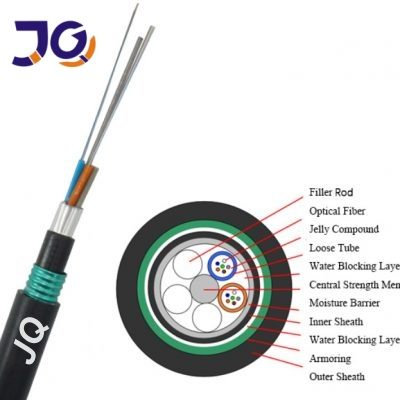

Main structure:
- The center reinforcement is made of steel wire
- Loose tube filling compound
- 100% cable core filling
- PSP enhances moisture resistance
Main Features:
- Good mechanical properties and temperature properties
- High strength loose sleeve, resistant to hydrolysis
- Special tube filling compounds ensure critical protection of the fiber
- Specially designed compact structure is conducive to preventing loose tube shrinkage
- Compression resistance and flexibility
- PE sheath protects the cable from ultraviolet radiation
- We can also provide OEM service, and according to customer’s packaging requirements.
Fiber Specification:
| Fiber style | Unit | SM G652D |
SM G657A1 |
SM G657A2 |
|
| condition | nm | 1310/1550 | 1310/1550 | 1310/1550 | |
| attenuation | dB/km | ≤0.36/0.23 | ≤0.35/0.21 | ≤0.35/0.21 | |
| Dispersion | 1310nm | Ps/(nm*km) | ≤18 | ≤18 | ≤18 |
| 1550nm | Ps/(nm*km) | ≤22 | ≤22 | ≤22 | |
| Zero dispersion wavelength | nm | 1312±10 | 1312±10 | 1300-1324 | |
| Zero dispersion slope | ps/(nm²×Km) | ≤0.091 | ≤0.090 | ≤0.092 | |
| PMD Maximum Individual Fiber | [ps/√km] | ≤0.2 | ≤0.2 | ≤0.2 | |
| PMD Design Link Value | ps/(nm²×Km) | ≤0.08 | ≤0.08 | ≤0.08 | |
| Fiber cutoff wavelength λc | nm | >=1180,≤1330 | >=1180,≤1330 | >=1180,≤1330 | |
| Cable cutoff wavelength λcc | nm | ≤1260 | ….. | ….. | |
| MFD | 1310nm | um | 9.2±0.4 | 9.0±0.4 | 9.8±0.4 |
| 1550nm | um | 10.4±0.8 | 10.1±0.5 | 9.8±0.5 | |
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.05 | ≤0.05 | |
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.05 | ≤0.05 | |
| Difference backscatter coefficient | dB/km | ≤0.03 | ≤0.03 | ≤0.03 | |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ≤0.01 | |
| Cladding diameter | um | 125.0±0.1 | 124.8±0.1 | 124.8±0.1 | |
| Cladding non-circularity | % | ≤1.0 | ≤0.7 | ≤0.7 | |
| Coating diameter | um | 242±7 | 242±7 | 242±7 | |
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | |
| Core/cladding concentricity error | um | ≤0.6 | ≤0.5 | ≤0.5 | |
| Curl(radius) | um | ≥4 | ≥4 | ≥4 | |
| Model | GYTS53 / GYTA53 |
| Brand | JQ |
| Sheath Material | PE |
| Operating Temperature | -40~+70℃ |
| Central Strength Member | FRP/Steel Wire |
| Cable Type | Loose Tube Stranded |
| Transport Package | Packed On Fumigated Iron/Wooden |
| Fiber Mode | SM G652D / Multi-Mode |
