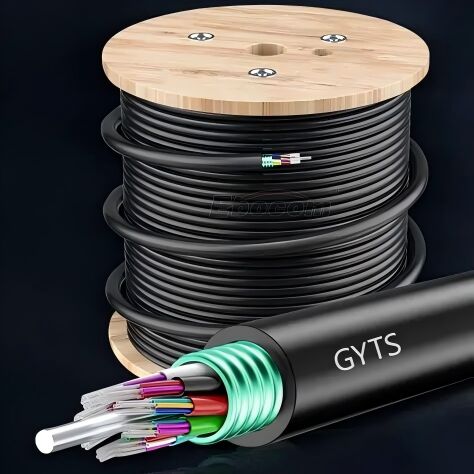

48 Core GYTS Fiber Optic Cable Industrial Standard for High-Density Backbones

Product Introduction

The 48 Core GYTS cable is a high-capacity, armored outdoor fiber solution designed for the backbone of modern telecommunication grids. It features a Stranded Loose Tube design, which provides the most stable mechanical protection for high fiber counts.

Wrapped in a heavy-duty Corrugated Steel Tape (PSP) armor and a high-density PE jacket, this 48-core cable is the ideal choice for operators who need a balance between massive data throughput and extreme physical durability in underground ducts or lashed aerial environments.

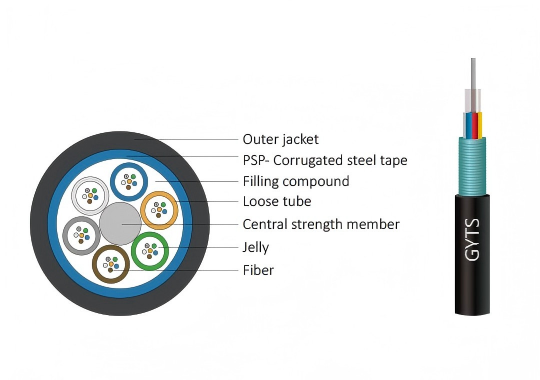

Technical Highlights & Construction

• Multi-Tube Configuration: The 48 fibers are organized into multiple jelly-filled loose tubes, stranded around a central steel strength member. This prevents fiber strain even during high-tension installations.

• Corrugated Steel Armor (PSP): Provides a high-strength metallic barrier that resists heavy soil pressure and protects against accidental mechanical damage during site maintenance.

• Hydrolysis-Resistant Tubes: Each loose tube is filled with a specialized gel to protect the glass fibers from moisture and hydrogen aging.

• Optimized for Pulling: The low-friction HDPE jacket is specifically formulated for long-distance pulling through complex conduit systems, reducing the risk of jacket tearing.

Key Technical Specifications (48 Core)

Targeted Application Scenarios

The 48 Core GYTS is the go-to solution for large-scale infrastructure:

• Metropolitan Area Networks (MAN): Acting as the primary fiber link between regional data hubs and neighborhood distribution points.

• Industrial Campus Backbones: Connecting multiple factory buildings or office blocks through underground utility tunnels.

• ISP Backbone Expansion: Ideal for expanding bandwidth in existing duct infrastructures where mechanical protection is a high priority.

• Lashed Aerial Installations: Used on utility poles when lashed to a messenger wire, providing a more rugged alternative to non-armored cables in stormy regions.
