Double Jacket ADSS-48B1.3 Fiber Optic Cable 48 Core G652D 100m Span
| Place of Origin | China |
| Brand Name | JQ |
| Certification | ISO |
| Model Number | ADSS |
| Minimum Order Quantity | 2000M |
| Price | 0.02 USD per Meter |
| Standard Packaging | Plywood Drum or Custimized |
| Delivery Time | 3-10 days |
| Payment Terms | L/C,T/T |
| Supply Ability | Supply capacity is subject to the confirmed specification, quantity and production schedule. |
48 Core Double Jacket ADSS Fiber Optic Cable (100m Span, G.652.D)
Product Overview
The 48 Core Double Jacket ADSS Cable is a heavy-duty, all-dielectric self-supporting optical fiber cable engineered specifically for aerial distribution networks. This high-capacity model is structurally optimized for a 100-meter span distance, making it the ideal solution for regional power lines, campus backbones, and FTTH middle-mile deployments.

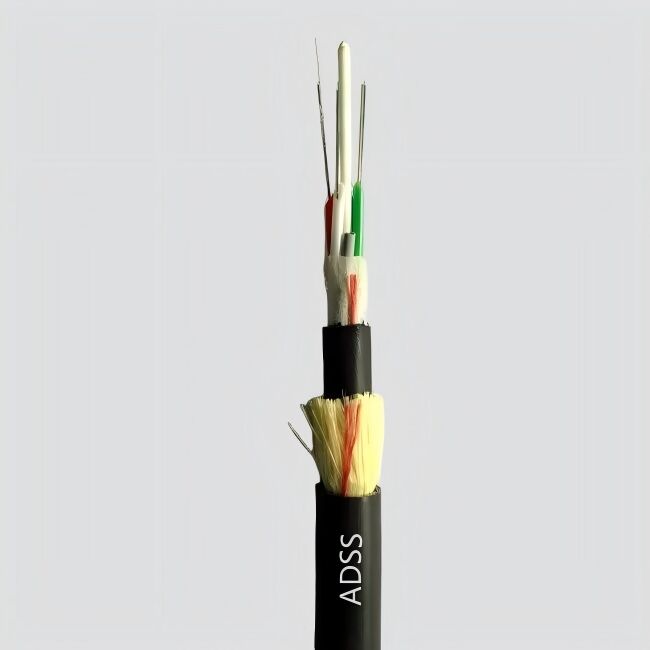

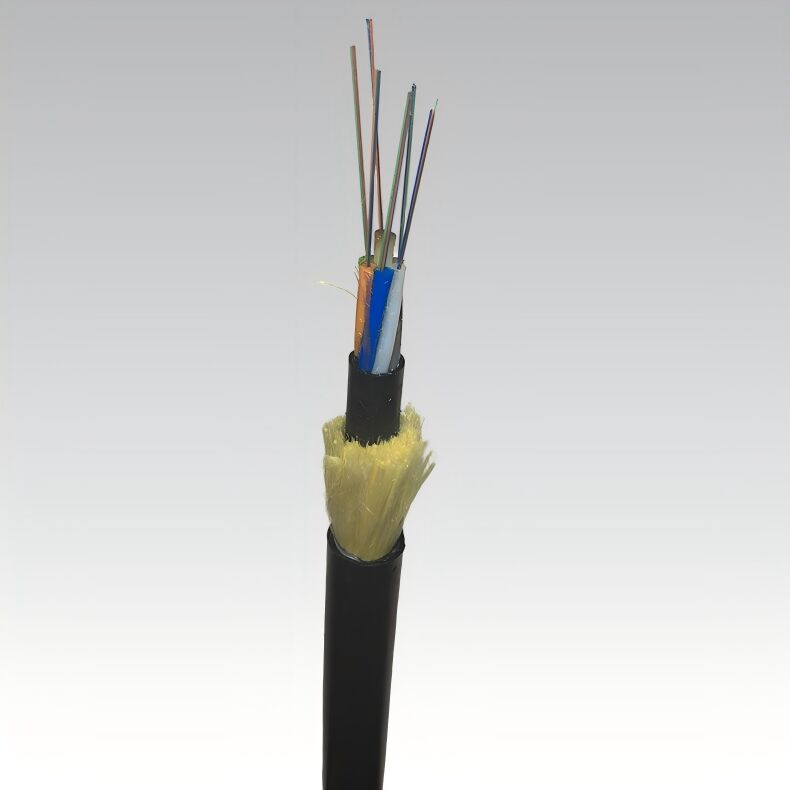

Featuring a double-sheath (double-jacket) construction, this cable provides an extra layer of mechanical protection against harsh environmental variables compared to single-jacket variants. Reinforced with premium, high-modulus aramid yarn, it is built to handle wind loads and ice accumulation without stressing the internal G.652.D single-mode fibers, ensuring seamless high-speed data transmission for decades.
Key Features & Product Advantages
-
Double Jacket Security: The dual-layer PE (Polyethylene) sheath design provides superior resistance to abrasion, environmental stress cracking, and mechanical puncture.
-
100-Meter Span Optimization: Precisely engineered aramid yarn density ensures the cable maintains safe sag and tension profiles over 100m spans.
-
All-Dielectric Construction: Contains no metal elements. It can be safely installed on high-voltage distribution lines without requiring power shutdowns or worrying about electromagnetic interference (EMI) or lightning strikes.
-
Premium G.652.D Fiber Cores: High-density 48-core layout offering low attenuation and zero water peak performance across all standard telecom wavelengths.
-
Water-Blocking System: Gel-filled loose tubes combined with dry water-blocking tape prevent moisture migration along the cable axis.

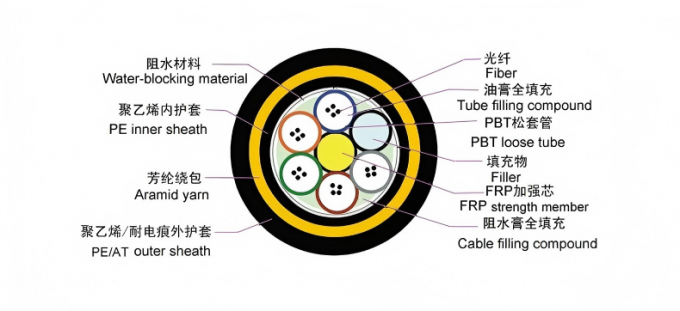

Technical Specifications (ADSS-48B1-100M-DJ)
| Cable Characteristic | Technical Specification Details |
| Model Type | ADSS (Double Jacket / Double Sheath) |
| Fiber Count | 48 Cores |
| Fiber Specifications | Singlemode G.652.D (Loose Tube Design) |
| Central Strength Member | FRP (Fiber Reinforced Plastic) |
| Tensile Strength Element | High-Modulus Aramid Yarn (Kevlar) |
| Inner Jacket Material | HDPE / MDPE (Black) |
| Outer Jacket Material | UV-Resistant PE (Tracking-resistant AT option available) |
| Target Span Distance | 100 Meters |
| Nominal Outer Diameter | Approx. 11.5 mm – 13.5 mm |
| Max Allowable Tension (MAT) | 1500 N – 2500 N (Based on regional wind/ice loads) |
| Crush Resistance | Short term: 2200 N/100mm | Long term: 1100 N/100mm |
| Operating Temperature | -40°C to +70°C |
Primary Application Scenarios
The double sheath ADSS 100m span cable is widely used in:
-
High-Voltage Power Corridors: Safe co-location on power distribution poles alongside high-voltage electrical lines.
-
FTTH Aerial Rollouts: Connecting main distribution hubs across urban or rural utility poles with standard 100-meter spacing.
-
Inter-Building Campus Links: Perfect for university or industrial park networks requiring durable, self-supporting overhead fiber links.
-
Heavy-Weather Corridors: The double-jacket structure provides necessary defense in areas prone to seasonal high winds or bird damage.
| Fiber Type | G652D |
| Fiber Count | 48 Cores |
| Jacket Material | PE |
| Packing | 2-4km/wooden Drum |
| Operating Temperature | -40°c +70°c |
| Span | 100M |
| Strength Member | FRP+Kevlar Aramid Yarn |
| Oem | YES |
| Structure | Stranded Loose Tube |
